Description
- Stable Dual-Antenna Reception: Dual 2.8dBi antennas provide wider reception coverage and help maintain a stable digital FPV video link.
- Smooth 1080p/120fps Video: Enjoy Full HD video at up to 1080p/120fps for sharp detail and smooth motion during fast-paced action. Multiple video modes let you choose the right settings for your FPV setup.

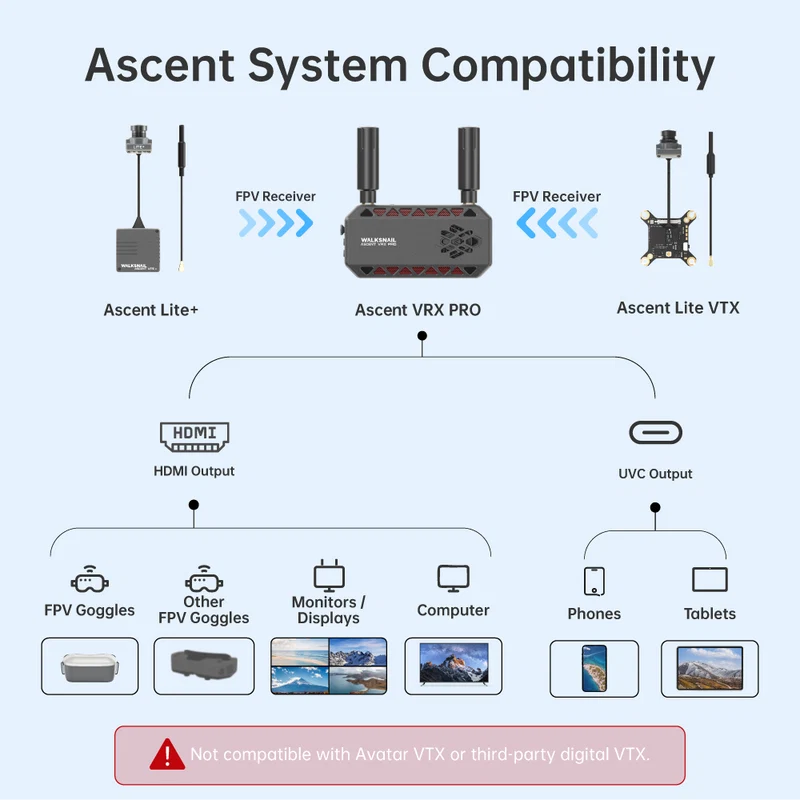

- HDMI & UVC Video Output: Connect via HDMI to compatible FPV goggles, monitors, or TVs, while UVC output enables simultaneous viewing on compatible smartphones, tablets, and computers.
- microSD and OSD Recording: Record HD FPV video directly to a microSD card with support for up to 256GB. On-screen menu adjustments can also be captured for tutorials, setup sharing, and troubleshooting.

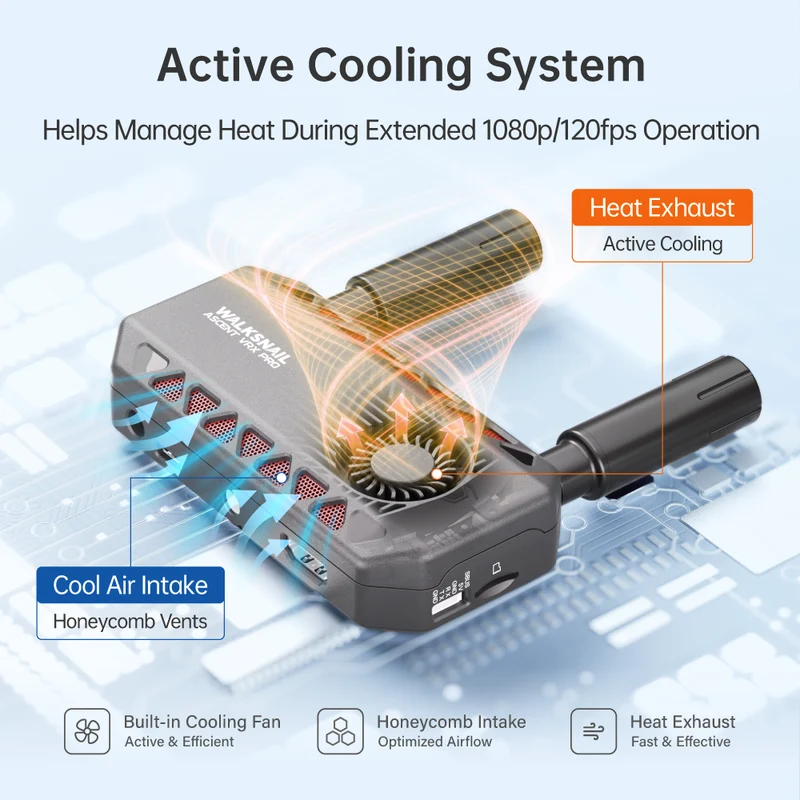

- Active Cooling, Portable Design: The built-in fan and optimized airflow help maintain stable operating temperatures during extended use. Its compact design fits easily into a backpack or gear bag for track days, field sessions, and FPV adventures.
- Built for Multiple FPV Platforms: Use the receiver with RC cars, FPV drones, and fixed-wing aircraft for racing, exploration, aerial viewing, and custom RC setups.
Specifications.
- Name Ascent VRX Pro
- Communication Frequency 5.725-5.829 GHz
- Transmitter Power(EIRP) FCC/SRRC:<30dBm, CE:<14dBm
- l/O Interfaces HDMl, Micro SD Card, DC5.5*2.1mm SH1.0*6PIN, Type-C
- HDMI Out 1080p/50fps, 1080p/60fps, 1080p/100fps, 1080p/120fps,720p/50fps,720p/60fps, 720p/100fps, 720p/120fps
- Power Input 7.4-25.2V
- SD Card Support Micro SD 256G
- System Ascent HD system
- Bandwidth 5MHz / 10MHz / 20MHz / Auto
- Menu OSD recording Support
- Recording File System exFAT
- Recording Format MP4 (H.264)
- Weight 140g
- Dimension 114.5*64*24mm (Without Antenna)
- Antenna Name Red Bird Pro
- Antenna Polarization LHCP
- Antenna Bandwidth 4.9-7.0 GHz
- Antenna Average Gain 2.8dBi
- Connector RP - SMAx2
- Dimension 56.3mm*D16.5mm
- Weight 7g
