Description
- Ultralight 2.75g Digital VTX: Weighing just 2.75g without the metal cover, this compact VTX delivers up to 500mW of power while keeping your FPV build light and agile.
- Built-In Live Audio: The built-in microphone captures motor and ambient sounds and transmits them in real time for a more immersive FPV experience.
- HD 1080p/120fps Video: Enjoy 1080p video at up to 120fps with 35ms latency. The 147° wide-angle 16:9 view delivers an immersive perspective for racing and freestyle.
- Extended-Range Smart Transmission: Transmit HD video up to 8km with automatic frequency hopping to reduce interference and maintain a stable video feed.

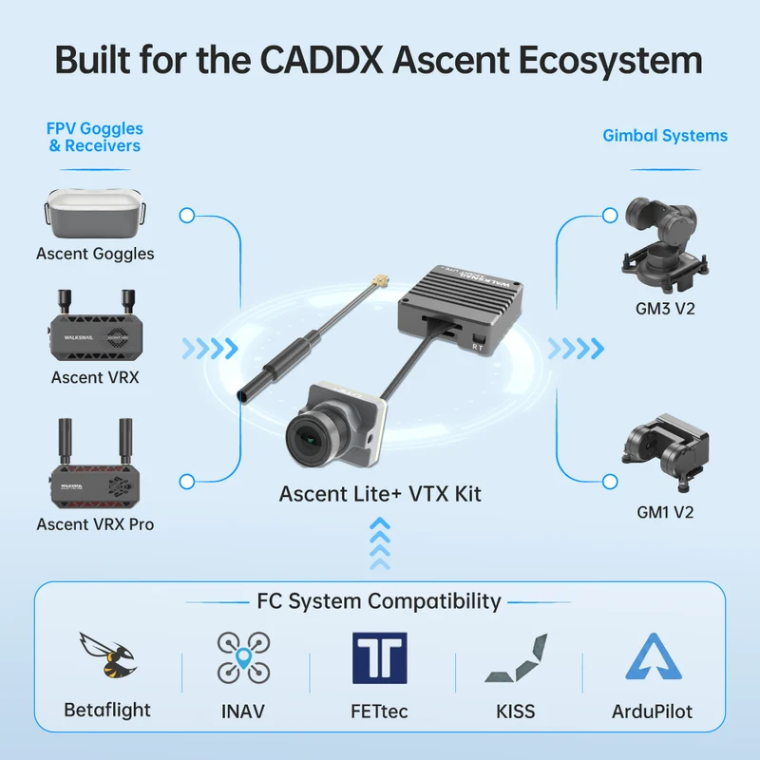

- Natural Head Tracking: Pair with Ascent Goggles and GM1 V2 or GM3 V2 for immersive, head-controlled camera movement.
- Wide Compatibility: Compatible with Betaflight, INAV, FETtec, KISS, and ArduPilot. Pair it with the Ascent VRX for HDMI output to compatible FPV goggles, monitors, or TVs.
Specifications.

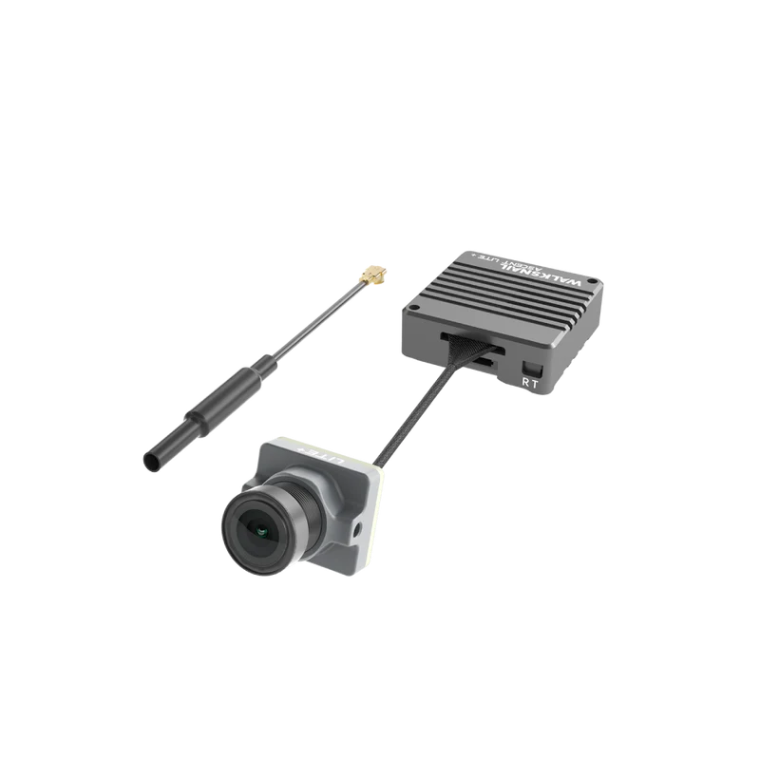

- Name Ascent Lite+ VTX
- Communication Frequency 5.730-5.815 GHz
- Transmit Power (EIRP) FCC/SRRC:≤27dBm; CE:＜14dBm
- I/O Interface JST1.0*4 (Power cord); HSG0.8*5 (USB)
- Channels 3
- Wide Voltage Input 3V~12.6V
- Supported FC Systems Betaflight; Inav; Fettec; Kiss; ArduPilot
- Bitrate MAX 25mbps
- OSD Canvas mode
- MIC Recording Support
- End-to-End Latency Average latency 35ms
- Antenna 1 (Ipex-1)
- Operating Bandwidth 5M/ 10M/ 20M/ Auto
- Image Sensor 1/2.8 inch
- Resolution 1080P/ 120fps, 1080P/ 100fps, 1080P/ 60fps, 720P/ 120fps, 720P/ 100fps, 720P/ 60fps
- Ratio 16/ 9
- MIC Lens Built-in Mic
- Mounting Hole 20*20mm(M2)
- Weight 10.5g
- Dimensions Camera: 12*14*15.8mm; VTX: 23.5*23.5*8mm
