MATEK F405-WMN FLIGHT CONTROLLER

MatekSKU: F405-WMN

Price:
Sale price$70

Shipping calculated at checkout

Stock:
In stock (3 units), ready to be shipped

Description

MATEK F405-WMN FLIGHT CONTROLLER

Looking to buy a MATEK F405-WMN FLIGHT CONTROLLER in Australia? You've come to the right place. Any questions? please live chat us, we're here to help!

Check out our great range of Matek products here

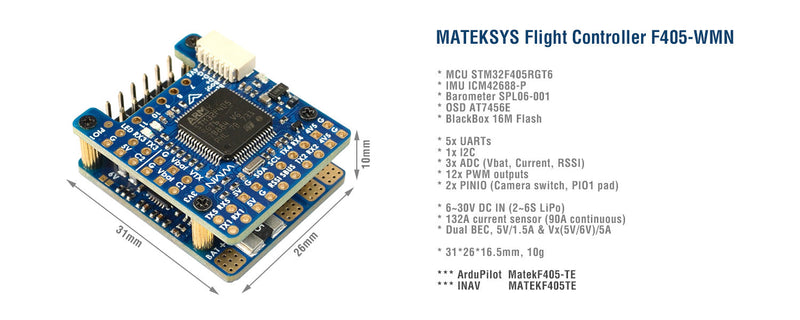

FC Specifications

  • MCU: STM32F405RGT6, 168MHz , 1MB Flash
  • IMU: ICM42688-P
  • Baro: SPL06-001
  • OSD: AT7456E
  • Blackbox: 16M Flash
  • 5x UARTs,  1x Softserial_Tx option(INAV)
  • 12x PWM outputs
  • 1x I2C
  • 3x ADC (VBAT, Current, RSSI)
  • 1x spare PINIO
  • USB/Beep Extender with Type-C(USB2.0)
  • Built in inverter on UART2-RX for SBUS input
  • Switchable Dual Camera Inputs

Power

  • 6~30V DC IN (2~6S LiPo)
  • 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
  • PDB/Current sense resistor: 90A continuous, 132A burst.
  • BEC 5V 1.5A for FC & Peripherals
  • BEC Vx 5A for servos, 5V/ 6V option
  • Vbat for VTX and camera
  • LDO 3.3V 200mA
  • Battery Voltage Sensor: 1k:20k

FC Firmware

  • ArduPilot: MatekF405-TE
  • INAV: MATEKF405TE (INAV 5.0 or newer)

Physical

  • Dimensions: 31 x 26 x 16.5 mm
  • Mounting: 22 x 22mm, Φ2mm
  • Weight: 10g

Including

  • 1x F405-WMN
  • 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
  • Dupont 2.54 pins  (Board is shipped unsoldered)

F405-WMN Quick Start Guide  PDF
