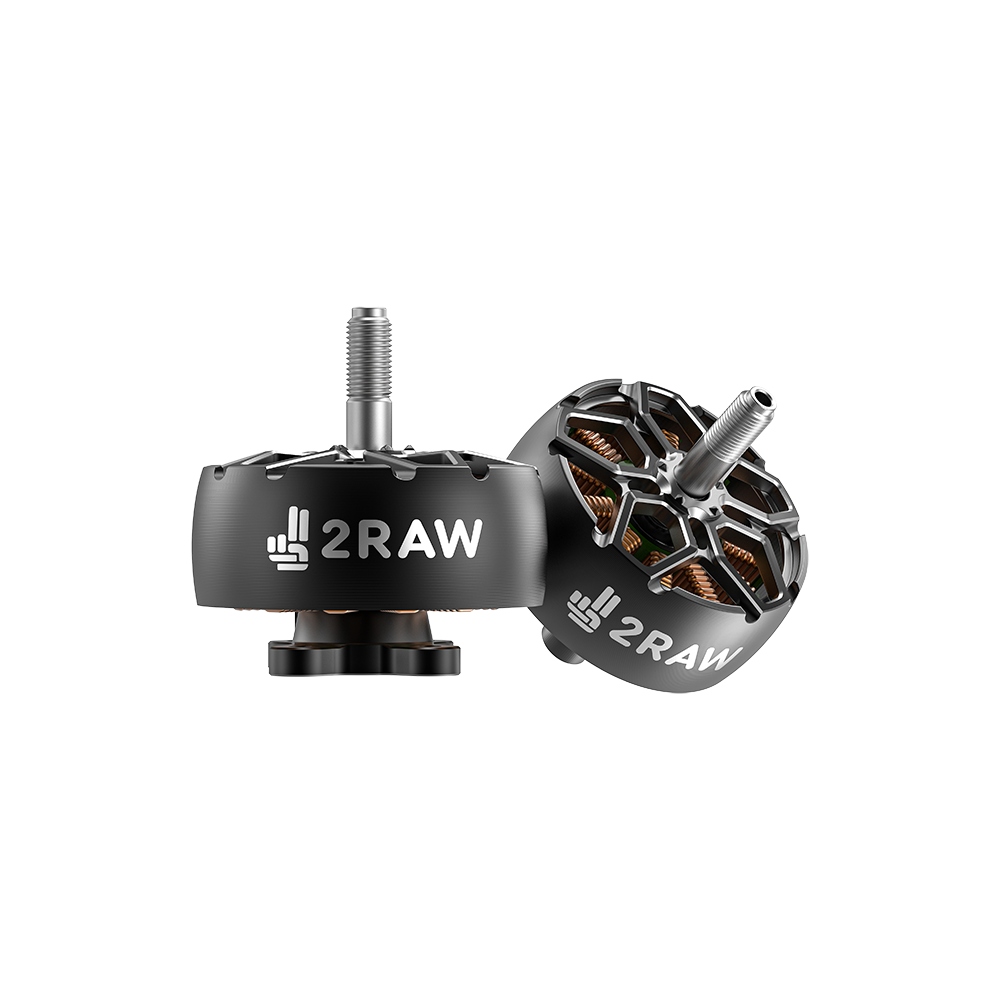

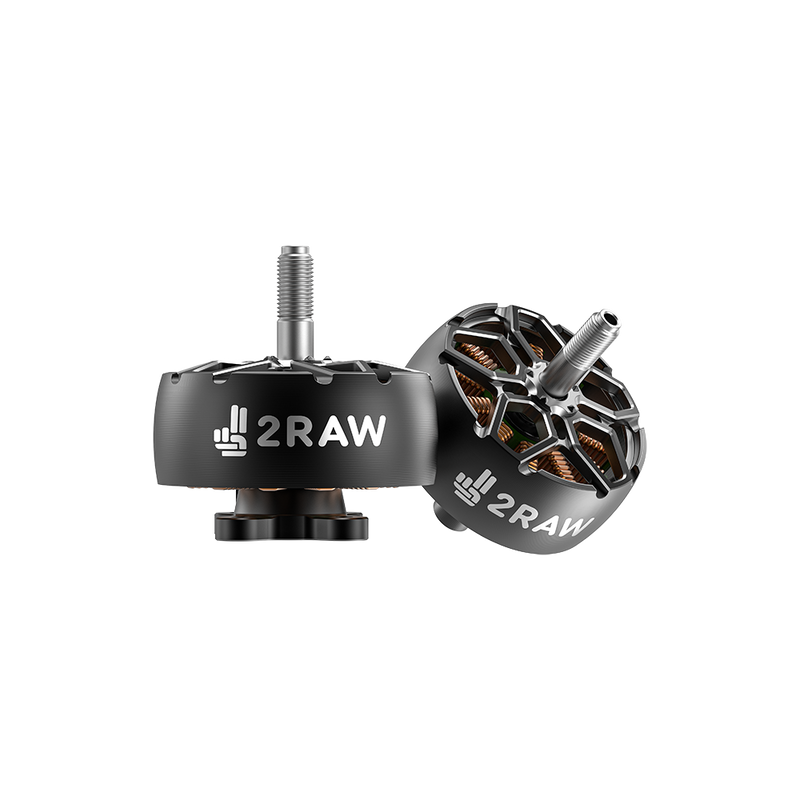

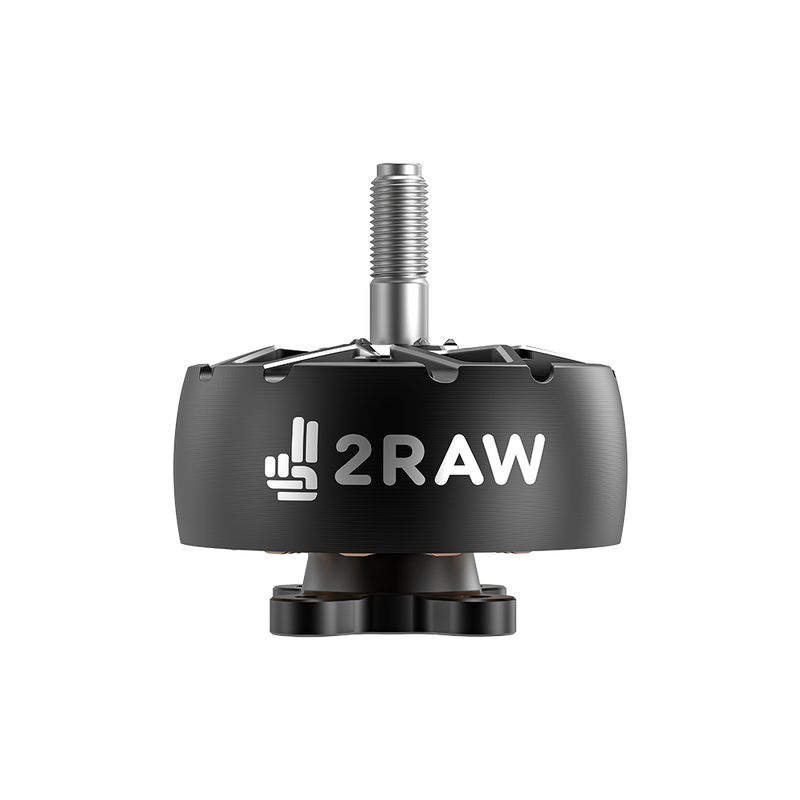

iFlight Helion 10 3110 Motor

iFlightSKU: OM15316

Sale price$55

Shipping calculated at checkout

Contact Us


Our XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings coupled with a higher grade titanium alloy shaft? We've been copied and compared all these years, but now it's time to set a new standard again! We're finally ready to announce our predecessor the XING2!

The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to it's translation delay of it braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!

Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!

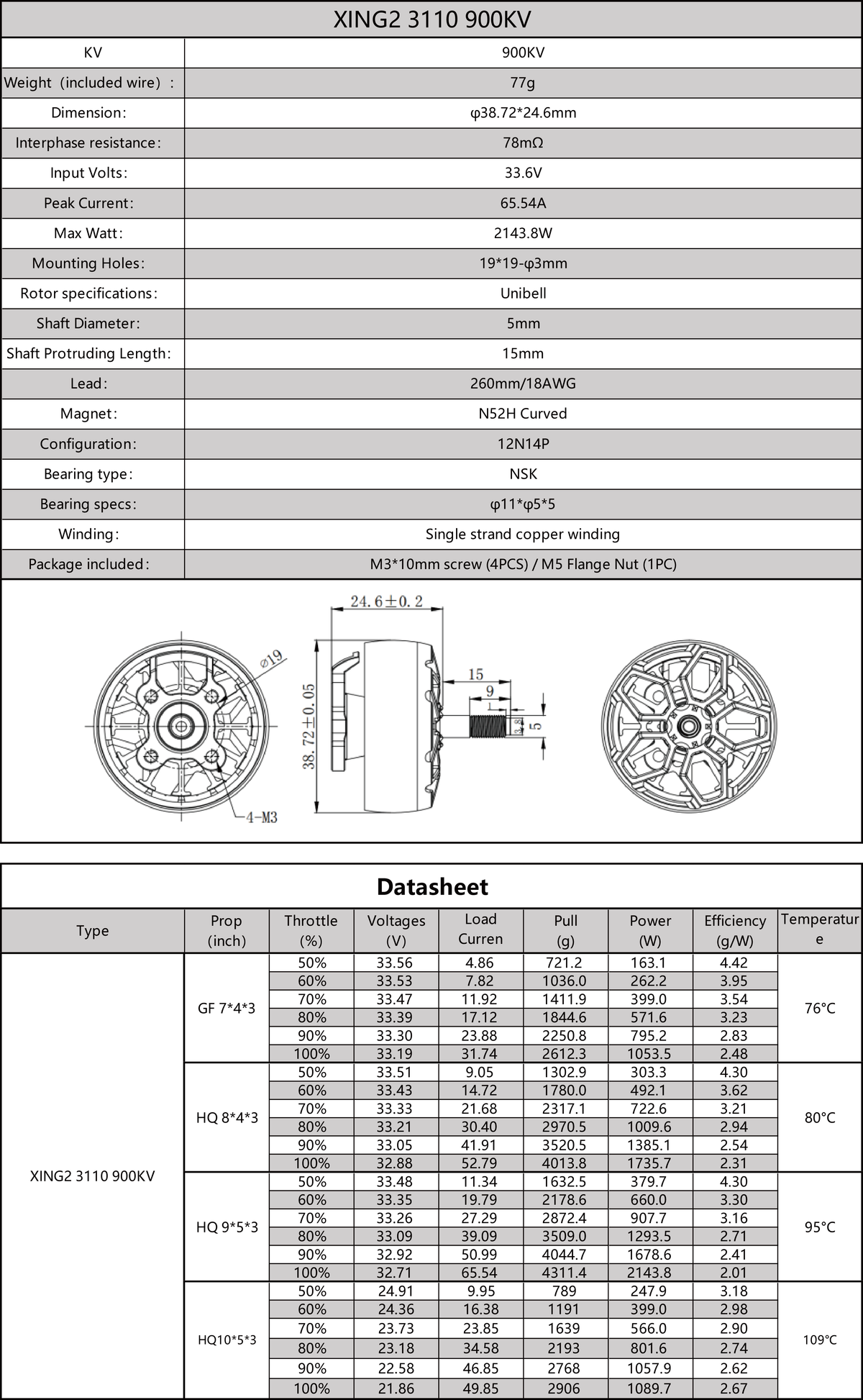

  • KV: 900KV
  • Weight(included wire): 77g
  • Dimension: φ38.72*24.6mm
  • Interphase Resistance: 78mΩ
  • Input Volts: 33.6V
  • Peak Current: 65.54A
  • Max Watt: 2143.8W
  • Mounting Holes: 19*19 φ3mm
  • Rotor Specifications: Unibell
  • Shaft Diameter: 5mm
  • Shaft Protruding Length: 15mm
  • Lead: 260mm/18AWG
  • Magnet: N52H Curved
  • Configuration: 12N14P
  • Bearing Type: NSK
  • Bearing Specification: φ11*φ5*5
  • Winding: Single Strand copper winding
Packing List
  • 1 x Helion 10 3110 Motor
  • 4 x M3x10 screws
  • 1 x M5 Flange Nut
