Description
If you ever thought about trying a VTOL but would prefer to start with a normal plane first before moving on then this kit is for you!
You can start out by building and flying the T2 Cruza and when you are ready to move up to a VTOL then just do the conversion.
This kit includes the following:
- Hee Wing T2 Cruza-1.2M Wingspan PNP
- Hee Wing T2 Cruza VTOL Conversion Kit
- Hee Wing T2 FX-405 VTOL Flight Controller with PMU and GPS Compass

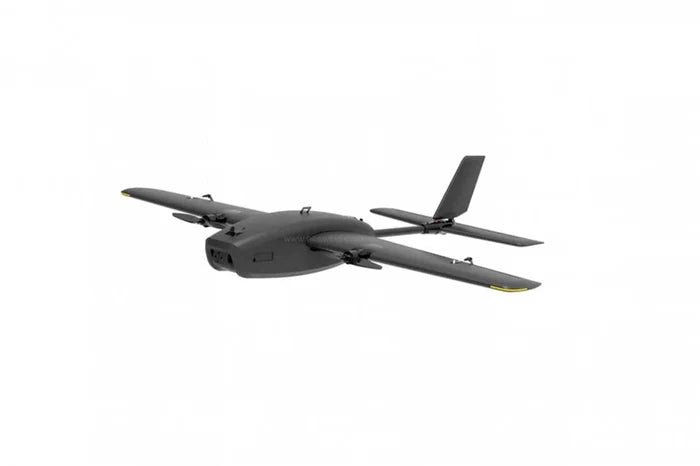

Hee Wing T2 Cruza-1.2M Wingspan PNP
The Heewing T2 Cruza FPV RC Plane delivers an exceptional flying experience! With its impressive 1200mm wingspan and dual motor EPP wing, it boasts a fully modular design that facilitates effortless disassembly and assembly, making it a breeze to transport. On the inside, it offers generous room for electronics and includes quick release with even more pins for added customization options.
What's New?
- Fully modular for quick assembly and disassembly, ease of transportation
- Implementation of Quick Release All Moving Rudder (easily detachable, just a press of a button or click)
- Quick release Elevator
- Quick release Tail boom (built-in connector)
- Newly designed quick release for Main Wing
- Twin Main Spar
- Main Body Electronics Deck (helps with fuselage integrity)
- Electronics Bay in the Main Wing (for RX or VTX)
- Removable Front Nose with fan mounting spot for vtx cooling
- Built-in Split Flaps (servos not included) Kit Available here
- Mount for Landing gear and Float
Specification
- Wingspan : 1200mm
- Length : 1090mm
- Motor : 2216
- ESC : 6S 25A BLS
- Propeller : 8 inch
- Servo : GDW 031MG
- Material : EPP
- Recommended take-off weight : 1.5 to 2.5kg
- Recommended battery size : LiPo 6S 2000mAh - 20,000mAh ~
- Package size : 620 x 420 x 240mm
PNP Content
- Semi Pre-built T2 Cruza x1
- 2216 Motor x2
- Propeller x 2
- 6S 25A BLS ESC x 2
- Heewing 041S Metal Gear Servo x4
Requires your own/not included
- Radio - Minimum 4 channels.
- Receiver - Minimum 4 channels.
- Battery - LiPo 6S 2000mAh - 20,000mAh ~ *recommended
- Charger - supports 4-6S LiPo charging
Recommended Batteries (Li-Ion)

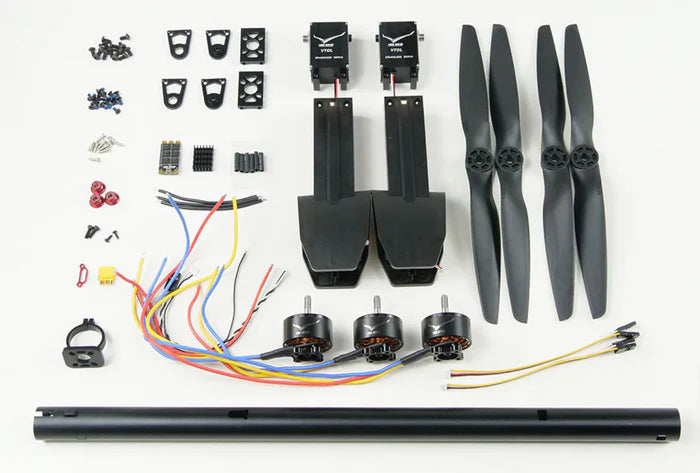

T2 Cruza VTOL Conversion Kit
A kit to convert your T2 Cruza to a VTOL.
Contains:
- Tilting servo X 2
- FX-2812-680KV motor X3
- Tilting servo mount X 1 pair
- FX-25A ESC X 1
- VTOL tail boom X 1
- Rear motor mount X 1
- FX-1060 propeller X 2 sets
- connector X 1 set
Hee Wing T2 FX-405 VTOL Flight Controller with PMU and GPS Compass
T2 FX-405 VTOL Flight Controller (with GPS & PMU)
Finally! The super small but powerful and VTOL capable flight controller from Heewing is available for purchase separately!
The PMU is specifically designed for T2, increasing the current to 100A+ and supporting up to 12A/53V maximum. Connecting cables increased to 5pcs totally!
Specification,
- STM32F405 Microcontroller
- ICM42688 IMU
- SLP06 barometer
- Dataflash
- MAX7456 OSD
- 4 UARTs
- 9 PWM outputs
- FC Input Voltage : 5V
- PMU Input Voltage : 14.8V to 44.4V
- PMU Rated current: 0~100A
- FC Dimension : 44.3mm (L) x 34.4mm (W) x 13.7mm (H)
- FC Weight : 14.2gram (without PMU & wires)

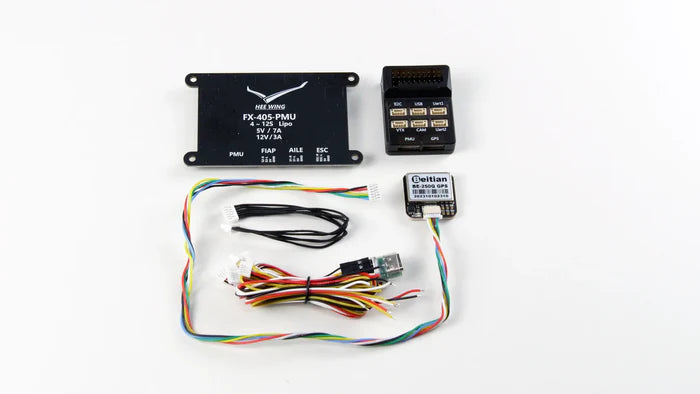

What's included,
- FX-405 Flight Controller
- 4-12S PMU
- BN-250Q GPS with compass
- USB Adapter
- Cables
Note
- comes pre-loaded with QLoiter/VTOL parameters for the T2 VTOL
- supports both Analog and Digital FPV
- supports SBUS, PPM, IBUS, ELRS, CRSF RC protocol
