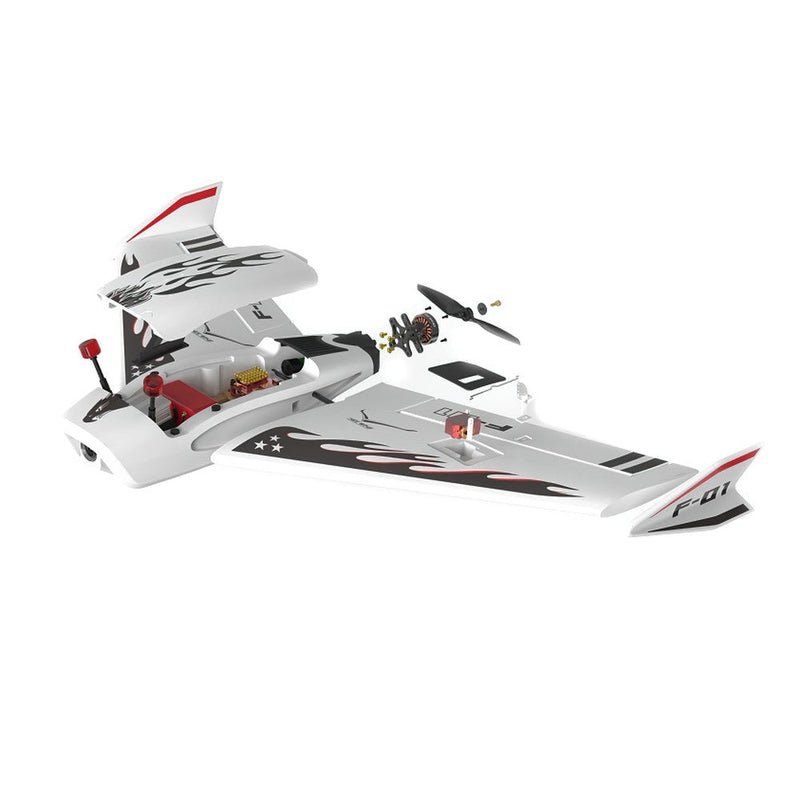

Hee Wing RC F-01 Ultra Delta Wing 690mm EPP - PNP ( Electronics not pre-installed)

Hee WingSKU: F01-PNP-P

Price:
Sale price$117

Shipping calculated at checkout

Stock:
In stock (4 units), ready to be shipped

Description

Introducing the new F01 - PNP(Bulk parts without assembly) with full PNP electrical components. Perfect for DIY enthusiasts who prefer a hands-on approach. Experience the convenience and satisfaction of building your own product.

The F01 - PNP offers more flexibility to customize your device layout according to your needs. Enjoy greater freedom in arranging your electronics with this product.


F01 is for the Speed Hunter! 😈 capable of 220km/h! Proper aerodynamic design with wind tunnel testing. Suitable for analog and digital FPV speed flying!



Features
  •  Detachable camera plug for FPV flying or 3rd person view flying
  •  Built in Carbon Fiber Rod in the main wing
  •  Large internal for electronics
  •  Hatch secured with 4 powerful magnets
  •  New wingtip design allows for vertical take off
  •  Supports horizontal and vertical battery mounting
  •  Lens protector provided to protect the FPV camera lens
  •  Mounting designed for Analog & DJI Digital Air Unit
Specifications
  • Wingspan : 690mm
  • Material : EPP / ABS / CF
  • Dimension : 415mm (L), 88mm(H)
  • Battery Space : 175 x 75 x 55mm
  • ESC Space : 70 x 38 x 20mm
  • Camera Space : 20 x 21 x 30mm
  • Lens protector dimension : Outer diameter 17.5mm, Inner diameter 14~15mm, Height 12mm
  • Lens Material : ABS
  • Weight : 150g
  • AUW : 350 - 850g
  • Min speed : < 27km/h
  • Max speed : > 220km/h
  • * when flying above 100km/h, install the camera plug to prevent air pressure from popping the hatch
  • Max flight time : > 70mins
  • Max flight distance : > 45km



What's included
  • 1x F01 KIT ( Electronics not pre-installed)
  • 1x Accessories bag with VTX mounts, battery strap & hardwares
  • 1x FX-2205 2350KV BL Motor
  • 1x FX-25A ESC, 5V 3A UBEC
  • 5x5E propeller
  • 2x HEE WING 041 12g digital metal gear servo & XT60 3.5 Battery Connector.


Requires your own/not included
  • Radio - Minimum 3 channels.
  • Receiver - Minimum 3 channels.
  • Battery : 3-4S 1500-2200mAh or 6S 1300-1550mAh
  • Charger : supports 3-4S or up to 6S charging

Recommended Batteries (Li-Ion)

Manual Available here
