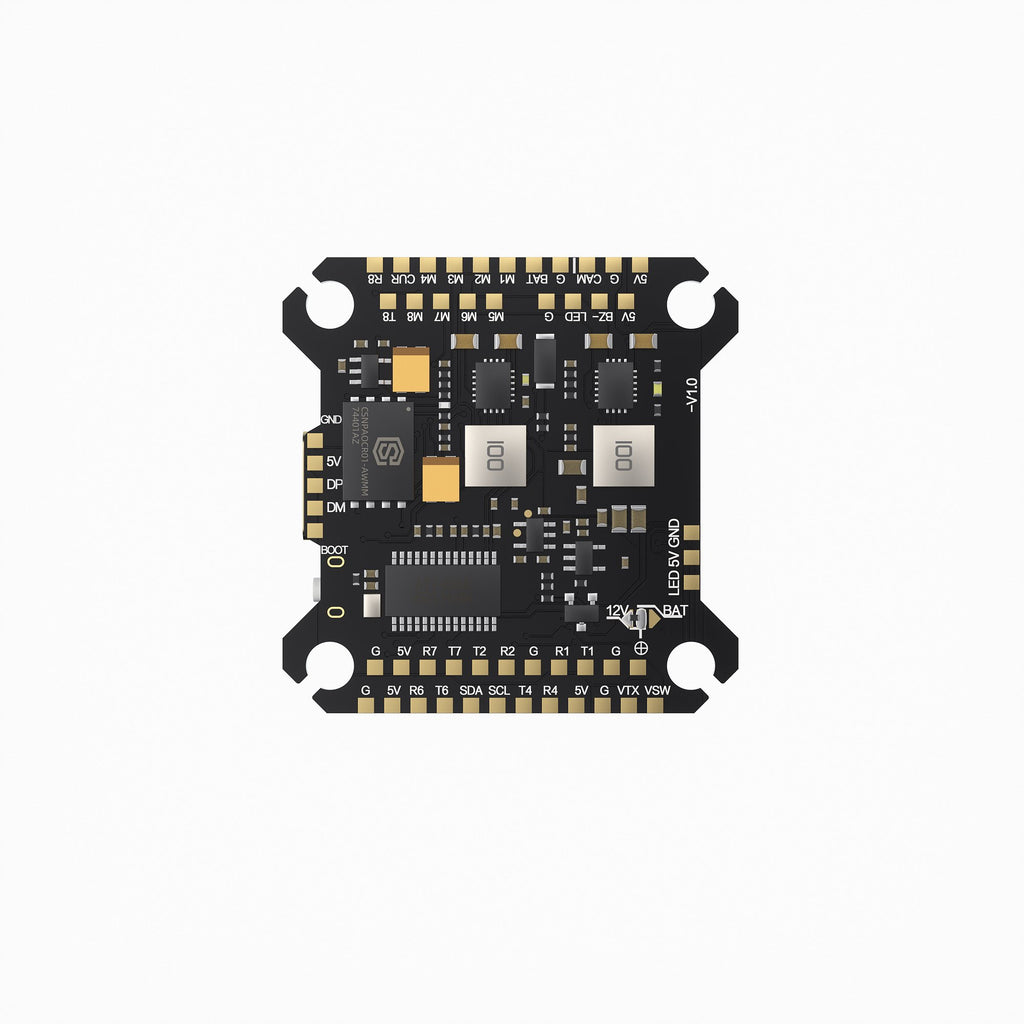

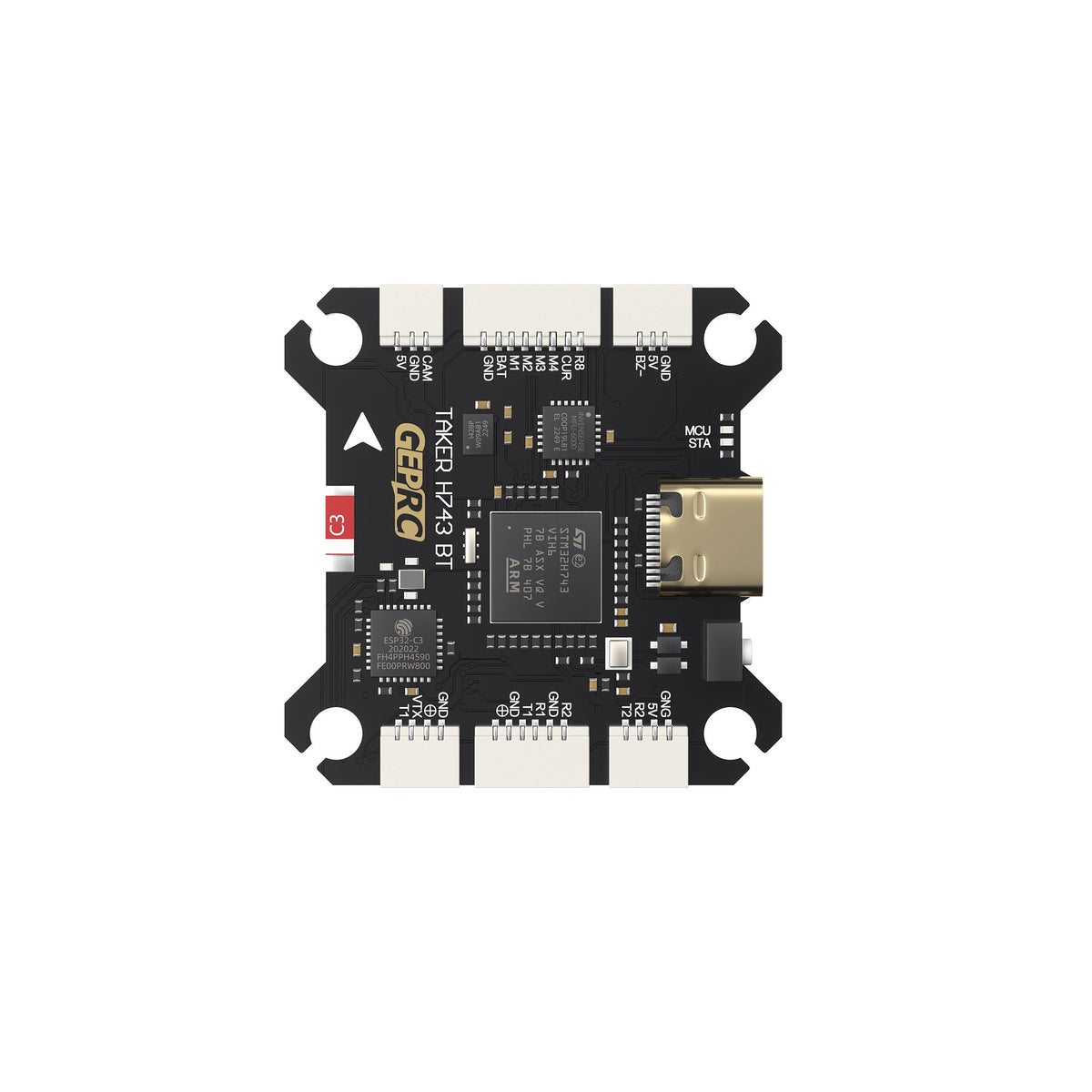

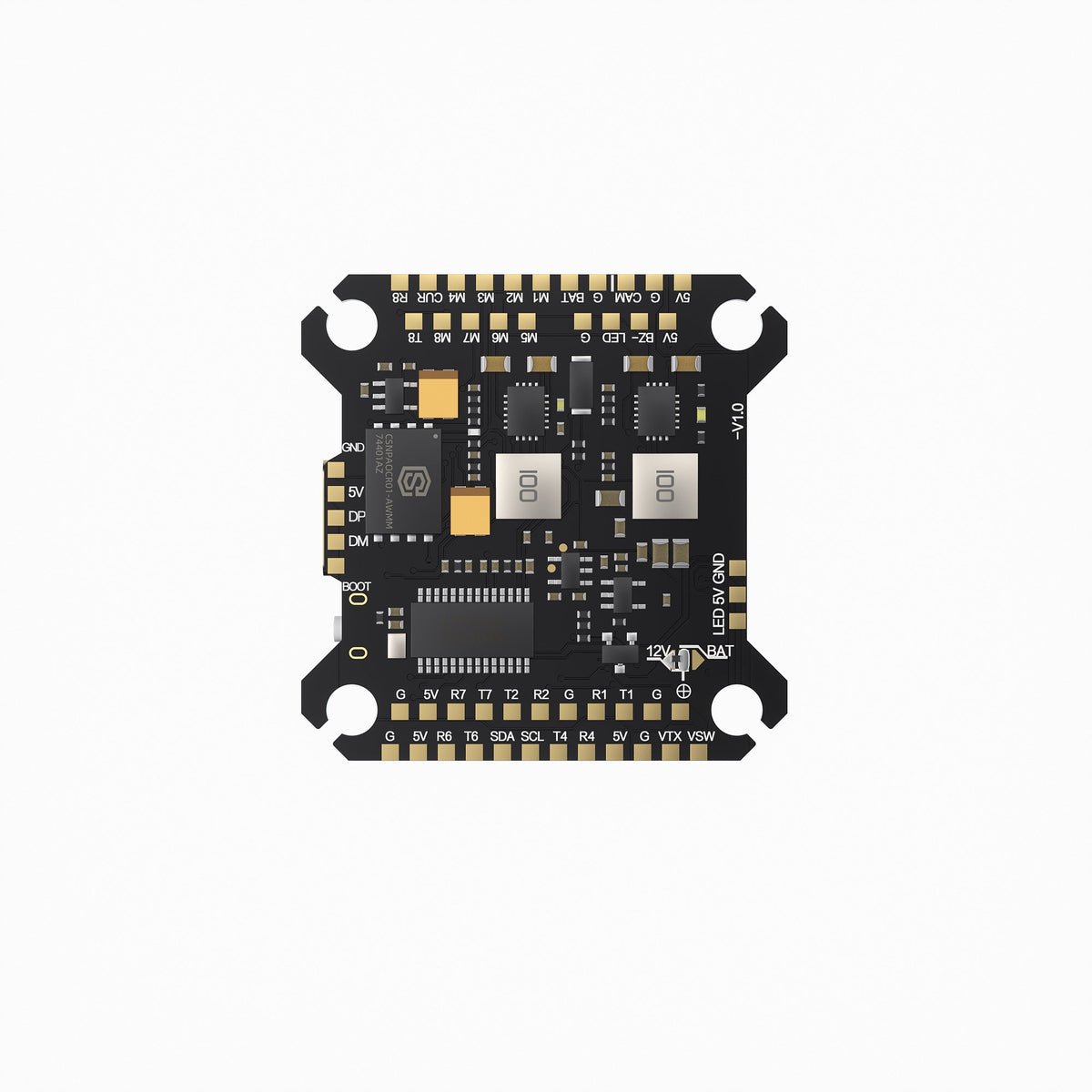

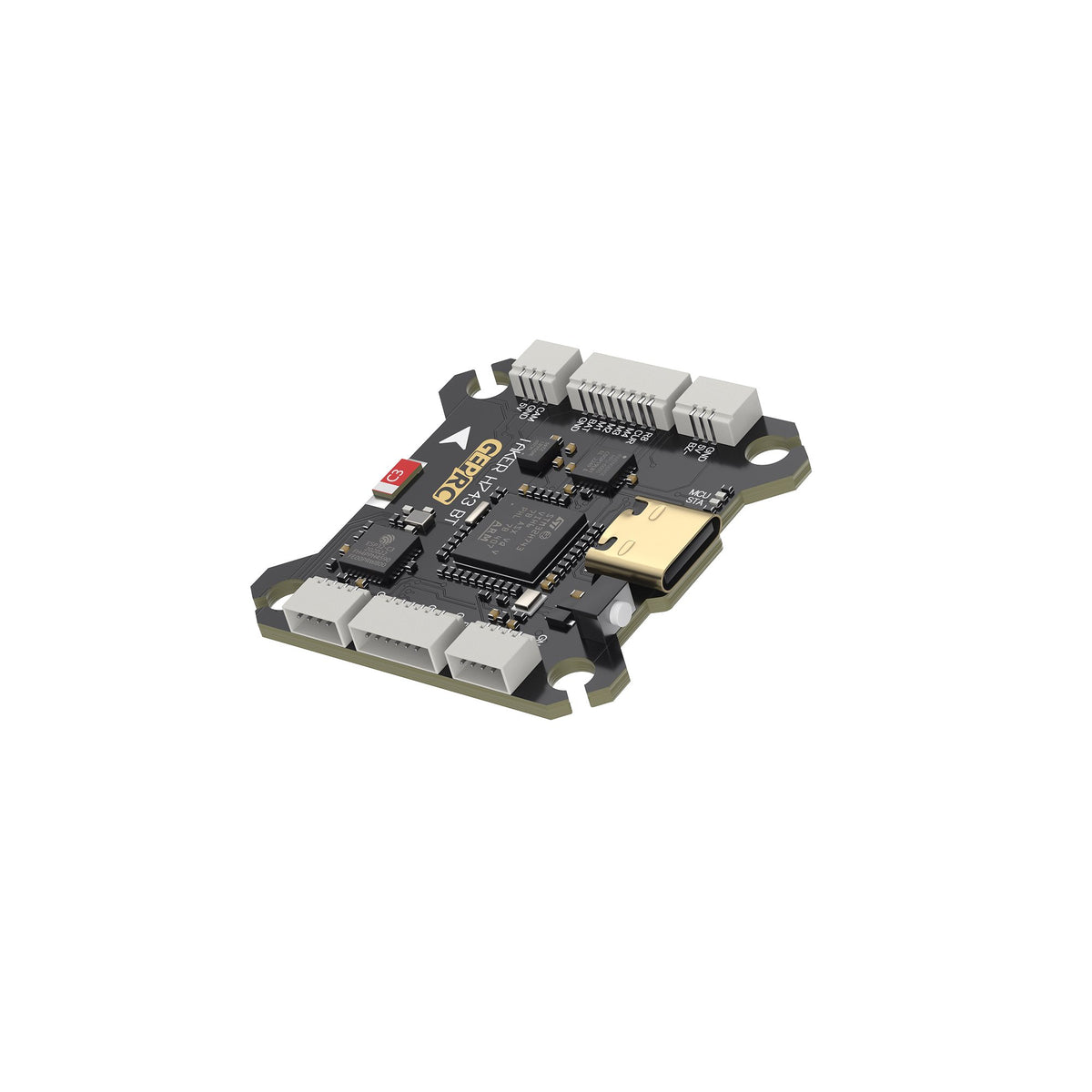

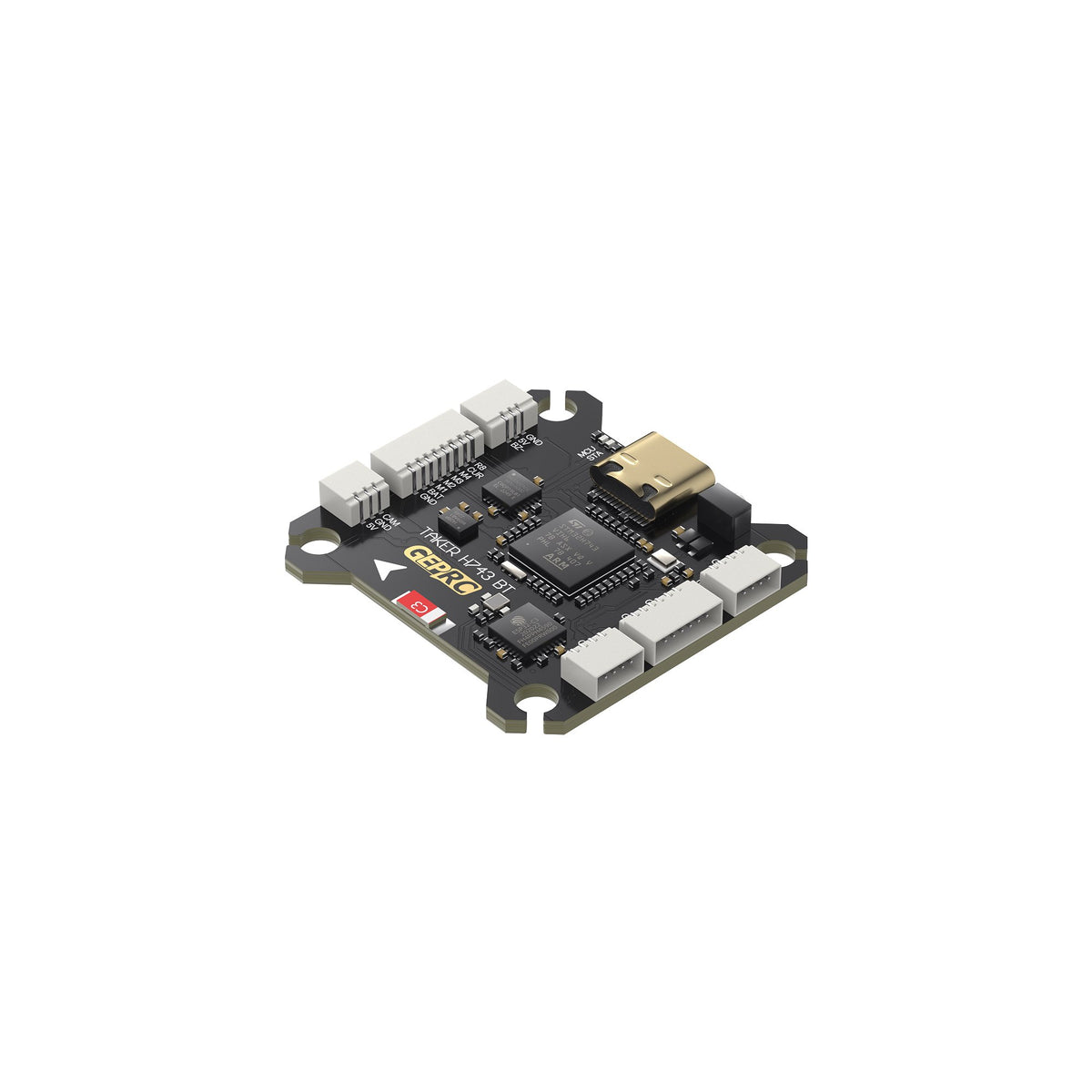

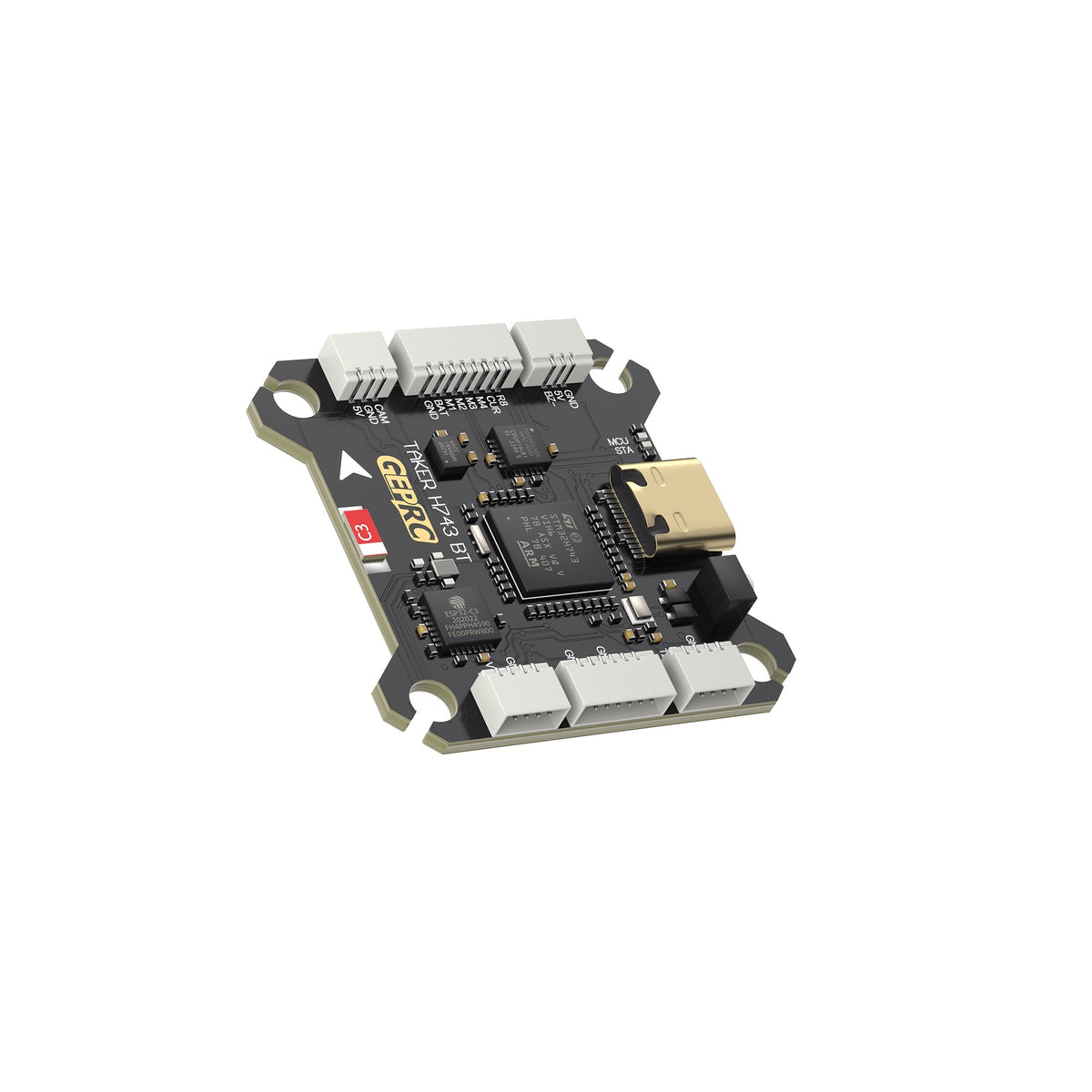

GEPRC TAKER H743 30x30 BT Flight Controller

GEPRCSKU: GP107606

Price:
Sale price$80

Shipping calculated at checkout

Stock:
In stock (5 units), ready to be shipped

Description

Features

  1. Adopts the high-performance STM32H743 as the main controller
  2. Equipped with MPU6000 and 42688-P dual gyroscopes
  3. 512M of black box storage
  4. Bluetooth parameter tuning
  5. Integrated LC filter
  6. Upgraded type-C USB interface
  7. Direct plug-in compatibility with DJI Air Unit
  8. Integrated Barometer
  9. Features 7 groups of UART
  10. 12V@2.5A + 5V@3A dual independent BEC
  11. Offers multiple firmware options

Specifications

  • MCU: STM32H743
  • IMU: MPU6000 + ICM42688-P(dual gyro)
  • Air Unit Connection: Directly plugs into DJI Air Unit
  • Black Box:512M onboard
  • Bluetooth: Supported
  • Barometer: Supported
  • USB Interface: Type-C
  • OSD: BetaFlight OSD w/ AT7456E chip
  • BEC Output: 5V@3A,12V@2.5A dual BEC
  • Firmware Target: GEPRC_TAKER_H743
  • Size: 38.5×38.5mm, mounting hole size 30.5×30.5mm
  • Input Voltage: 3-6S LiPo
  • UART Ports: 7 groups (UART3 fixed for Bluetooth)
  • Power Filtering: Integrated LC filter
  • Weight:8.4g

 Includes

  • 1 x FC board
  • 1 x O3 3-in-1 connection cable
  • 1 x FC adapter cable
  • 1 x sh1.0 4pin silicone cable
  • 1 x Camera connection cable
  • 1 x VTX connection cable
  • 1 x Buzzer connection cable
  • 4 x Silicone grommets
