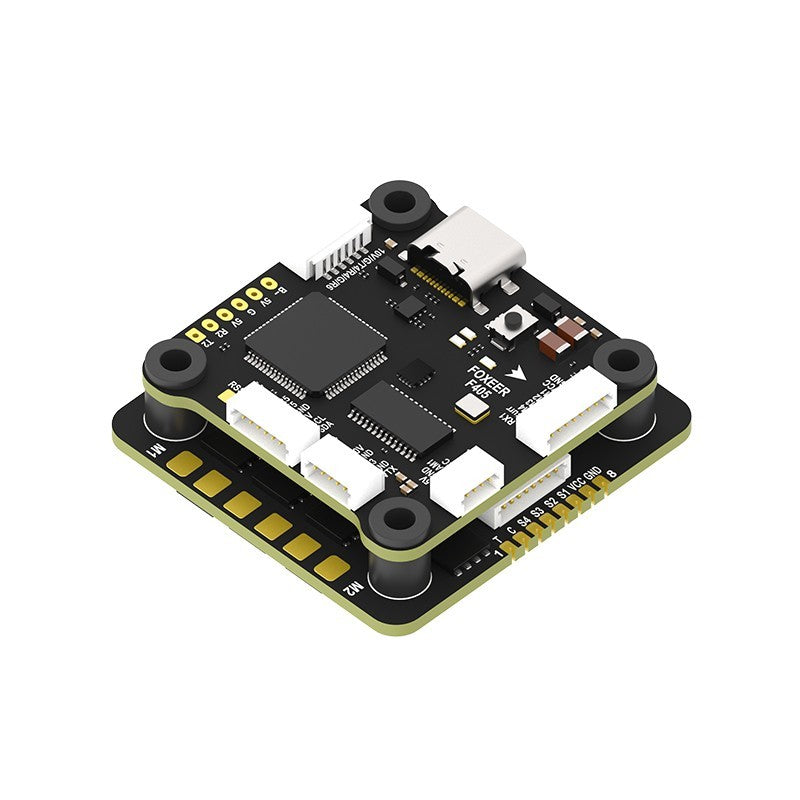

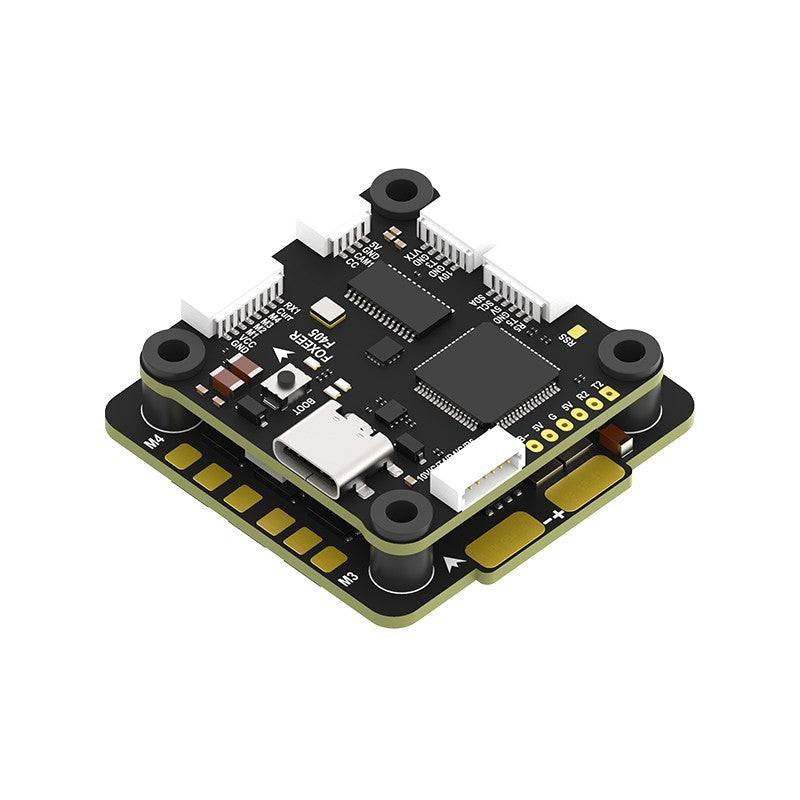

Foxeer F405 V2 FC And Reaper 55A ESC 8S Stack

FoxeerSKU: MR1836

Price:
Sale price$78

Shipping calculated at checkout

Stock:
In stock (10 units), ready to be shipped

Description

Specifications

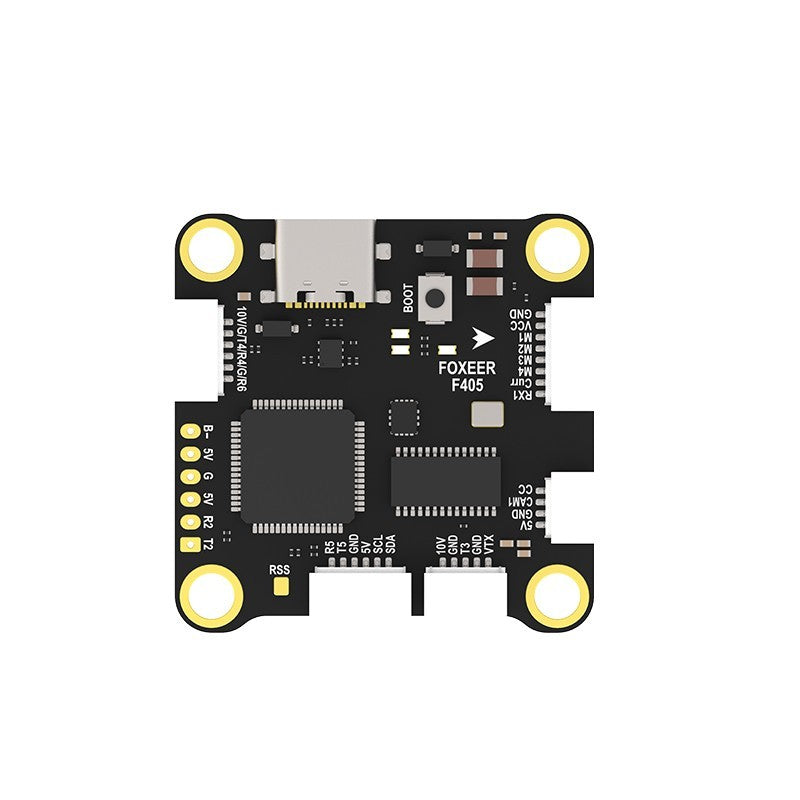

Foxeer F405 V2 Flight Controller
  • CPU STM32F405RGT6
  • Gyro ICM42688-P
  • Barometer DPS310
  • Power Supply 4~8S Lipo
  • BEC Output DC5V/3A; 10V/3A
  • OSD BF OSD
  • Black Box 64M Flash Memory
  • UART 6 Set
  • Connector DJI; GPS/Compass; 2 Camera Switch; VTX
  • ESC Telemetry RX1
  • X8 Supported
  • ADC X3
  • PWM 1CH
  • Buzzer YES
  • Smart Audio YES
  • LED 1 Set 2812 LED
  • USB Type-C
  • Firmware FOXEERF405V2(BetaFlight); F405V2(Ardupilot)
  • Size 37X37mm
  • Mounting Hole 30*30mm,Φ4mm
  • Weight(g) 8.4g
  • Working Temperature -20℃ ~ +55℃
  • Working Humidity 20~95%
  • Storage Temperature -20℃ ~ +70℃

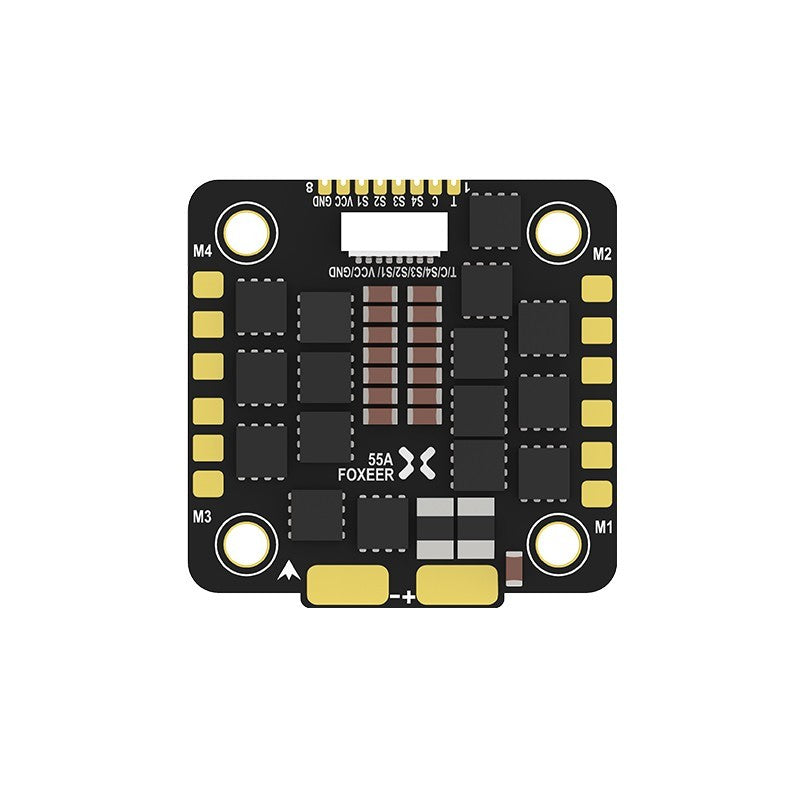

Foxeer Reaper 55A ESC
  • Firmware FOXEER_Reaper4IN1_F4_55A_128_Multi_32_9
  • Continuous /Burst Current 55A*4 / 80A*4
  • Input Voltage DC 9V~36V (3-8S Lipo)
  • BEC No
  • Telemetry Supported
  • ESC Programming BLHeli32
  • Current Scaling 70
  • Input Signal DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.
  • Working Temperature -20℃ ~ +55℃
  • Working Humidity 20~95%
  • Storage Temperature -20℃ ~ +70℃
  • Mounting Hole 30.5X30.5mm,Φ4mm/M3
  • Dimension 42.5x42x5.5mm
  • Weight 14.6g


Package contains.

  • 1 x FC
  • 1 x ESC
  • 8 x M3*8mm silicone grommets
  • 1 x capacitor
  • 5 x M3 nylon nuts
  • 1 x 120mm camera cable
  • 1 x 90mm DJI cable
  • 1 x 120mm GPS/Compass cable
  • 1 x FC-ESC cable
  • 1 x 90mm VTx cable
  • 1 x XT60 cable
