DQUAD LRX V3 5 INCH FREESTYLE FRAME KIT

DquadSKU: DQUADLRXV3

Price:
Sale price$83

Shipping calculated at checkout

Stock:
Sold out

Description

Are you looking to buy  DQUAD LRX V3 5 INCH FREESTYLE FRAME in Australia? You have come to the right place!

Why buy your Dquad products from NextFPV in Australia?

  • FREE standard shipping on all items over $119AUD (Australia only)
  • Official Retailer of Dquad products for Australia.
  • The largest range of Dquad frames, parts and accessories in Australia.

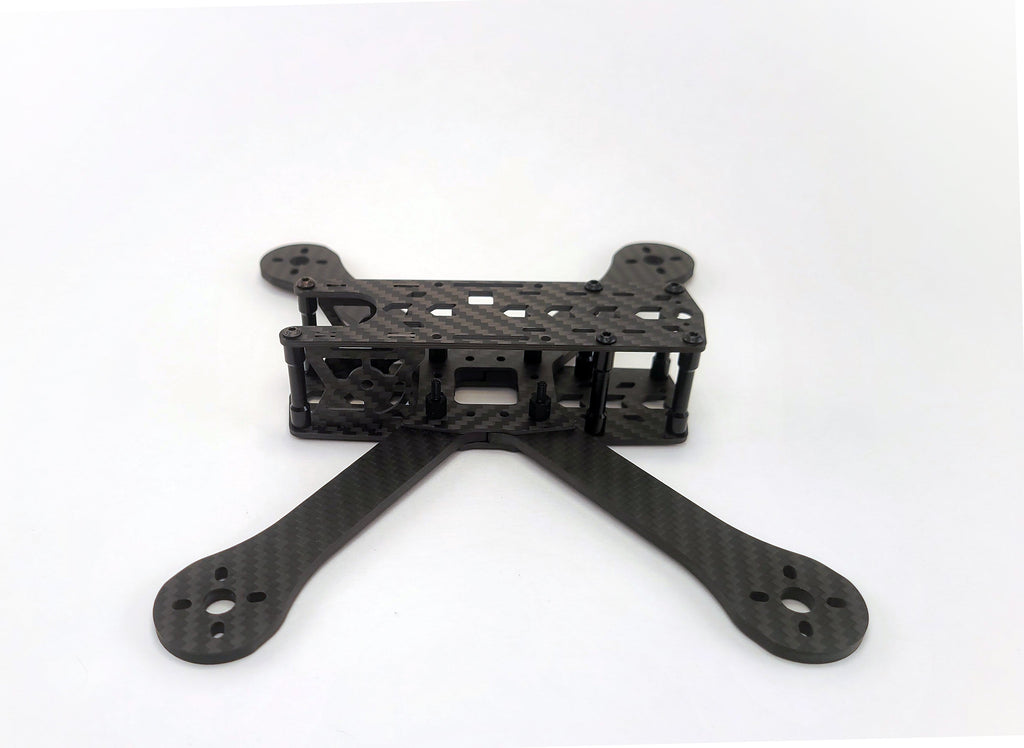

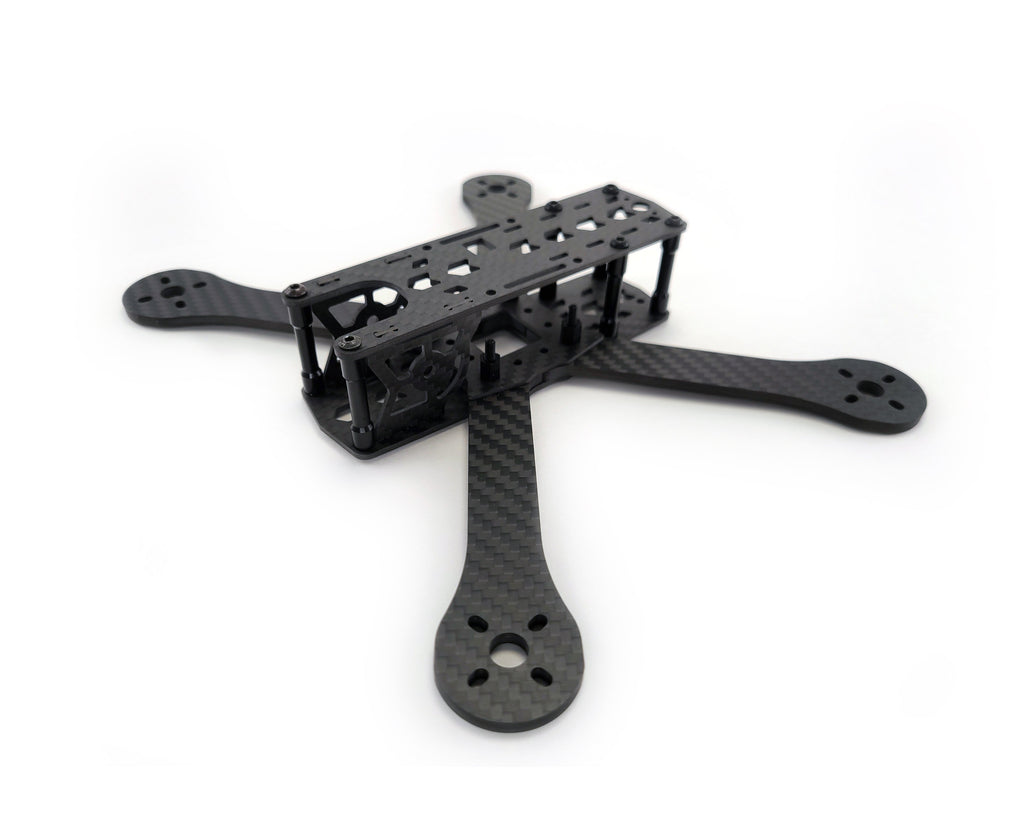

The LRX is our top mount freestyle frame designed for speed and agility. This very light strong frame with a short main body is still able to carry a lipo and HD camera on top. It is compact, agile and made from the highest quality carbon on the market today!

Check out all our Frames and the rest of our DQuad Products!


Key features

  • Armattan high-heat pressed 3k twill weave carbon fiber.
  • The LRX frame has four separate arms that lock together in a very strong center core.
  • This innovative design makes for a very strong, stiff and easy to tune frame that delivers
  • a very pleasurable flight experience.
  • V3 update
  • The bottom plate is beefed up to 3mm and we closed the center hole.
  • redesigned top plate with a longer lipo strap slot to accommodate lipos mounted
  • together with action cameras
  • new camera plates that offer plenty of camera mounting options.
  • new press nut squash plate with press nuts installed
Specifications
  • 210mm size 5” squashed X
  • Prop size 5-5.1”
  • Frame weight: 110 grams
  • Stack: 30x30 (20x20 with the LRX 20x20 or any 20x20 adapter)
  • Supported cameras: full size cameras, works great with foxeer mini falcore style
  • cameras with the included adapter. The 28mm wide camera plates offer many camera
  • mounting options
  • HD compatible: yes, with vista mount free 3d stl download.
Frame kit includes
  • 4x 4mm carbon fiber 5” arms
  • 2x 1.5mm carbon fiber camera plates
  • 1x 2mm carbon fiber top plate
  • 1x 3mm bottom plate
  • 1x squash plate press nuts installed
  • 4x m3x22 button head bolts
  • 8x m3x10mm button head bolts
  • 12x m3x6mm button head bolts
  • 6x m3x30mm black stepped standoffs
  • 12x m3 press nuts
  • 4x 4mm fc spacer
  • 4x dog bone foam landing pad
  • 1x xt60 connector
  • 1x dquad lipo strap
  • 1x lipo pad
  • 1x sticker

*Manufactured by Armattan Quads
