HDZero Freestyle V2 Kit

HDZeroSKU: HDZ3132

Price:
Sale price$187

Shipping calculated at checkout

Stock:
In stock (2 units), ready to be shipped

Description

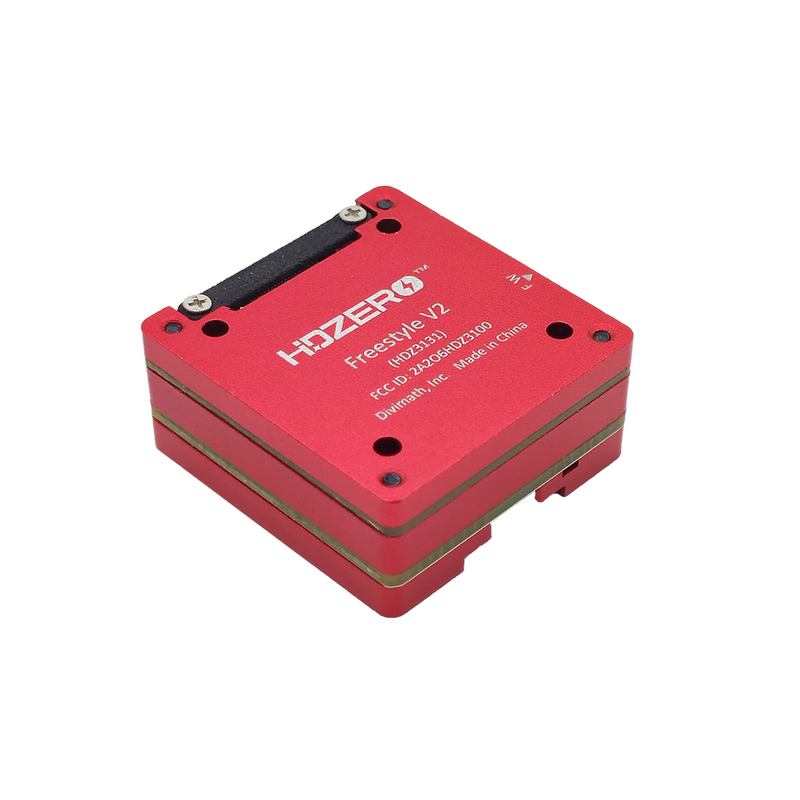

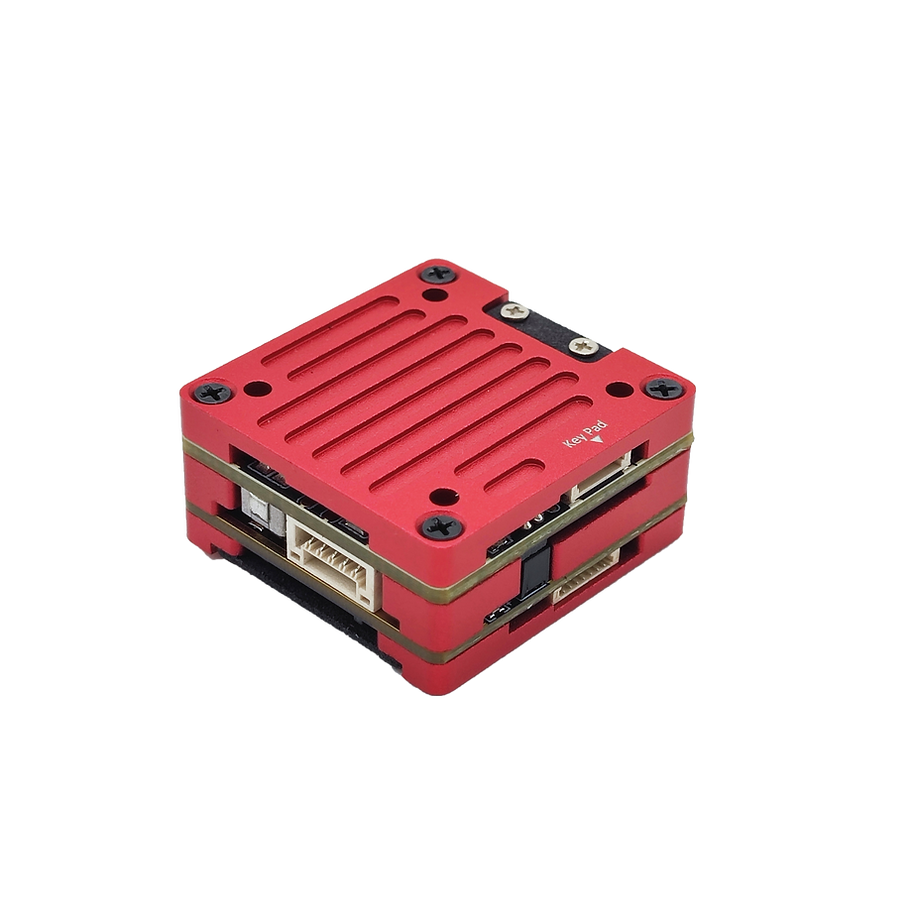

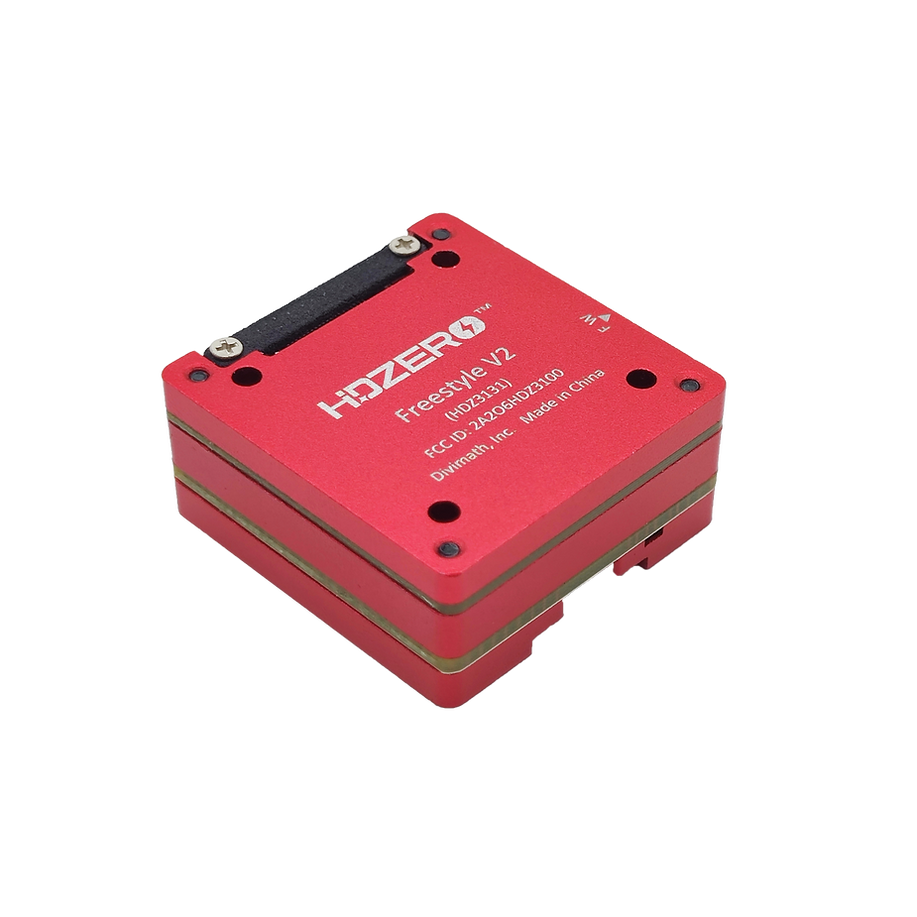

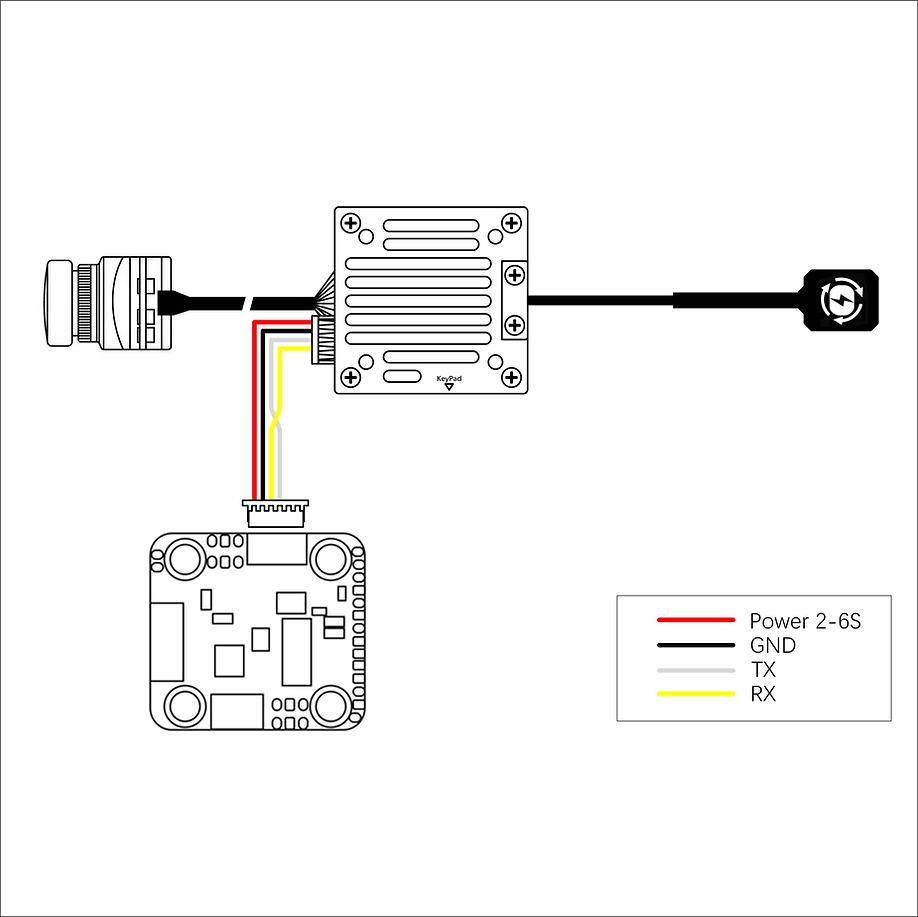

The HDZero Freestyle V2 VTX is our 2nd generation 5.8GHz digital video transmitter which can be fitted into most 3-5-inch HD drones. All sockets are well protected by the CNC case that provides durability, RF shielding and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The antenna and MIPI cable are secured by the included retention bar and screws.

The VTX supports 720p60 ,1080p30, 540p60 and 540p90 video modes.

The VTX is capable of maximum 1W RF output at R1 channel if unlocked with license or approval from the local authorities.

Specifications
  • Manufacturer Divimath, Inc
  • Model HDZero Freestyle V2 VTX
  • Weight 22.3 g
  • Dimensions 29x30x14mm
  • Operating Frequency 5.725-5.850GHz
  • Transmitter Power 25mW,200mW
  • Mounting Pattern 20x20mm M2 holes
  • Antenna Interface Secured U.FL
  • Video In Secured MIPI
  • SmartAudio Yes
  • MSP Canvas Mode Yes
  • Input Power 7-25V
  • Operating Temperature 32˚F-104 ˚F (0˚-40˚C)
  • Power Consumption 6-15W

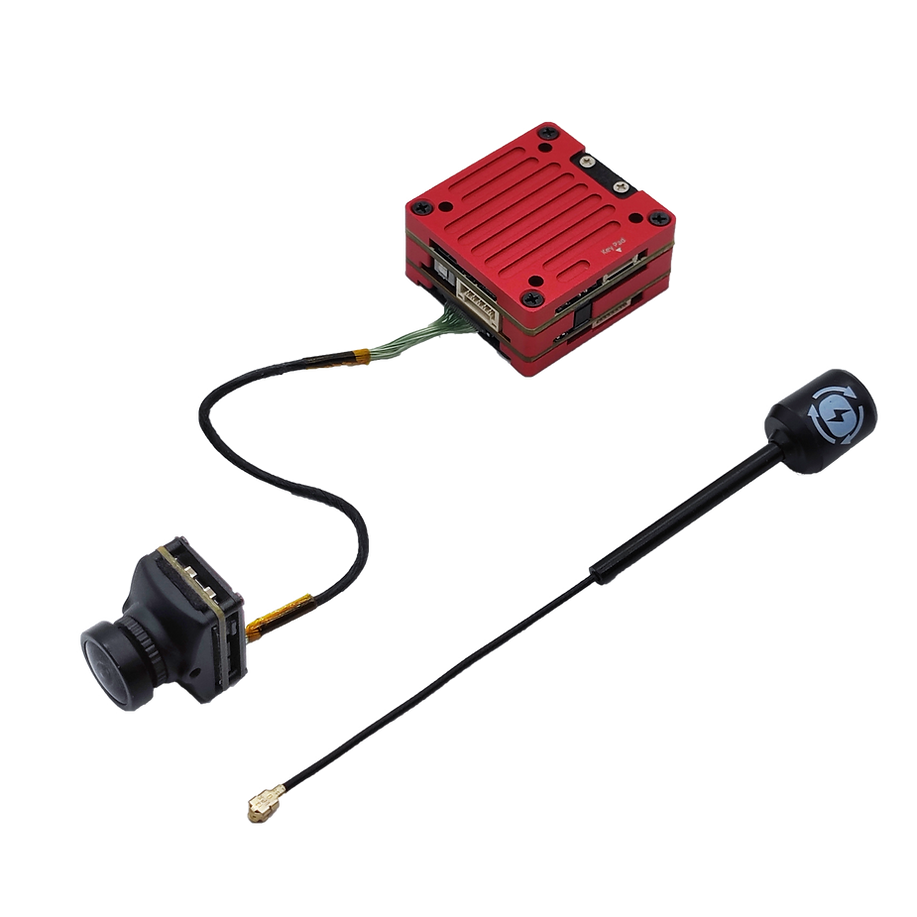

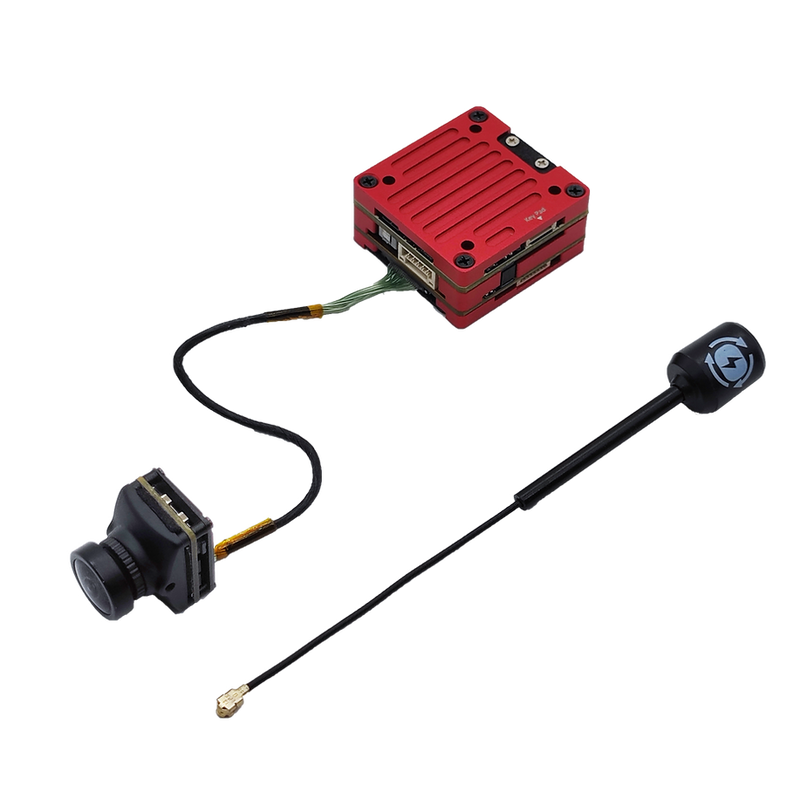

Includes

  • 1x Freestyle V2 VTX
  • 1x Nano 90 Camera (with 19 x 19 Mount)
  • 1x HDZero RHCP antenna
  • 1x 120mm Mipi Cable
  • 1x Power Cable
  • 1x SA Cable
  • 1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
  • 1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
  • 1x Double Sided Tape (29 x 30 x 1mm )
