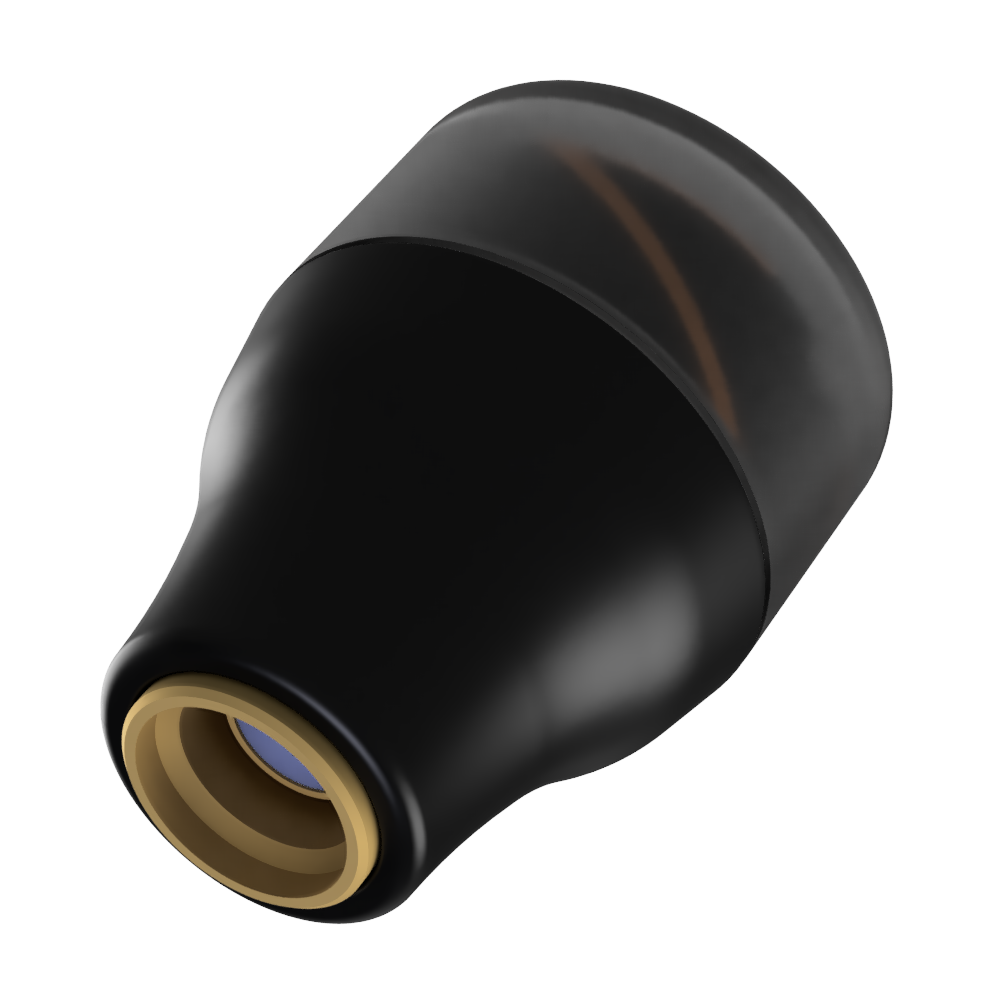

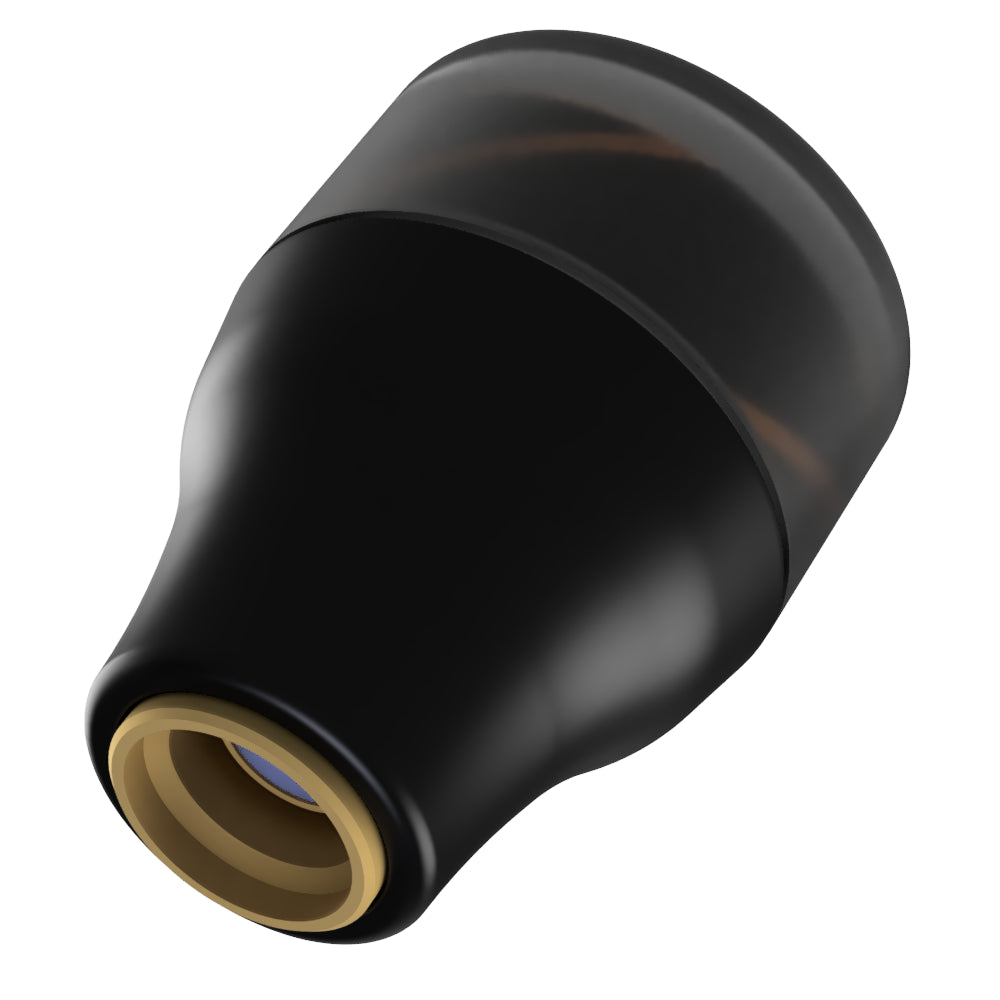

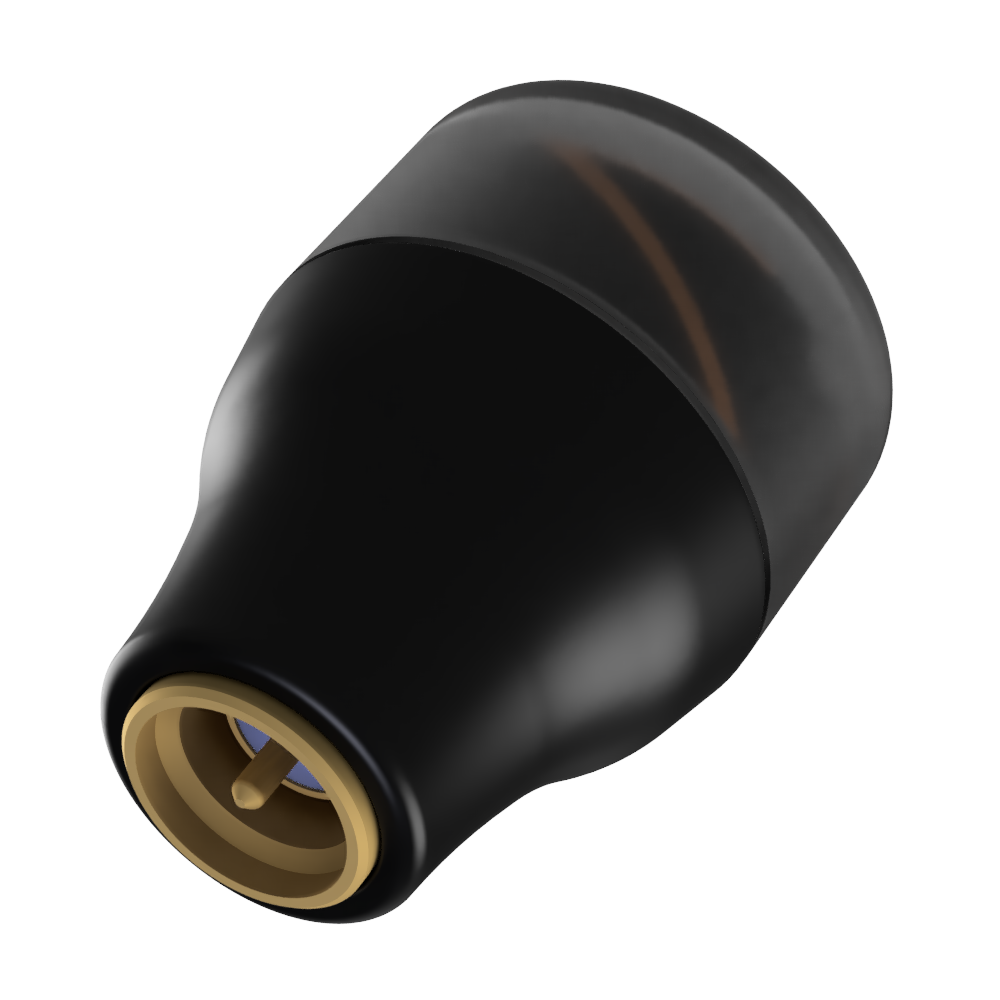

TrueRC Stubby Core 5.8 Antenna

Name: TrueRC Stubby Core 5.8 Antenna
Brand: TrueRC
SKU: CORESTU-RHCP-SMA
Price: 17.0 USD
Availability: OutOfStock

TrueRCSKU: CORESTU-RHCP-SMA

Polarization: RHCP

Connector: SMA

Variante

Precio:

$17

Impuestos incluidos Gastos de envío calculados en la caja

Stock:

Agotado

Cantidad:

Add to Wishlist

The stubby 5.8 is a wide-band circular polarized antenna built onto LDS (laser direct structuring). By pushing the limits of this technology, TrueRC was able to etch the complex structure needed our antenna. Featuring a uniquely ingenuous design that incorporate both feeding network and CP elements within the antenna. Its low profile, make it especially useful for FPV goggles use.

Features

Compact size.
High efficiency.
Uniform stable radiation pattern throughout bandwidth and beyond.
Excellent axial ratio throughout bandwidth and beyond.
DC grounded construction.

Specs

Frequency: 5.5-6.2GHz
Gain @5.8GHz: 2.0 dBic

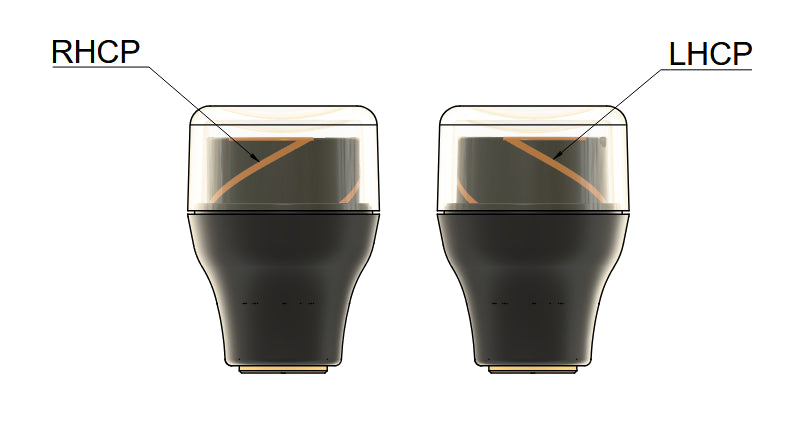

Polarization: RHCP or LHCP
Connector: SMA or RP-SMA

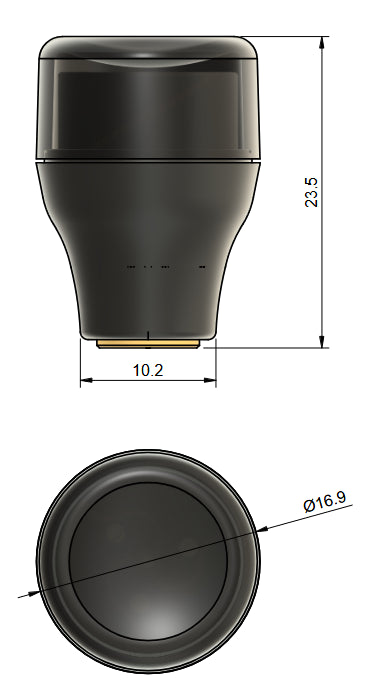

Dimensions(mm): Dia: 16.9, Height: 23.5
Weight: 4.9g
