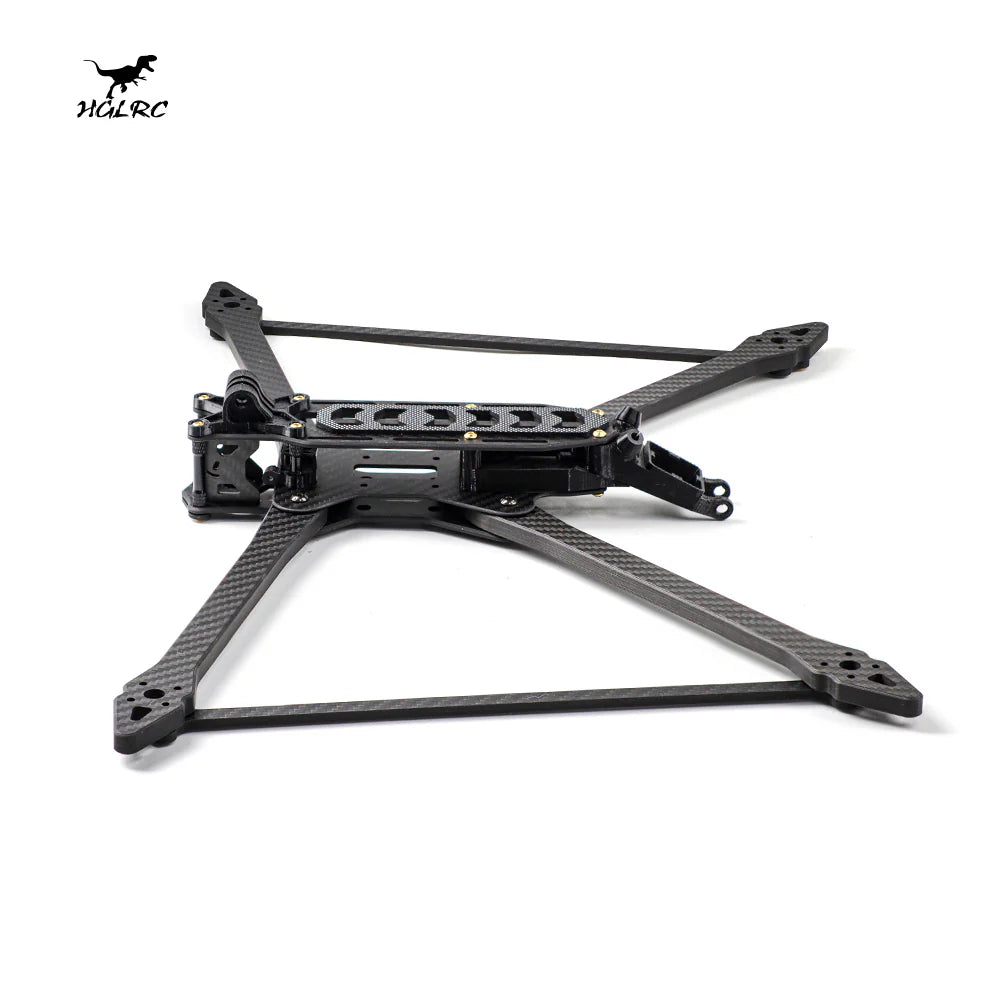

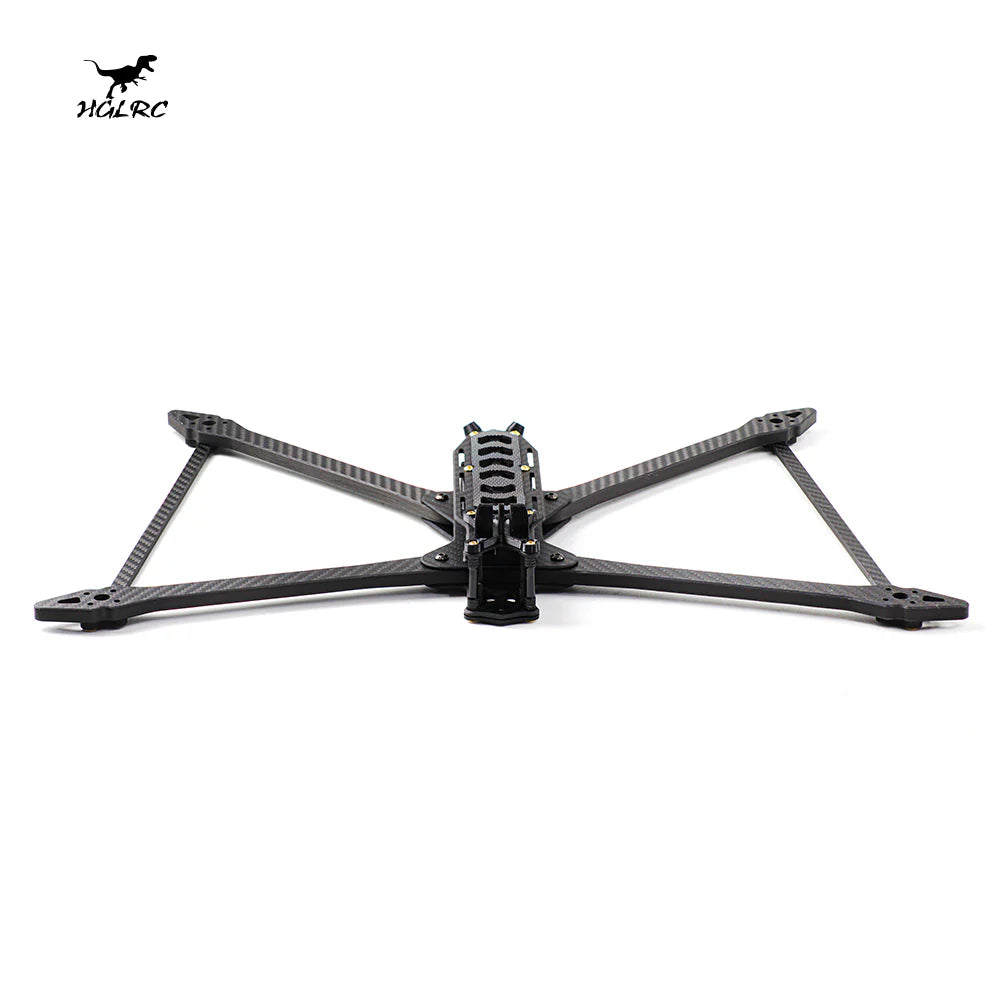

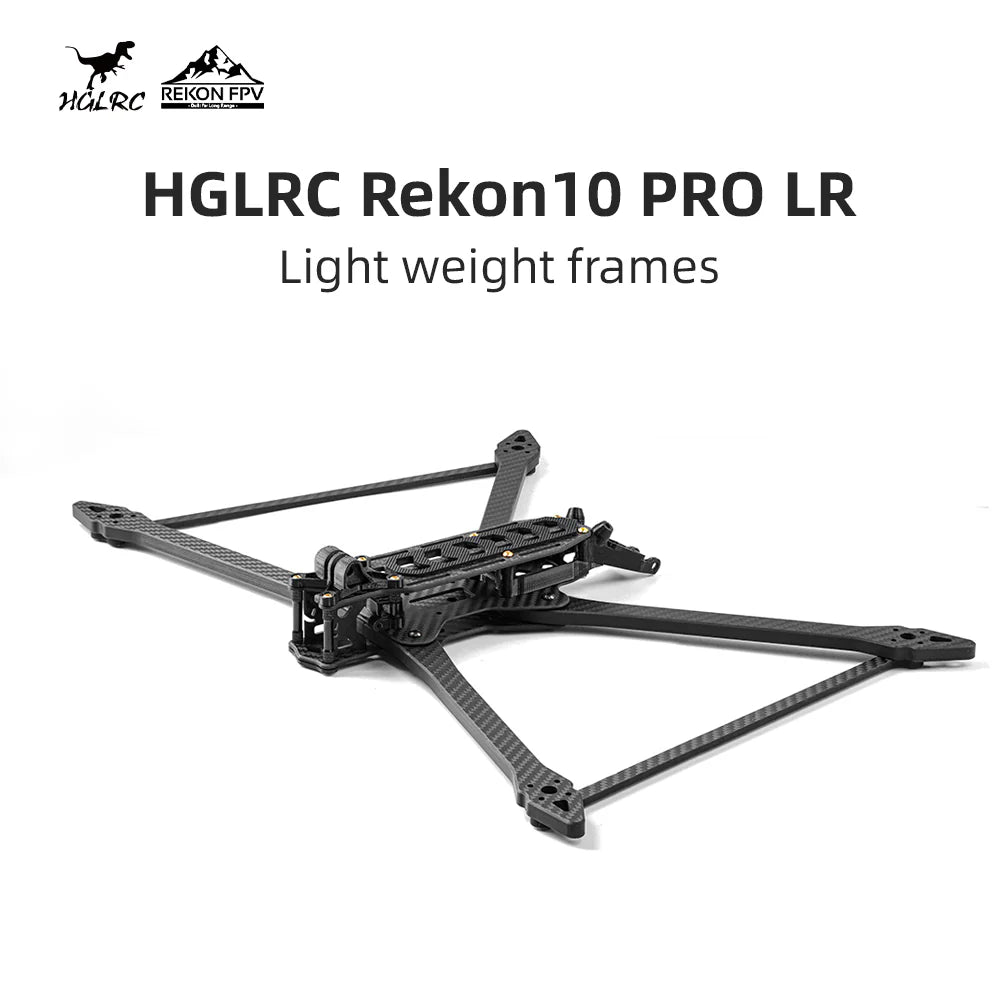

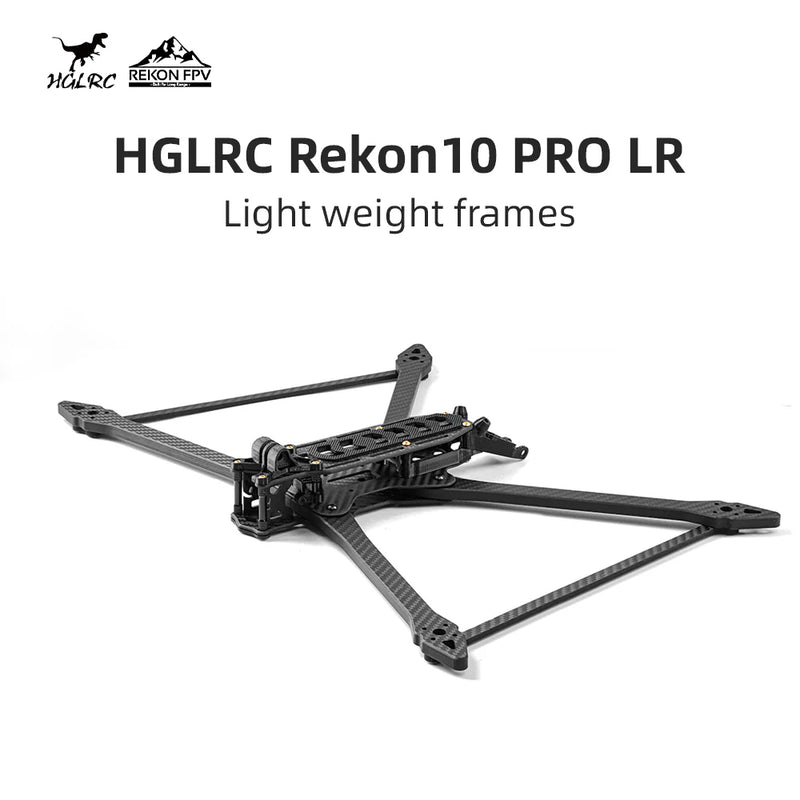

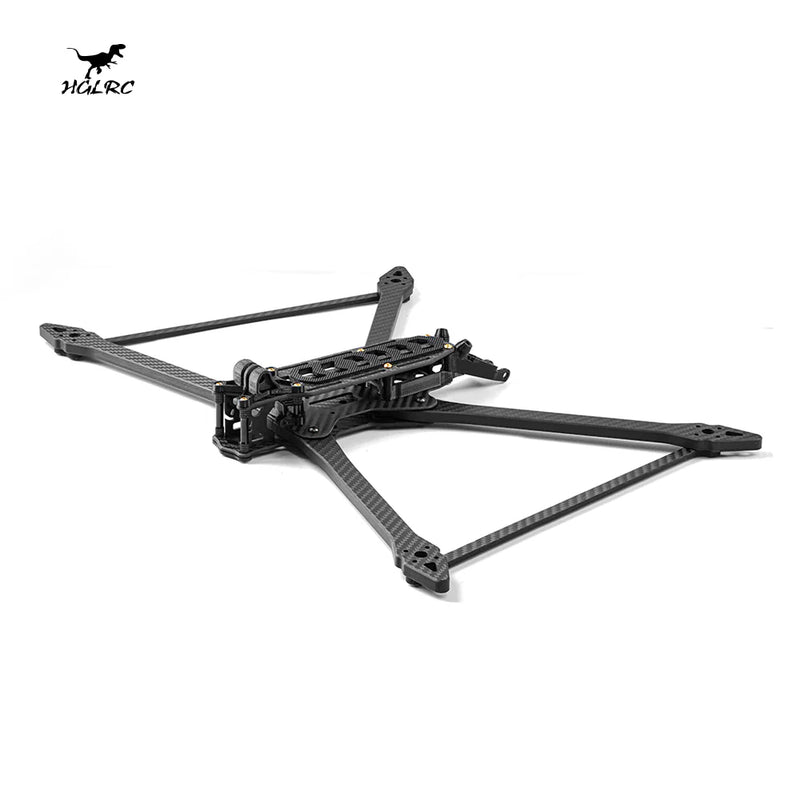

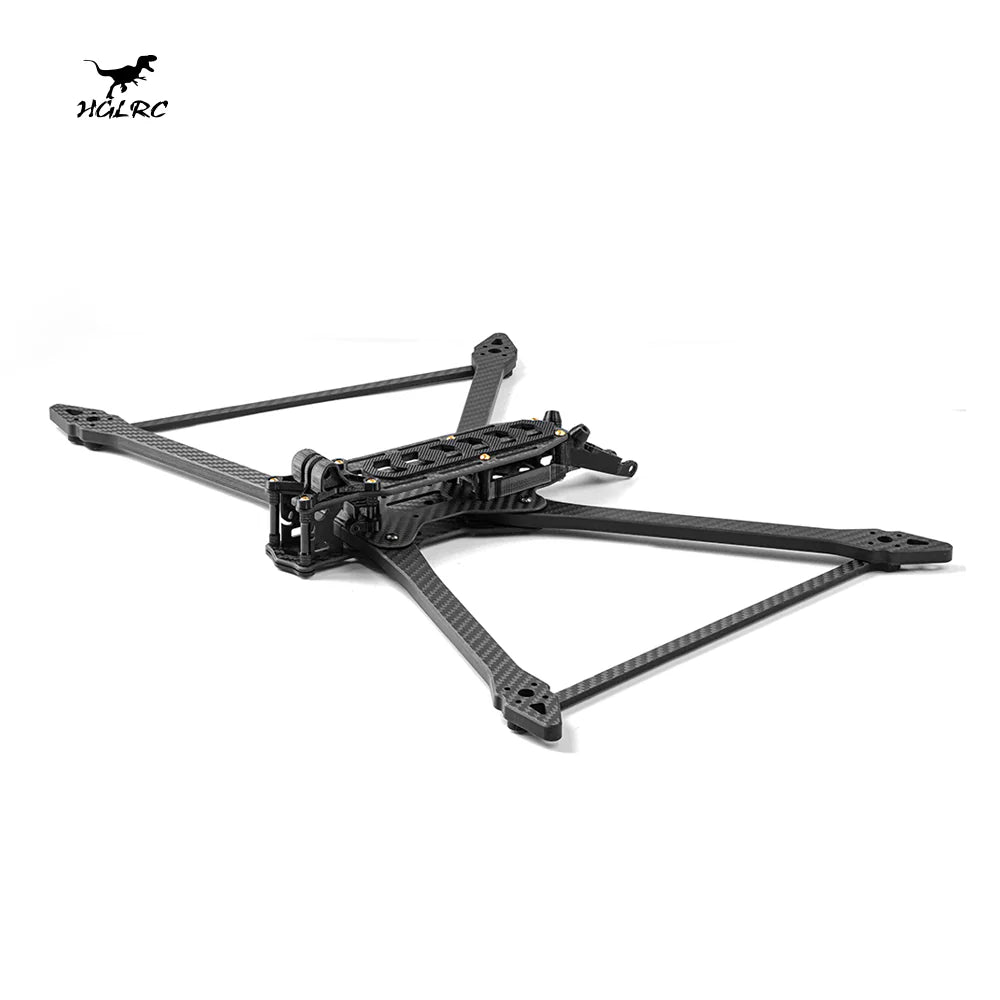

HGLRC Rekon10 PRO 10 Inch Long Range Frame Kit

The Rekon 10 Pro is an absolute beast designed for the most challenging long-range missions! The weight and momentum of a 10” quad gives it stunningly high cruising speeds and wind resistance for high altitude mountain dives. While it looks similar to the Rekon 7 Pro, they actually not share any identical carbon parts:

• The Arms are considerably beefed-up and cut out of 8mm carbon plates.
• Top and bottom plate are 3mm thick.
• The main body is wider and slightly longer to fit larger batteries.
• For maximum range dual batteries (top and bottom mount) are recommended.

Rekon10 PRO Long Range Frame Kit 10 Inch for FPV Racing Drone

• Product name:Rekon
• Model:Rekon10 PRO LR Frame kit
• Material:3K Carbon fiber
• Type:10 inch
• Wheelbase:455mm
• Size:476 * 298mm
• Top plate thickness:3mm
• Bottom plate thickness:3mm
• Middle plate thickness:2mm
• Front arm:8mm
• Rear arm:8mm
• Frame protection bar:2mm
• Camera side plate:2mm
• Top and middle plate space:20mm
• Flight controller mounting hole:30.5x30.5mm
• Camera mount:20*20mm
• Motor mounting hole:19*19mm
• Weight:396.7g

• 1x 3mm top plate
• 1x 3mm base plate
• 1x 2mm mid plate
• 2x 8mm front arm
• 2x 8mm rear arm
• 2x 2mm rack protection board
• 2x 2mm camera side panel
• 2x M3*30mm black mesh aluminum column
• 4x M3*20mm black mesh aluminum column
• 2x M3*18mm black mesh aluminum pillar
• 4x M4*16 Screws
• 4x M3*22 Screws
• 4x M3*20 Screws
• 4x M3*10 Screws
• 8x M3*8 Screws
• 4x M2*20 Screws
• 1x M2*16 Screws
• 2x M2*4 Screws
• 1x M5 lock nut (red)
• 4x M3 self-locking nuts
• 5x M2 self-locking nuts
• 8x M3*8 shock-absorption balls
• 4x M2*4 shock-absorption balls
• 2x battery straps 20x250mm
• 1x Battery Anti-slip pad
• 1x Down Battery Anti-slip pad
• 1x TPU black GoPro holder mount
• 1x TPU black GPS mount
• 2x TPU black antenna mount
• 1x TPU black T-antenna mount
• 1x TPU black buzzer mount
• 1x TPU black DJI Air unit Block A
• 1x TPU Black DJI Air unit Block B
• 1x TPU black DJI O3 holder mount

• Flight control:Zeus F722
• Motor:31xx/32xx
• ESC:60A
• Camera:20X20mm
• Propeller:10 inches
• Battery:6S 2000-5100mAh
•
