FlySky ProArt PA01 EdgeTX ELRS/FlySky Radio Controller

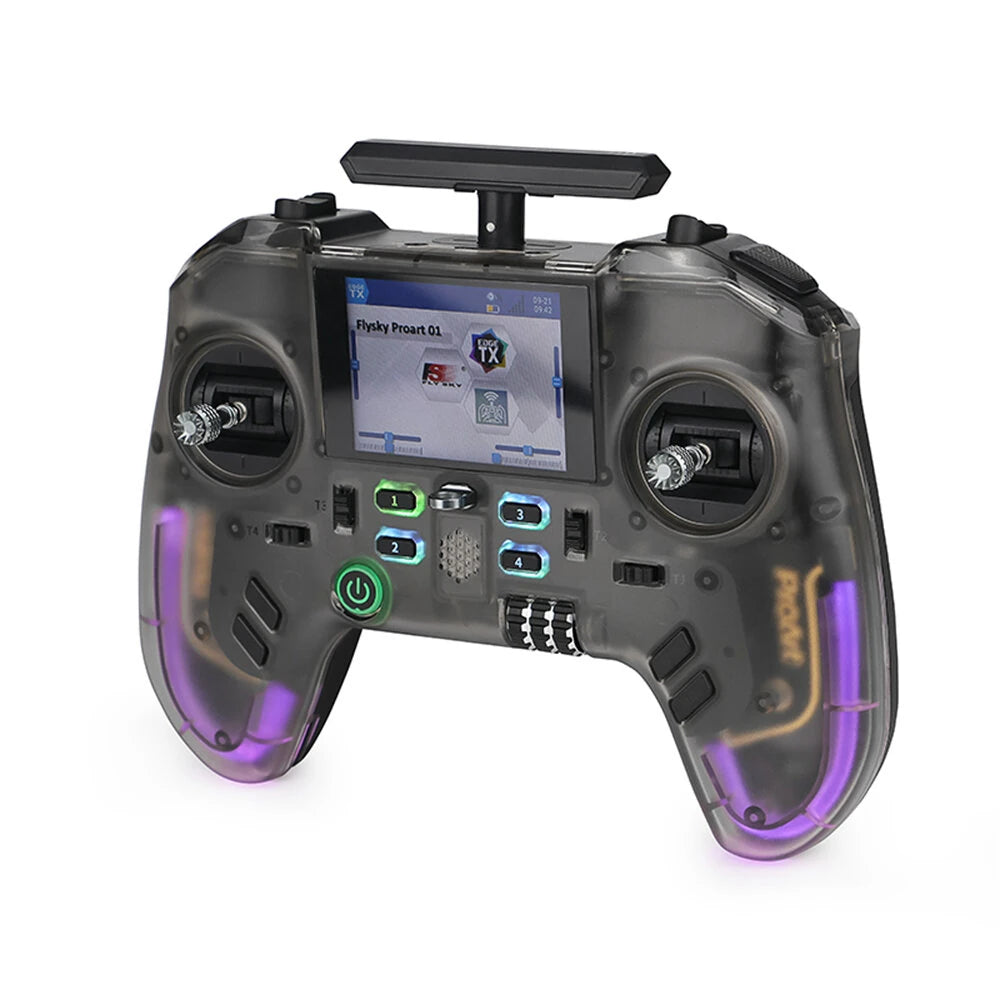

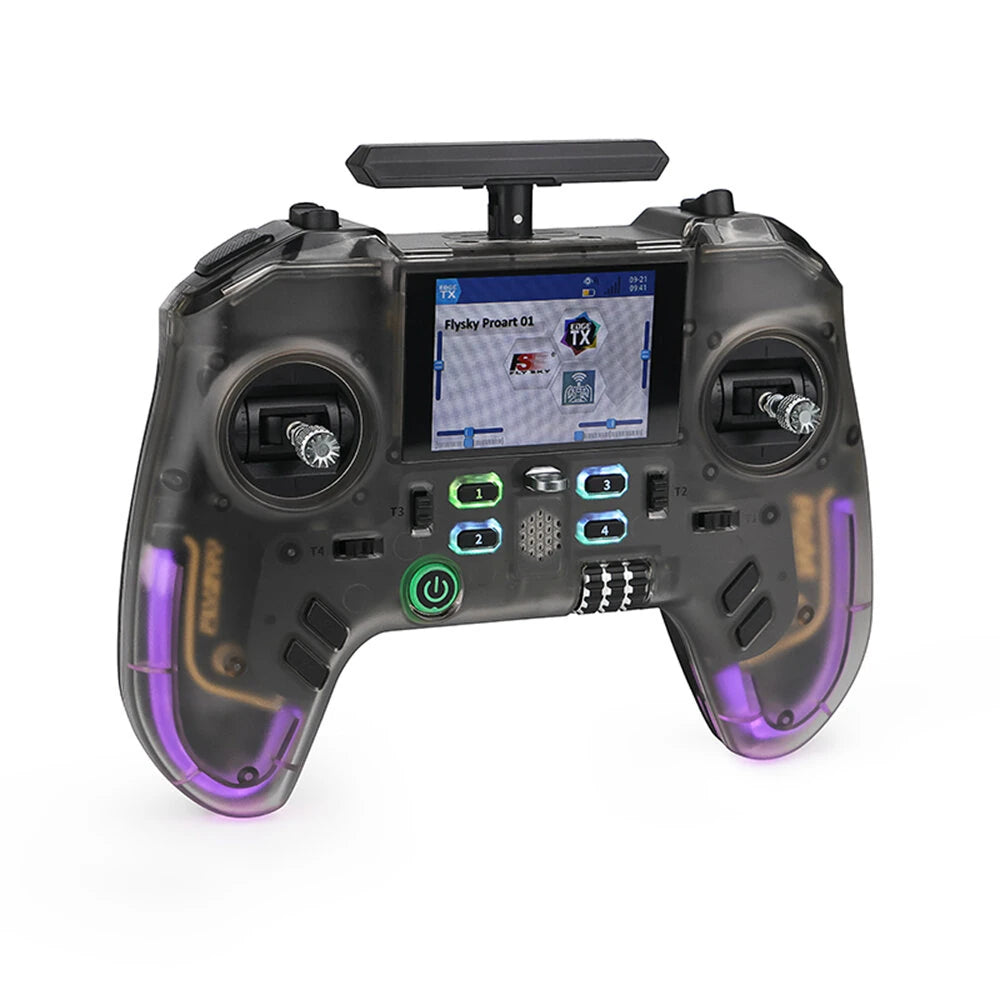

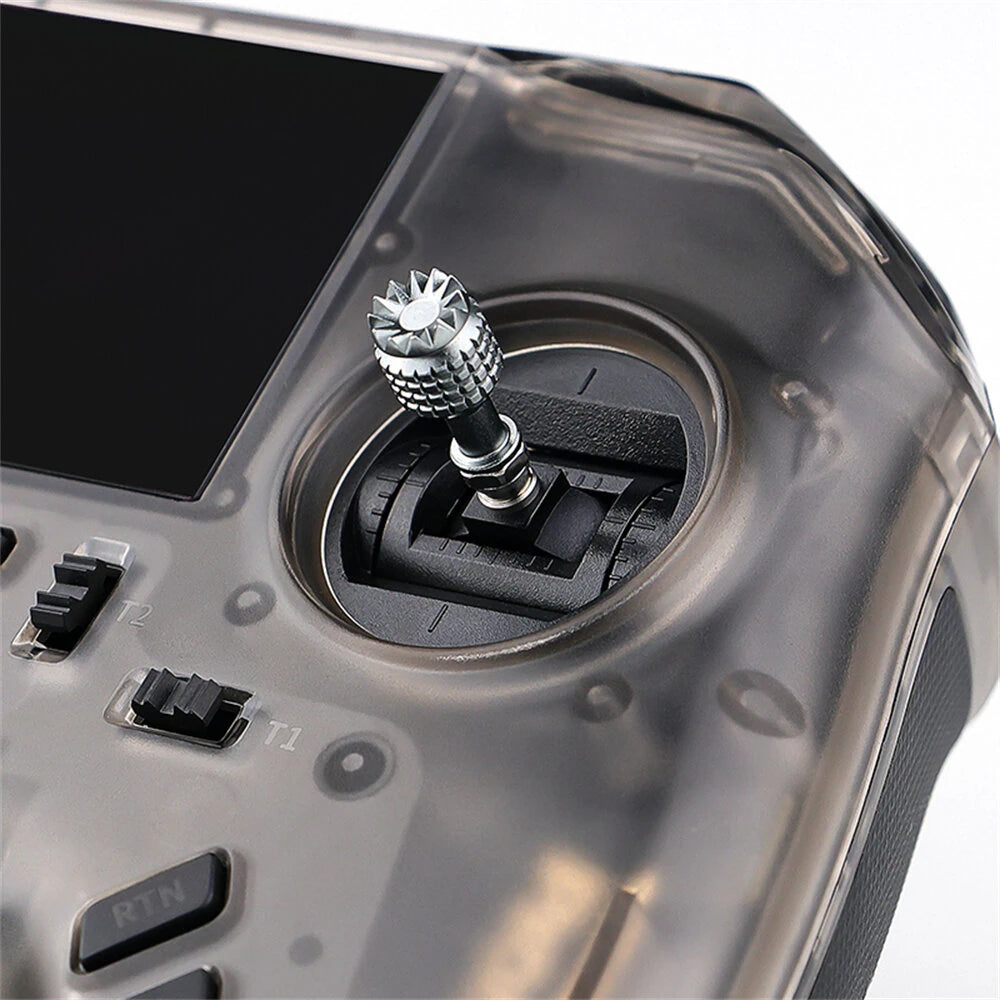

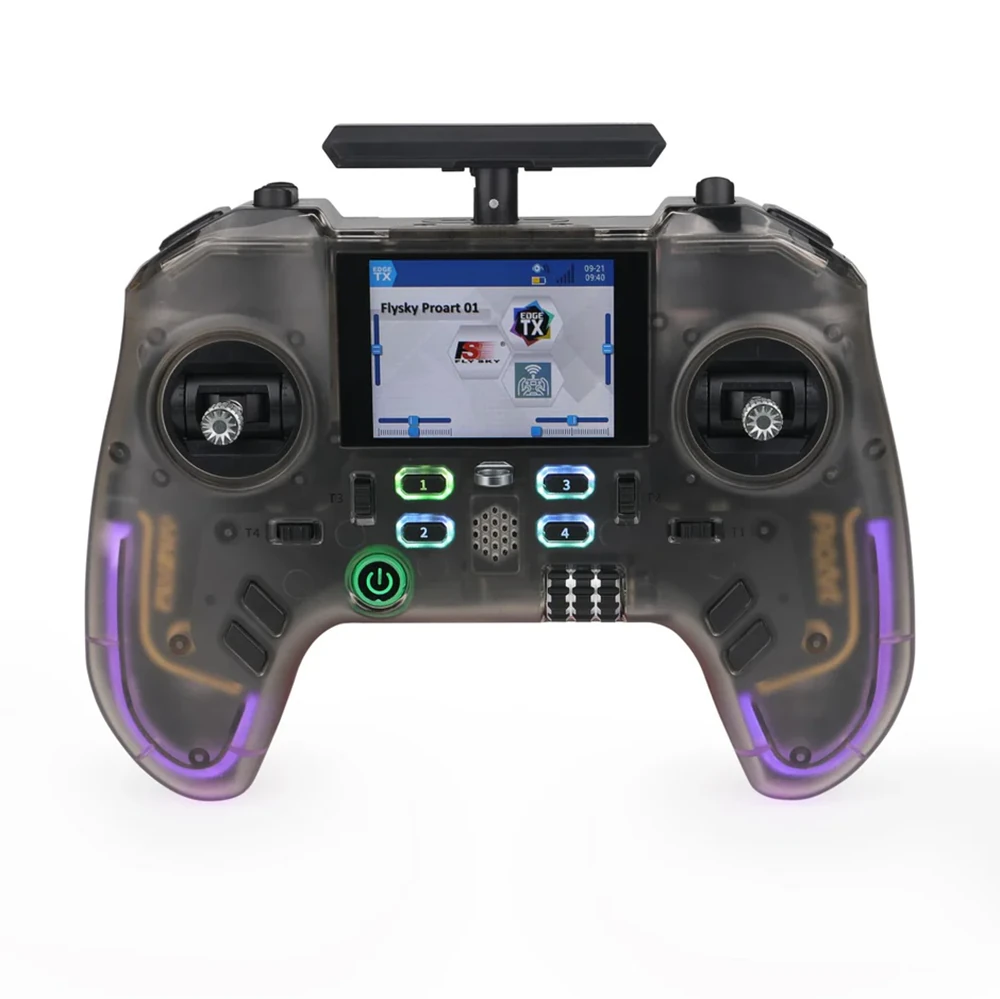

The FlySky PA01 (ProArt) is a compact, gamepad-style RC transmitter running EdgeTX firmware, supporting both FlySky's AFHDS3 and the popular ExpressLRS (ELRS) protocols, making it versatile for drones, cars, and boats. Key features include Hall gimbals, a 2.4-inch color screen, customizable RGB lighting, internal 18650 battery power (with USB-C charging), and a unique retractable antenna, designed for both handheld and tray use. It's praised for its ergonomic design, smooth gimbals, and open-source firmware, offering strong performance and compatibility.

Specifications:

• Brand: FLYSKY
• Model: ProArt PA01
• Number of channels: Built-in transmission: 18; External transmission: 32
• Wireless frequency: 2.4GHz ISM
• Wireless protocols: AFHDS 3 / ELRS
• Transmission power: 20dBm (factory default)
• Antenna: Single antenna (retractable, rotatable, external)
• Input voltage: 7.4V (2 × 18650 LiPo batteries)
• Data ports: USB Type-C, 3.5mm audio, 3.5mm trainer (DSC)
• Low voltage alarm: <7.2V
• Display: 2.4-inch, 240 × 320 full-dot matrix color IPS display, non-touch, full viewing angle
• Charging port: USB Type-C
• Channel resolution: 4096 level
• Firmware Update: Supported
• Operating temperature: -10°C to +60°C
• Operating humidity: 20%–95%
• Dimensions: 174.9 × 131.4 × 67.5 mm
• Body color: black translucent
• Body weight: 343g (without batteries)
• Charging dock weight: 67g (without batteries)
• Certifications: SRRC, CE, FCC ID: 2A2UNPA0100

Features:

High-Resolution IPS Display
Enjoy clear visuals on the 2.4-inch full-color IPS screen with a wide viewing angle, offering superior brightness even under direct sunlight.

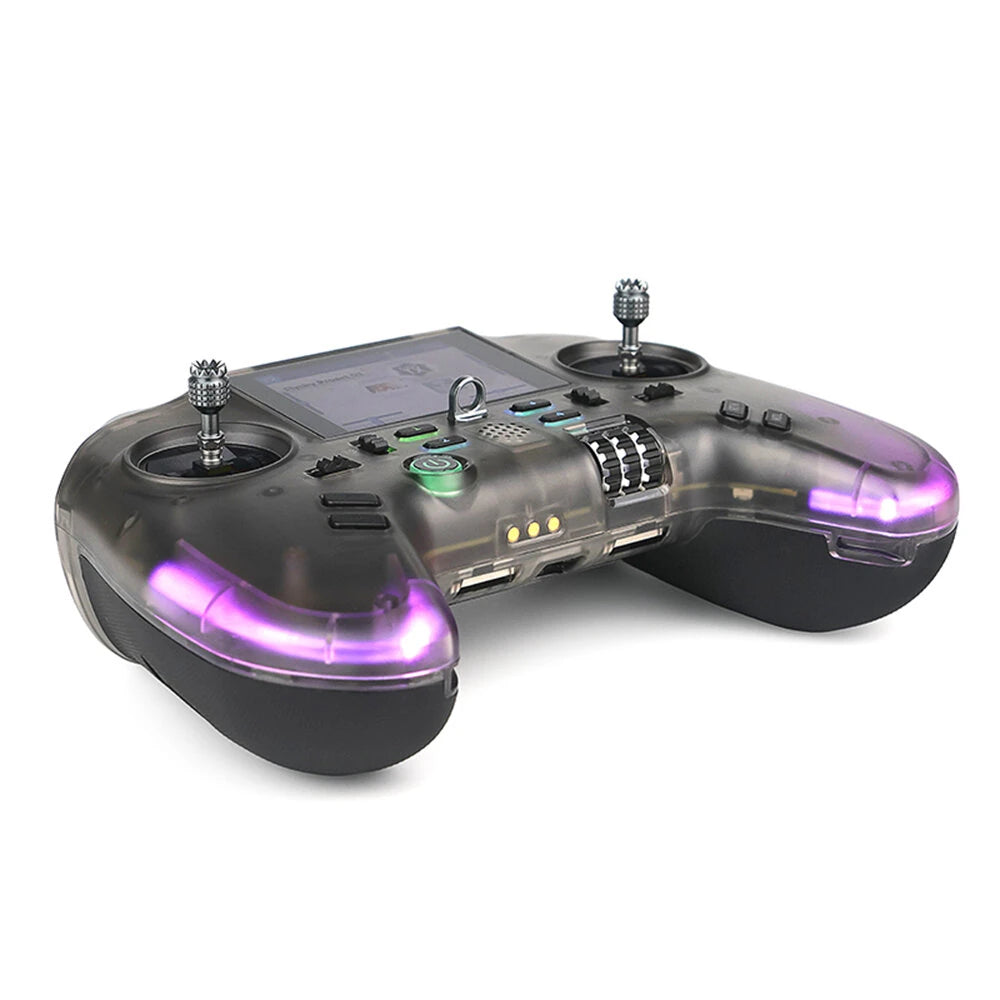

Customizable RGB Lighting & Buttons
Stylish RGB lighting across the body and four RGB buttons provide the flexibility to customize functionalities and appearance, enabling a personalized experience.

Advanced Core Chipset Performance
Powered by STM32 H7 and ESP32-S3 chips, delivering high-speed processing and seamless transmission protocols—AFHDS 3 / ELRS—for higher precision and reliability.

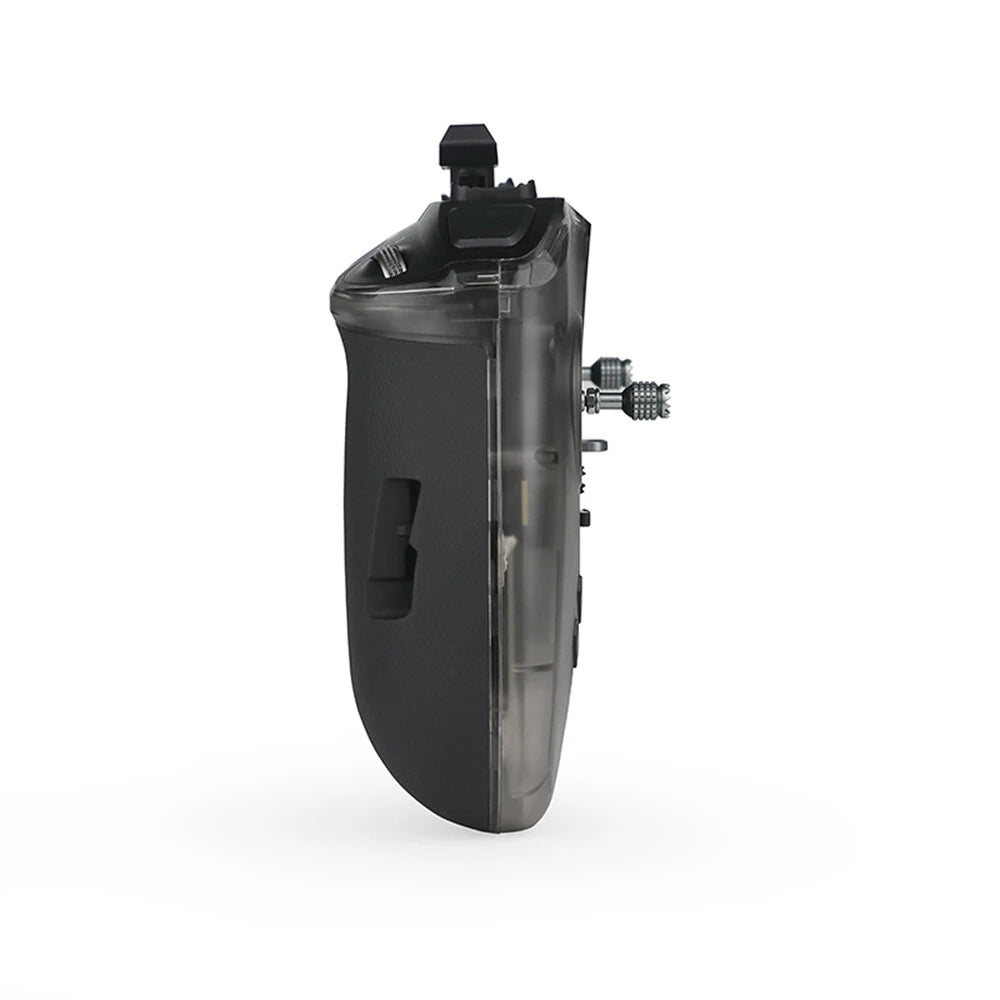

Enhanced Grip Design for Comfort
Ergonomic design with 3D-mesh anti-slip grips ensures extended comfortable use, ideal for long gaming or remote control sessions.

Multiple Connectivity Ports
Equipped with USB Type-C, 3.5mm audio and trainer ports to connect multiple devices—perfect for diverse gaming and remote-control needs.

Package includes:

• 1 x FLYSKY PA01 Radio Controller

User Manual

Quick Start Guide
