Antenna 2.4GHz 5dBi Dipole (RPSMA)

Next FPVSKU: ANT24G5DB

Precio:
Precio de venta$9

Impuestos incluidos Gastos de envío calculados en la caja

Stock:
Disponibles (4 unidades), listas para ser enviadas

Descripción

This is a quality 2.4-2.5GHz dipole antenna with an industry standard RPSMA connector.

It is a collinear dipole antenna with a base connector that can swivel up to 90 degrees.

It is well suited as a higher gain replacement antenna for 2.4GHz systems such as:

  • FrSKY 2.4GHz radio control transmitters (requires sma to sma adaptor for some units with extra plastic at the top of the sma connector)
  • 2.4GHz Wi-Fi (802.11b/g/n)
  • 2.4GHz XBee
  • Bluetooth
  • Other 2.4GHz transceivers

Specifications:

  • Frequency range: 2.4-2.5GHz
  • Gain: 5 dBi

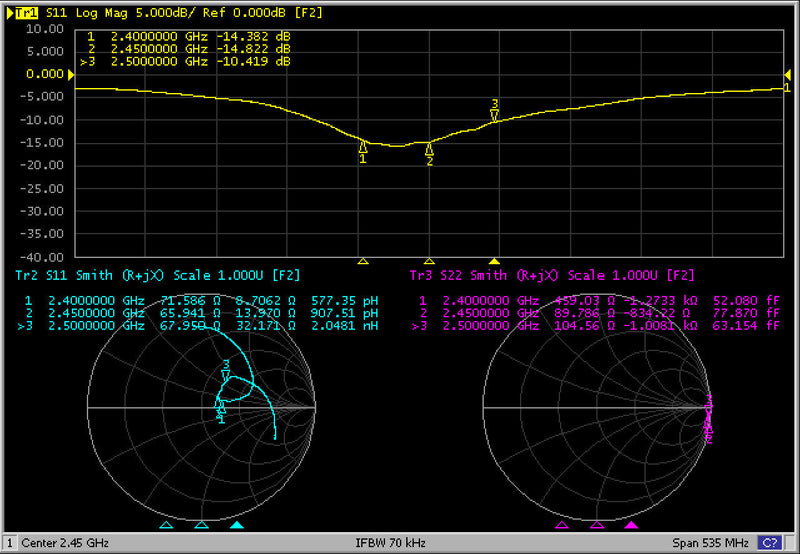

  • Return loss: <-10dB
  • Impedance: 50 Ohm
  • Polarisation: Vertical
  • Size: 200mm long, 13mm diameter
  • Weight: 27g
