Description
The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team Black Sheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product.

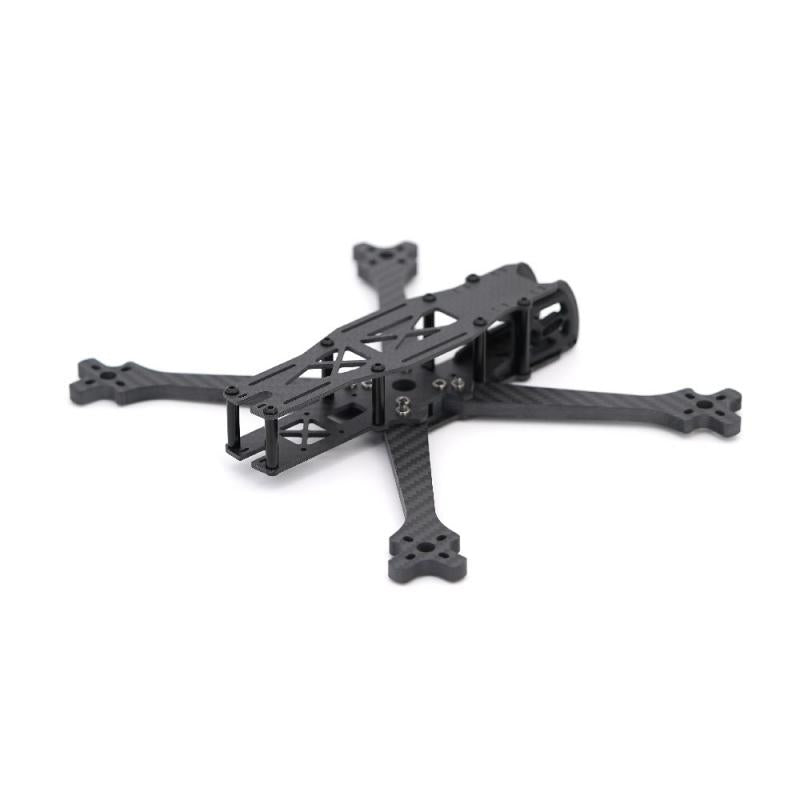

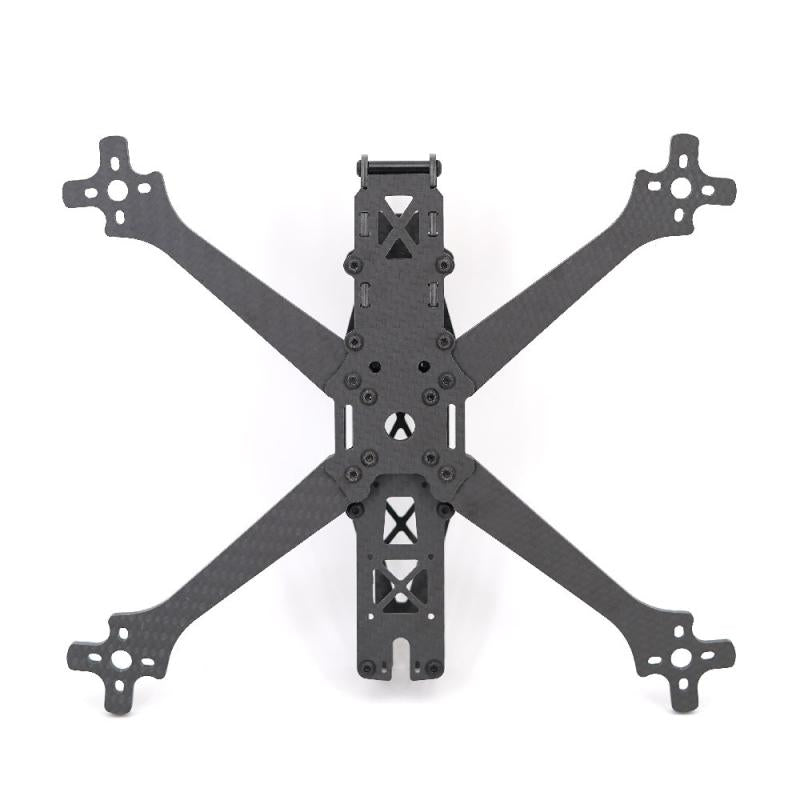

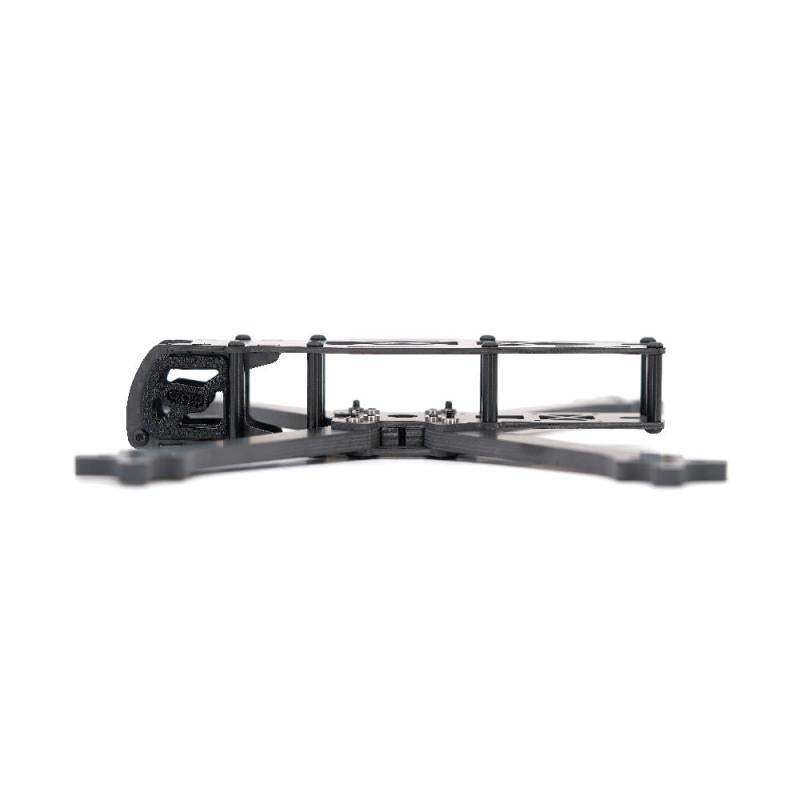

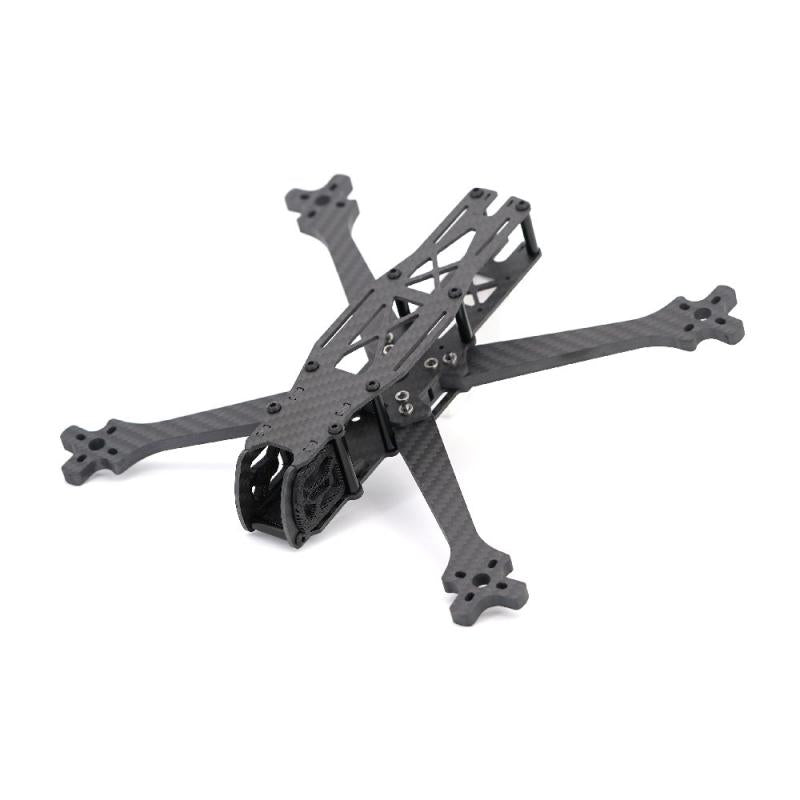

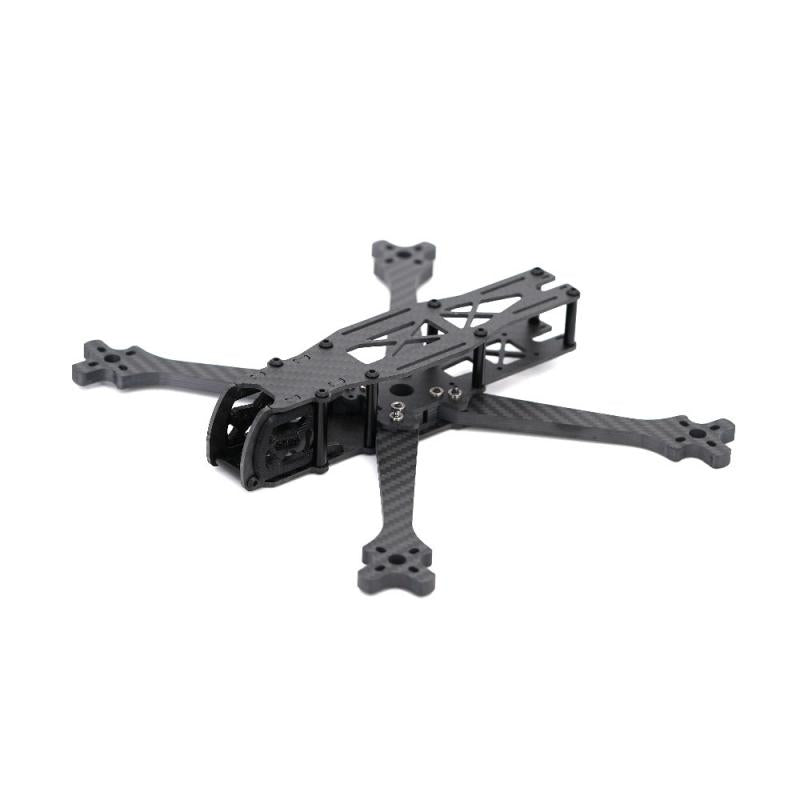

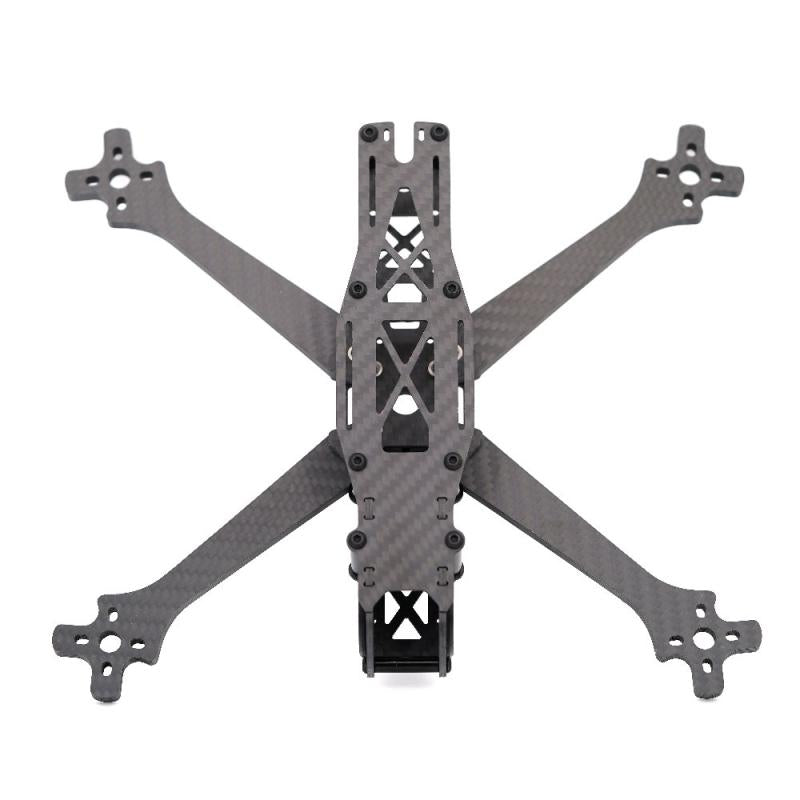

The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.
About the project
The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team Black Sheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.
The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.
Get involved!
- Project files: https://github.com/tbs-trappy/source_one (Coming Soon)
- Interactive Manual (work in progress)
- 3D Printed files on Thingiverse: https://www.thingiverse.com/tag:sourceone
Package contains:
- 1x Frame (Top, Middle and Bottom. Brace and 2x Camera plate, 4x Arms, 1x arms spacer)
- 1x Screw & Standoff set
Technical specifications:
| Wheelbase 5" | 240 |
| Top Plate | 2mm |
| Middle Plate | 2mm |
| Bottom Plate | 2.5mm |
| Arms Spacer | 6mm |
| Camera plate | 2mm |
| Standoff height | 30 and 22mm |
| Arm thickness 5" | 6mm |
| Stack Mounting | 30.5 × 30.5mm & 20 x 20 |
| Weight 5" | *136.5g |
Hardware:
- 20X M3x10 allen screw
- 4X M3x12 allen screw
- 4X M3x14 allen screw
- 4X OD 5mm M3 30mm standoff
- 4X OD 5mm M3 22mm standoff
- 2X OD 5mm M3 22mm standoff
- 8x M3 press insert nut

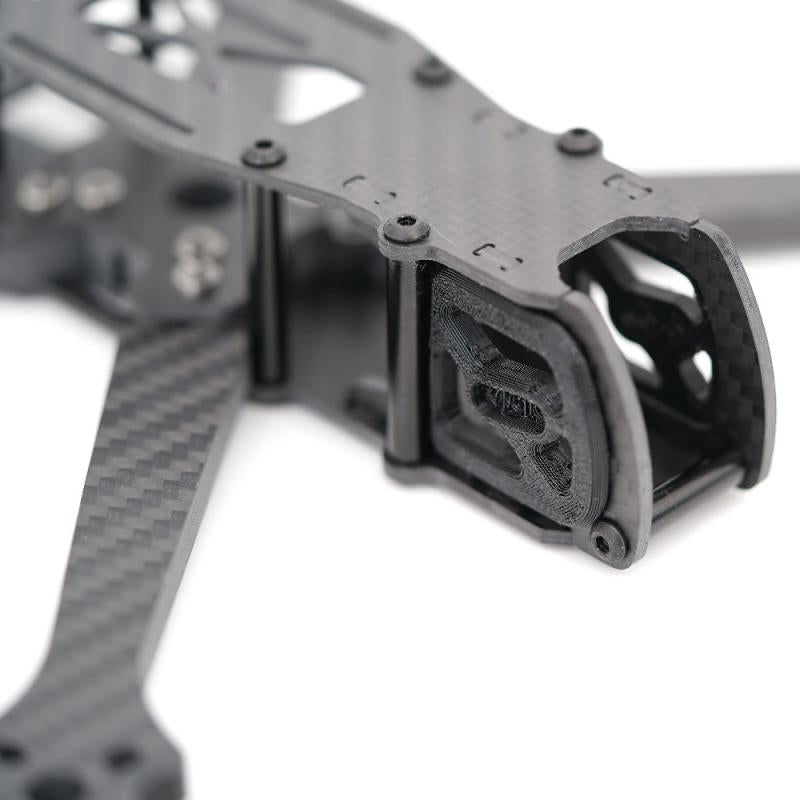

- TPU 3D Printed Camera Mount
RECOMMENDED PARTS:
The part recommendations are put together by our engineers and pilots. We strive for reliability and high quality in all of our selections, which may cost a bit extra but it allows you to enjoy the frame much more!
SpeedyBee F405 Stack - F405 V3 FC + 50A 3-6s BLHeli_S 4-in-1 ESC - 30x30
Xnova 2207 lite racing motors 4 pack 2500KV
HQ Racing Prop R37（5.1X3.7X3) (8CW+8CCW)-Poly Carbonate
RUSH TANK TINY VTX 5.8G Smart Audio 0-25-100-200-350mW
Foxeer 5.8G Micro Lollipop 2.5dBi High Gain Super Tiny FPV Omni Antenna
BigdaddyFPV 1300mAh V2 4s 100c Lipo Battery Pack
