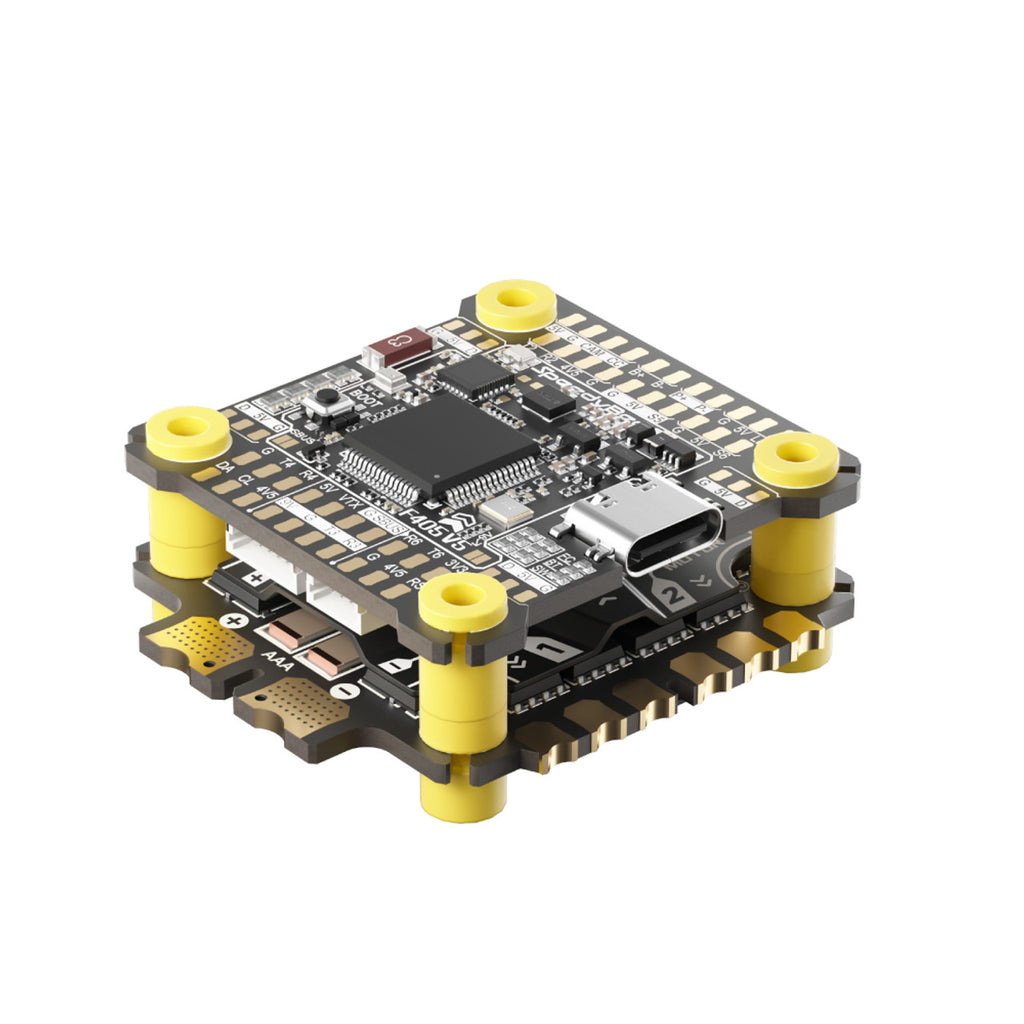

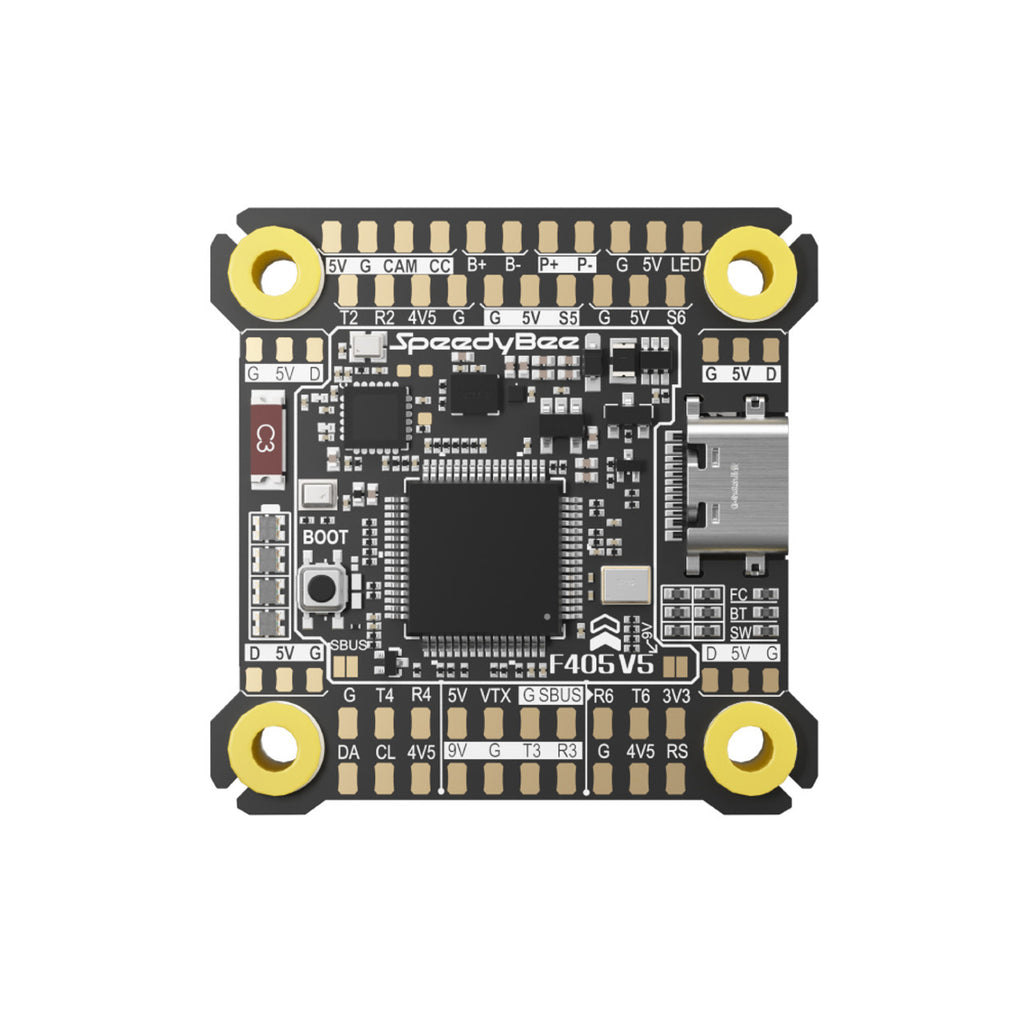

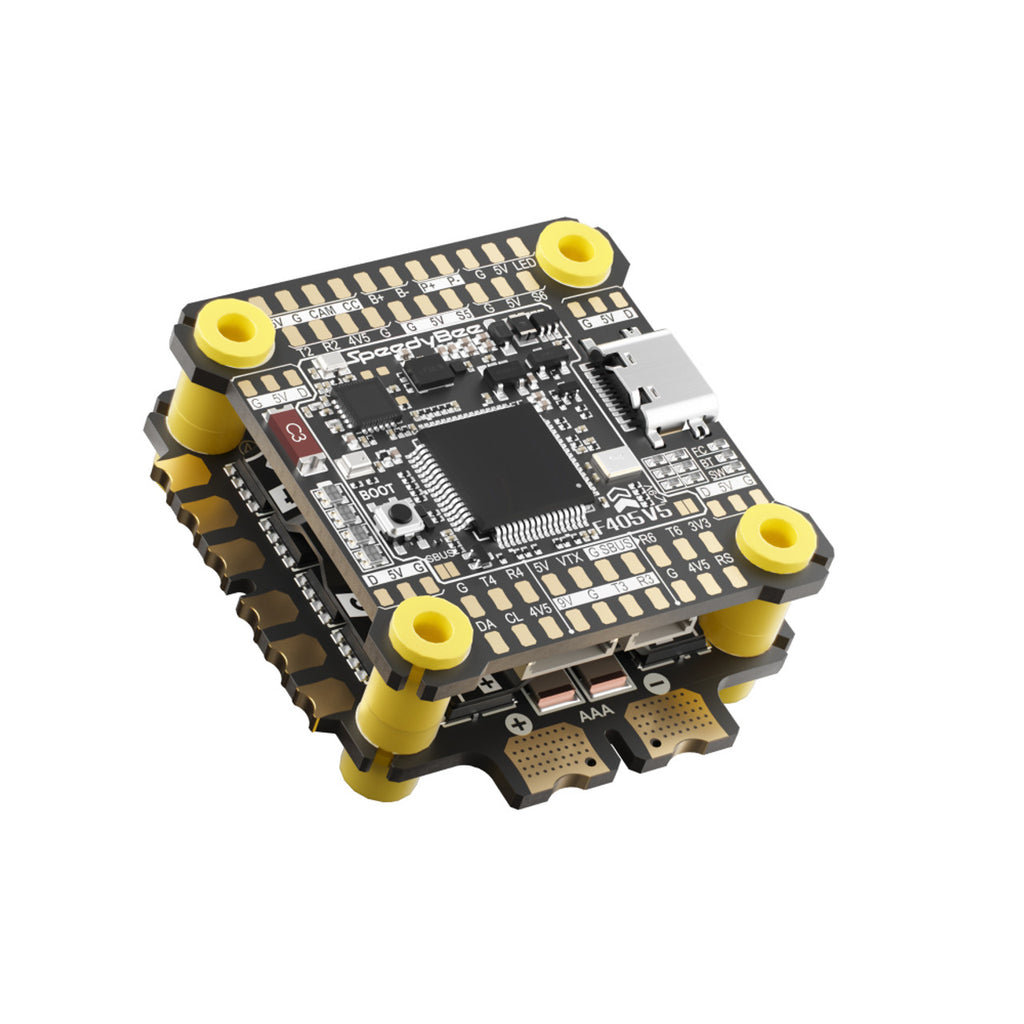

Product Name SpeedyBee F405 V5 30.5×30.5mm Model Aircraft Flight Controller
- MCU STM32F405
- IMU (Gyro) ICM42688P
- USB Port Type New Type-C interface
- Barometer SPA06-003
- OSD Chip AT7456E
- Full-featured Bluetooth Tuning Supported. Connect via SpeedyBee App for FC firmware flashing and parameter tuning.
- Wireless FC Firmware Upgrade Supported

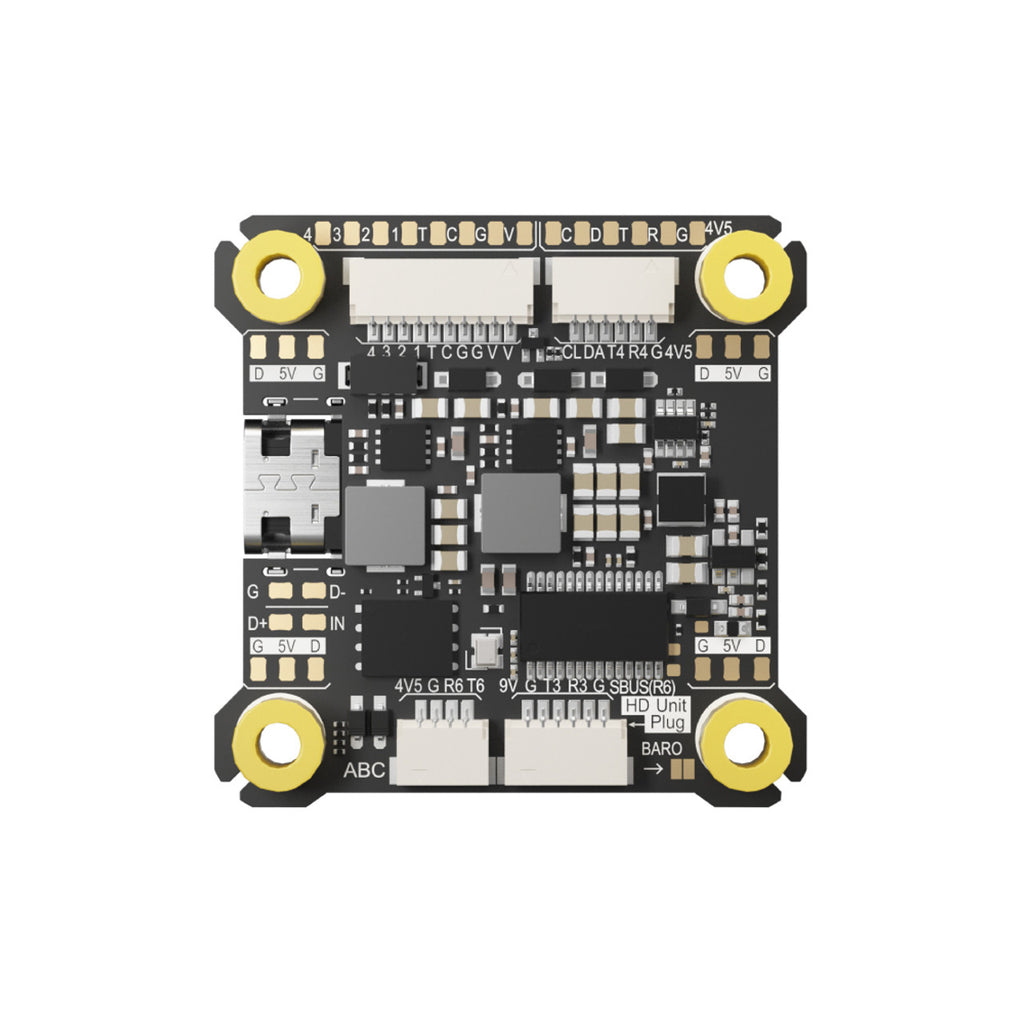

- DJI Air Unit Connection Supports 6-pin direct plug-in or solder connection
- Blackbox Supported, built-in 16MB storage chip
- Input Voltage 3-6S LiPo battery
- Independent 5V BEC Output 9 groups (4× +5V pads on front, 1× BZ+ buzzer pad, and 4× +5V pads at the corners for external LEDs). Total output current: 1.5A.
- Independent 9V BEC Output 2 groups (1x 9V pad on front, 1x 9V output in a connector on the back). Total output current: 3A. Supports PINIO remote on/off control.
- MCU & Gyro Power Independent LDO
- 3.3V Output 1 group (1× 3.3V pad on front)
- 4.5V Output 3 groups (3× 4.5V pads on front). Can power receiver and GPS when FC is powered via USB. Max output current: 1A.
- ESC Signal M1-M4 pads and 10-pin connector on the back
- Servo Signal S5-S6 pads on the front
- ESC Telemetry Input Supported (UART5)
- Betaflight Camera Tuning Pad Supported (CC pad on front)
- I2C Supported (GPS connector + pads)
- UART UART1 (Bluetooth); UART2 (front pads for receiver); UART3 (DJI VTX pads + rear SH1.0-6-pin); UART4 (GPS pads + front SH1.0-6-pin); UART5 (TLM); UART6 (receiver pads + rear SH1.0-4-pin)
- ST LED Pads Supported, on front G/5V/LED pads; controlled by FC firmware
- Meteor LED Strip Pads Supported. Switch between SB-LED and ST-LED modes via BOOT button or App. In SB-LED mode, controlled by ESP32 Bluetooth chip.
- Buzzer Pads Supported
- BOOT Button [A] Hold BOOT while powering on to force DFU mode for flashing.
- [B] When powered and in standby, short-press cycles LED display modes; long-press switches SB-LED/ST-LED. In ST-LED mode, LED1–LED4 are controlled by FC firmware.
- RSSI Pads Supported
- SmartPort Not supported
- Supported FC Firmware Betaflight, INAV, Ardupilot
- Firmware Target Name SPEEDYBEEF405V5
- Factory Firmware Version Betaflight 4.5.2
- Configurator Version Betaflight 10.10.0
- Mounting Holes 30.5 × 30.5mm (Ø4mm), side opening
- Dimensions 39mm (L) × 39mm (W) × 4.9mm (H)
- Weight 8.1g

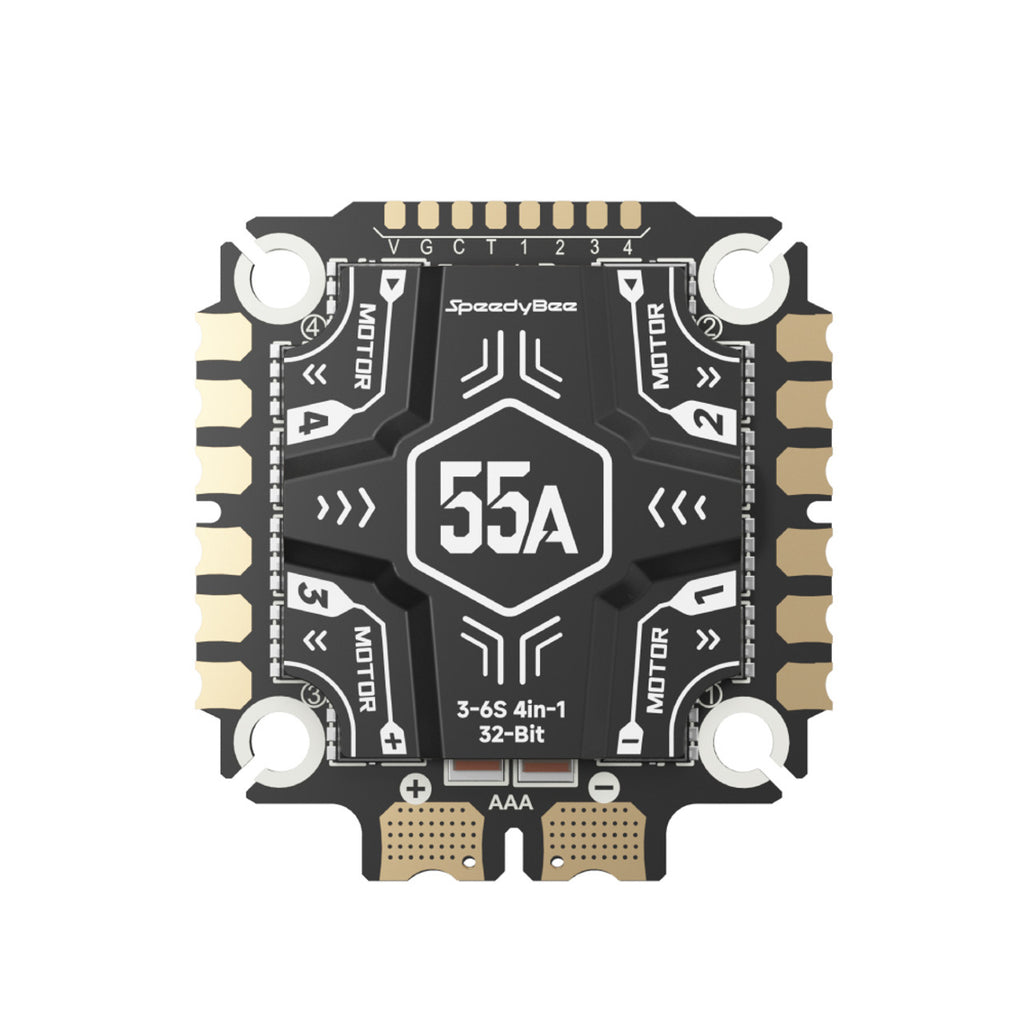

Product Name SpeedyBee OX32 55A 30.5×30.5 4-in-1 ESC
- Default Firmware OX32
- Continuous Current 55A (per channel) / 220A (4-in-1)
- Maximum Current 70A (per channel) / 280A (4-in-1)
- TVS Protective Diode Yes (built-in)
- External Capacitor 1000µF Solid Capacitor (included in package)
- ESC/Motor Protocol DSHOT300/600
- Input Voltage 3-6S LiPo
- Power Output VBAT
- Current Sensor Supported
- ESC Telemetry Supported
- Mounting Holes 30.5 × 30.5mm (Ø4mm), side opening
- Dimensions 40.9mm (L) × 44.9mm (W) × 8.0mm (H) (incl. heatsink)
- Weight 19.1g
- ESC Webpage https://ox32.oxbot.com/
- Current Meter Note Supported (Scale=27, Offset=-2644)
