Foxeer | SKU:
HS1188
Sold out
39% off

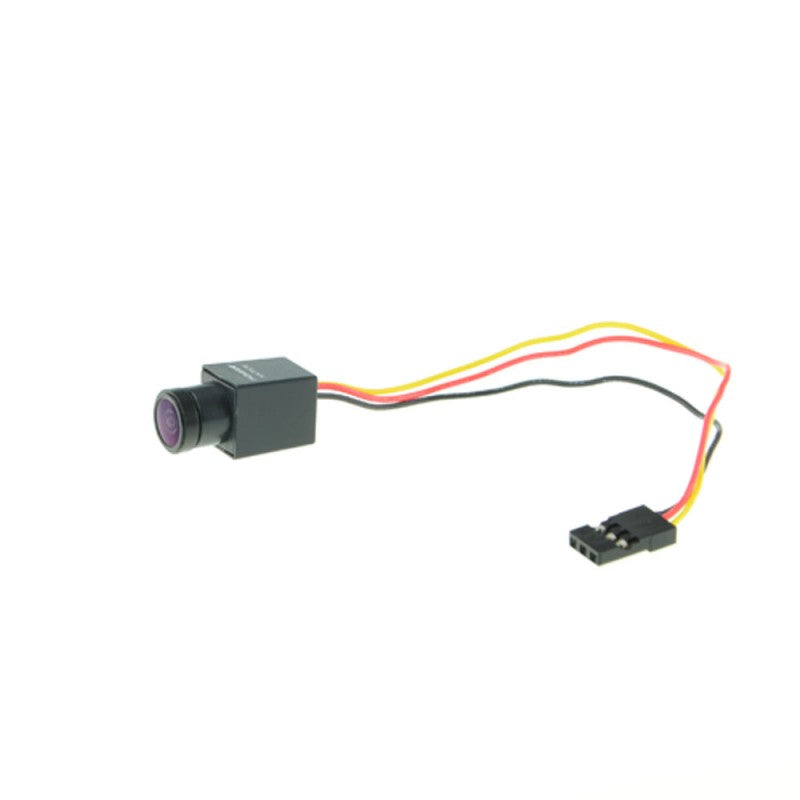

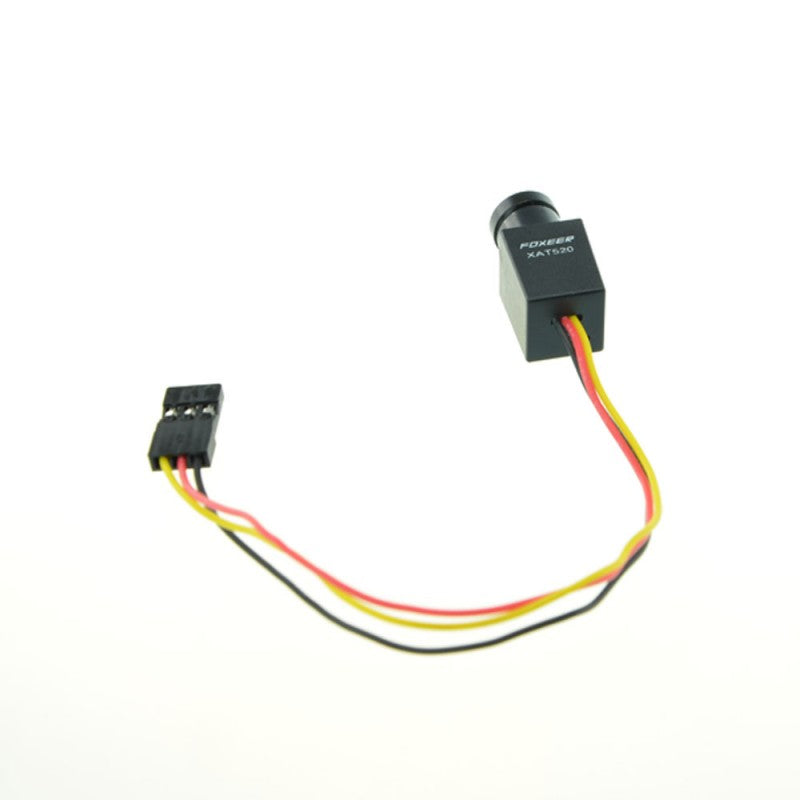

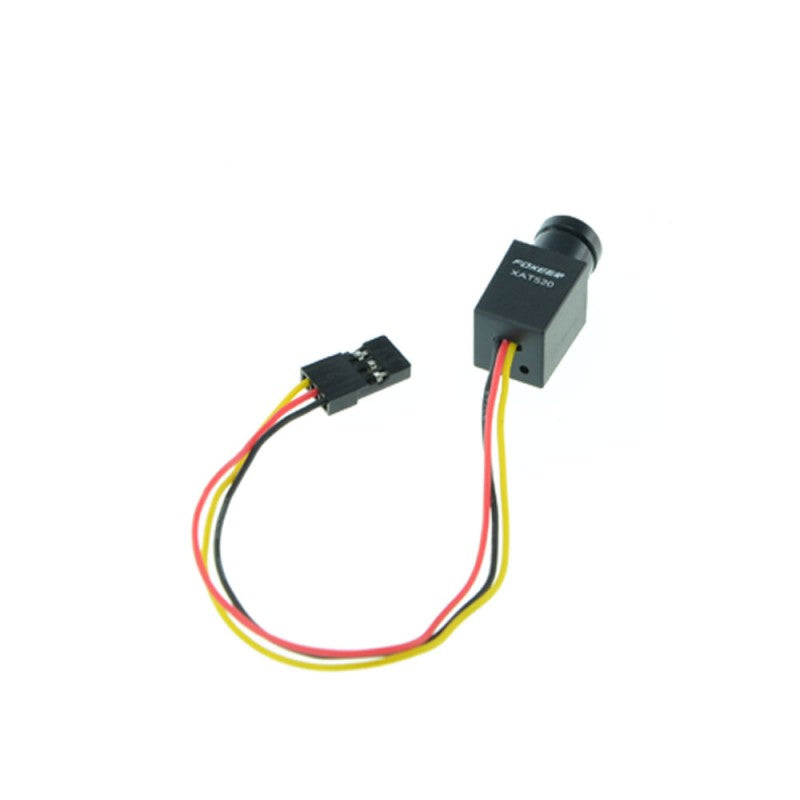

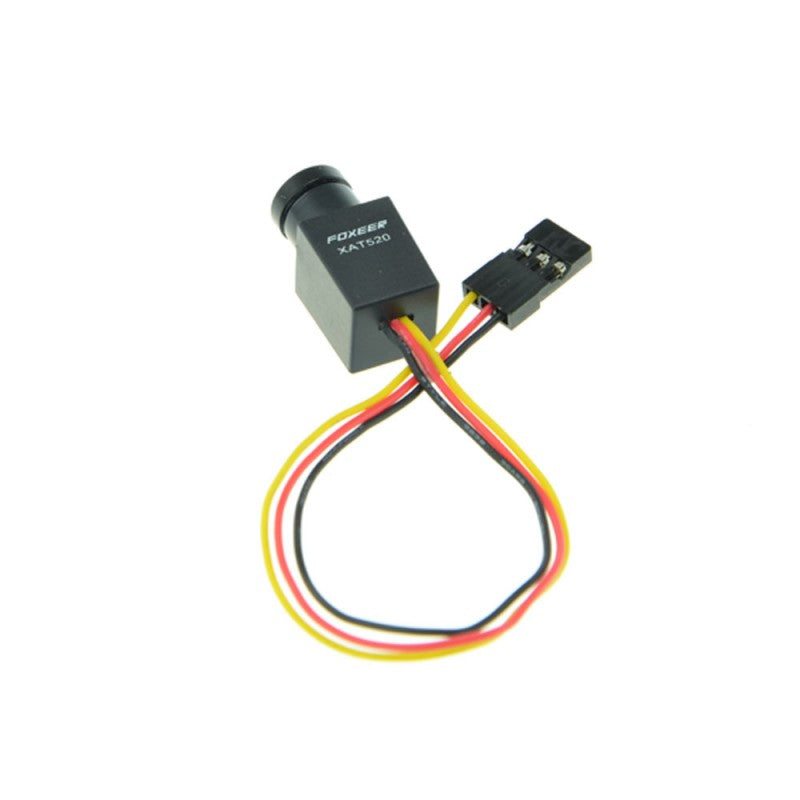

Foxeer DC5-24V Super Mini 520TVL CMOS FPV Camera Low 0.008lux
Sale price
$11.00
Regular price
$18.00
Unit price
Tax included
Shipping calculated at checkout.
Foxeer DC5-24V Super Mini 520TVL CMOS FPV Camera Low 0.008lux is backordered and will ship as soon as it is back in stock.
Description
Description
The Foxeer Super Mini 520TVL CMOS Camera is an ultra small high definition FPV camera with excellent night vision. It features 11.8X11.8X24.5mm size, 4.5g weight as well as 5~24V wide voltage. Very easy to install and conceal, Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Specifications
- Sensor Type Sony 1/3" CMOS Sensor
- Pixel NTSC: PAL: 786(H)×576(V)
- Tv System PAL
- Resolution 520TVL
- Scanning System 2:1 Interlace
- Video Output CVBS Analog Signal
- Minimum Illumination 0.008Lux/F1.2
- S/N Ratio 52dB
- ELECTRONIC SHUTTER AUTO(1/60 S TO 1/100000 S)/OUT (1/50 S TO 1/100000)S
- Operation Temperature 100dB
- DAY/NIGHT - 10° C ~ +50°C, less than 90% RH
- Connection PIN1-Red DC PIN2-Black GND PIN3-Yellow Video
- Input Voltage 5V-24V
- Current 60mA
- Dimension 11.8mm x 11.8mm x 24.5mm
- Weight 4.5g
