Foxeer | SKU:
MR1866
Agotado

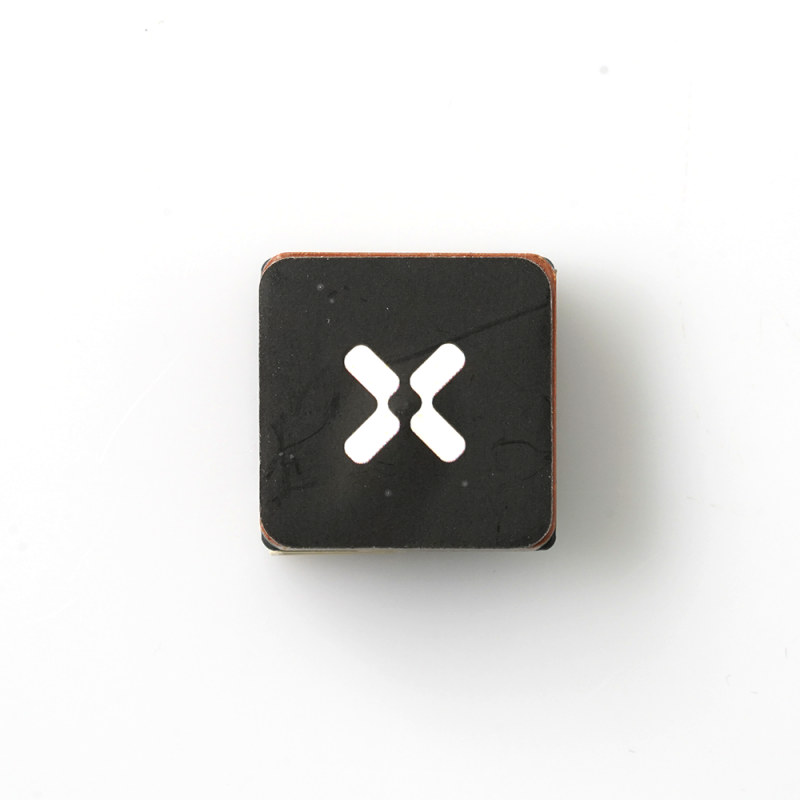

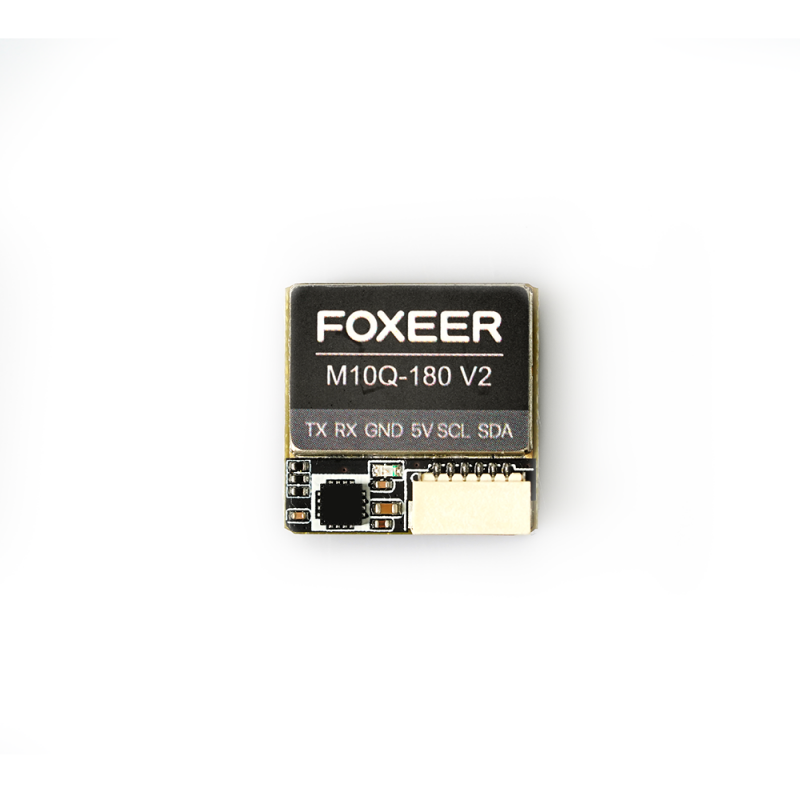

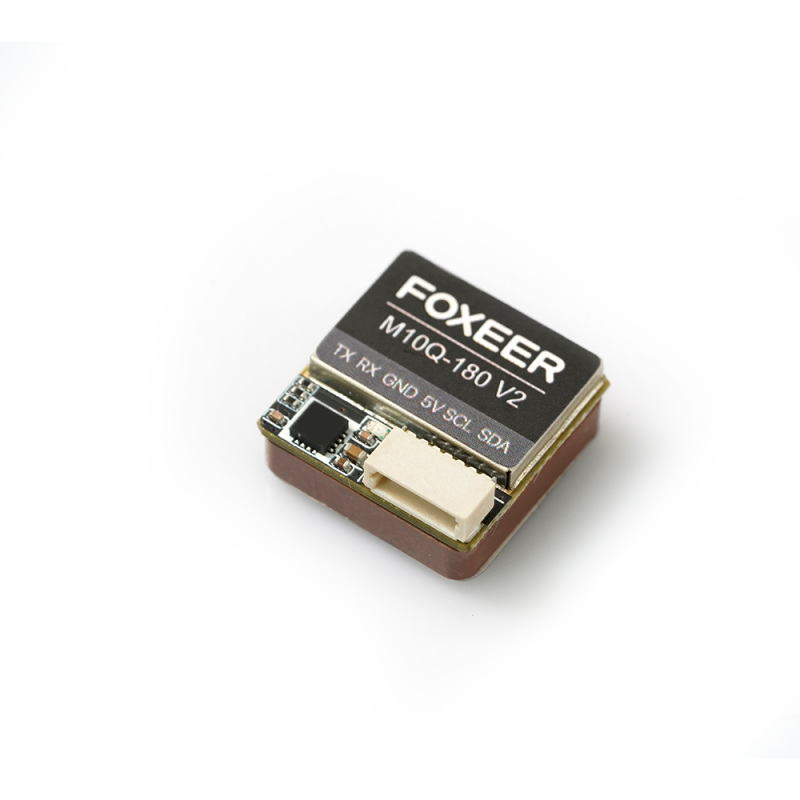

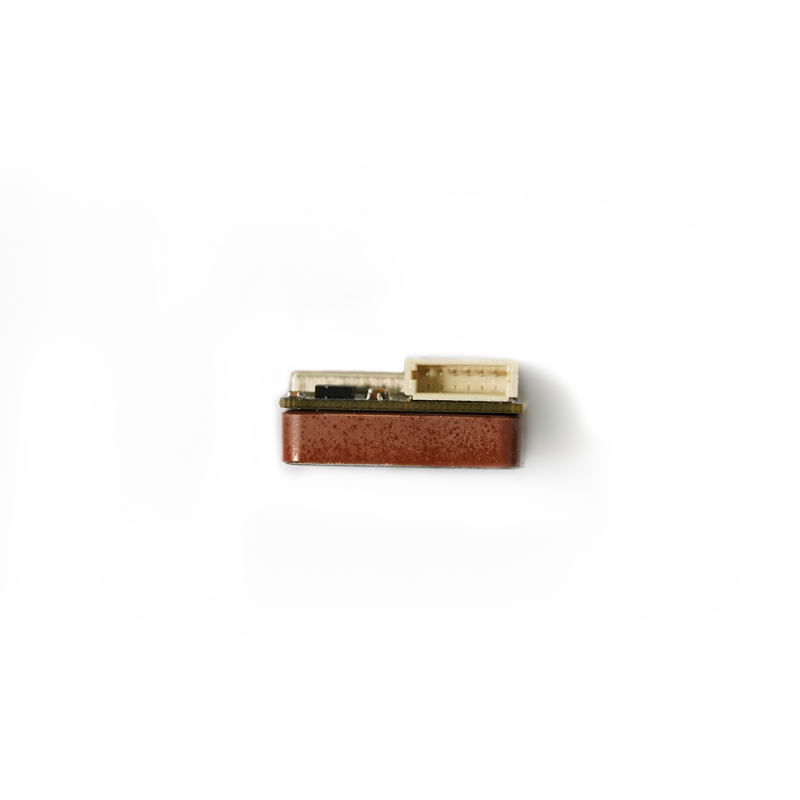

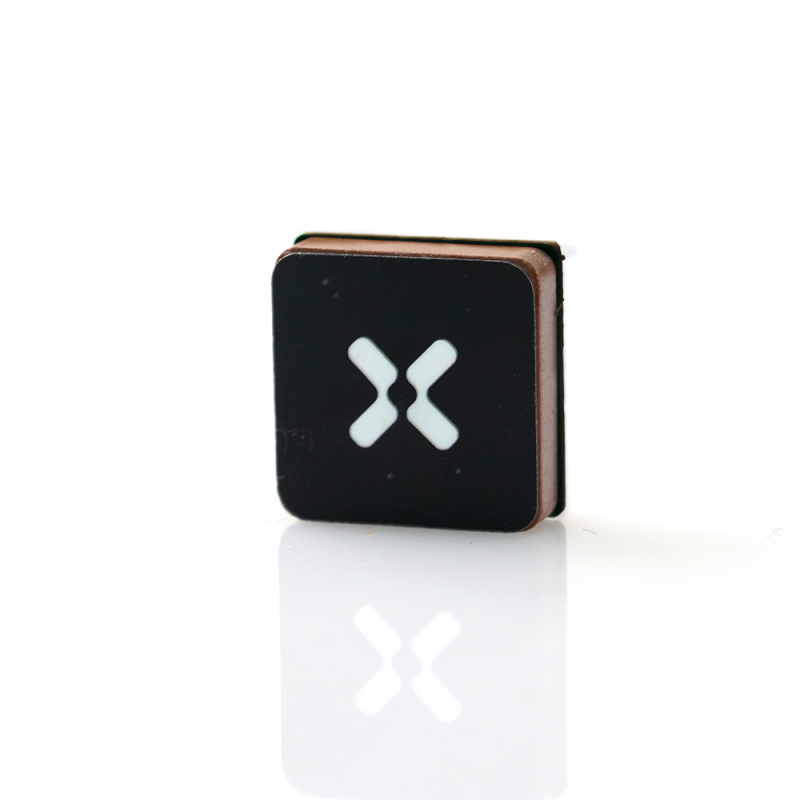

Foxeer M10Q 180 V2 GPS And Compass
Precio normal
$27.00
Precio unitario
Impuestos incluidos.
Los gastos de envío se calcularán al momento de pagar.
Foxeer M10Q 180 V2 GPS And Compass está agotado y se enviará tan pronto como vuelva a estar disponible.
Foxeer | SKU:
MR1866
Precio normal
$27.00
Precio unitario
Impuestos incluidos.
Los gastos de envío se calcularán al momento de pagar.
Foxeer M10Q 180 V2 GPS And Compass está agotado y se enviará tan pronto como vuelva a estar disponible.
Descripción
Descripción
Specifications.
- Chip M10(10th Generation Chip)
- Frequency GPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1
- Input Voltage 5V
- Antenna Ceramic Antenna
- Channel 72
- Battery Built-in
- Compass IST8310
- Compass Orientation Plug facing direction of flight and obviously antenna up, BF: CW 270° Flip
- Baud Rate 115200bps
- Protocol Dual NMEA/UBLOX
- Output Frequency 1Hz-10Hz,10Hz default
- Speed Accuracy 0.05m/s
- Horizontal Positioning Accuracy 2D ACC1.5m(outdoor)
- Receiver Sensitivity Trace -166dBm; Capture -160dBm
- Dynamic Characteristics Height 50000m; Speed 500m/s; Acceleration 4G
- Operating Temperature -40C-+85C
- Storage temperature -40C-+105C
- Weight 7.5g
- Size 18*18*8mm
