TOOLKITRC M6 V2.0 150W 10A CHARGER, CELL CHECKER & SERVO TESTER

TOOLKITRCSKU: HP110-0004-B-V2

Precio:
Precio de venta$34

Impuestos incluidos Gastos de envío calculados en la caja

Stock:
Agotado

Descripción

Are you looking to buy a ToolkitRC M6 V2.0 150w 10A Charger, cell checker and servo tester? You've come to the right place. Any questions? please live chat us, we're here to help.

Check out our great range of ToolkitRC products here

The Toolkit RC M6 V2.0 is a small 150w color screen charger! At heart, the M6 is a small and compact charger that boasts a wide array of other features not found in chargers on the market. Additional functionality includes a servo tester, battery cell checker, wattmeter (power meter), PWM/PPM/S.Bus input testers (for receiver testing), as well as output generators that offer variable voltage and amperage with DC current.

Toolkit M6 Features

  • Battery Charger
  • Cell Checker
  • Servo Tester
  • PWM,PPM, S.Bus Input/output & Receiver tester
  • Viable AMP/Volt DC Power supply (Requires external DC input)
  • Charger Features
  • Lithium battery cut-off voltage can be set (TVC function)
  • Measure battery voltage, internal resistance, balance
  • Measure PWM,PPM, S.Bus signal values @ 1ms accuracy
  • Output PWM, PPM, S.Bus standard signal @ 1ms accuracy
  • The customizable 1-28V constant output voltage, 1-10A constant output current
  • Multi-language optional
  • USB 2.1A@5.0V Output (Mobile device charging)
  • U-disk firmware upgrade (Slave device)

Charger

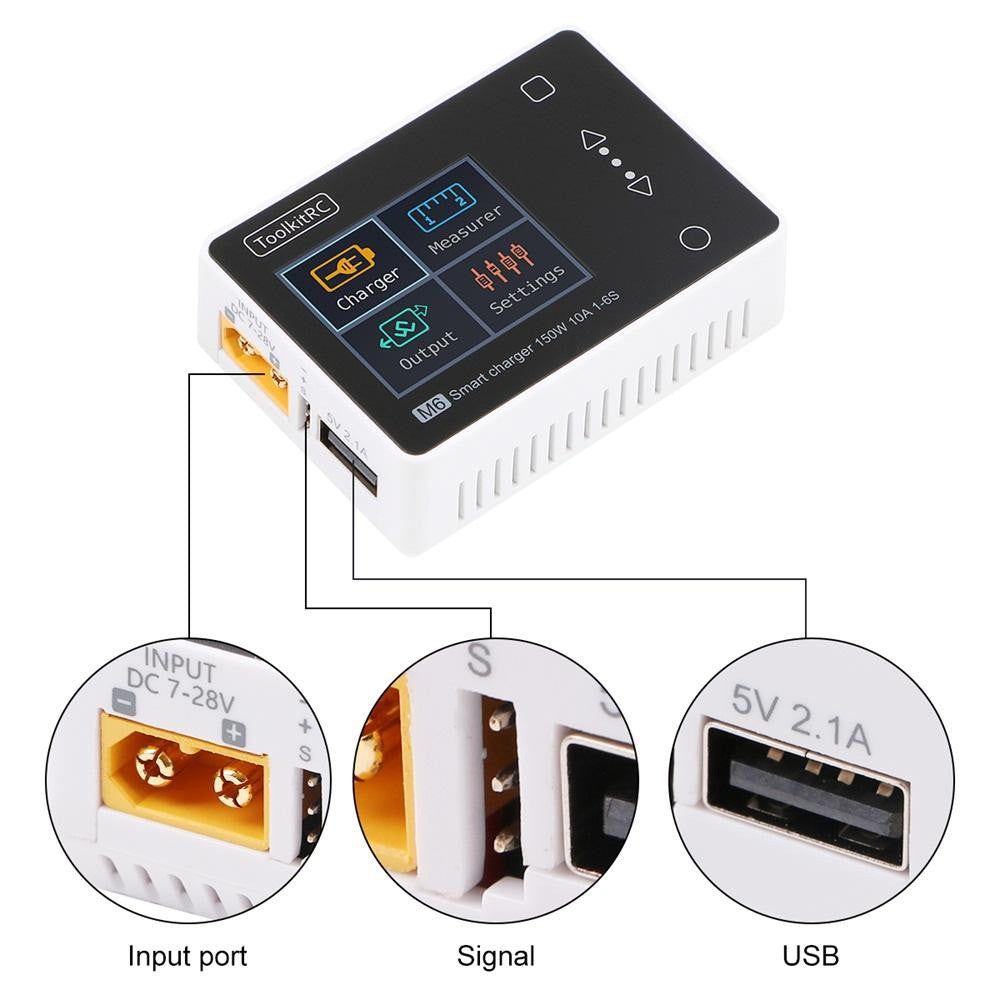

  • Input voltage: 7.0-28V
  • Type of battery: Lipo, LiHV, LiFe, Lion @ 1-6S, NiMh @ 1-16S, Pb @ 1-10S
  • Charge power: 150W / Up to 10A
  • Discharge power: Recycle Mode: 150W/ Up to 10A Normal Mode: 8W @ Up to 2A
  • USB: 2.1A @ 5.0V (Mobile Charging) or USB Firmware updating

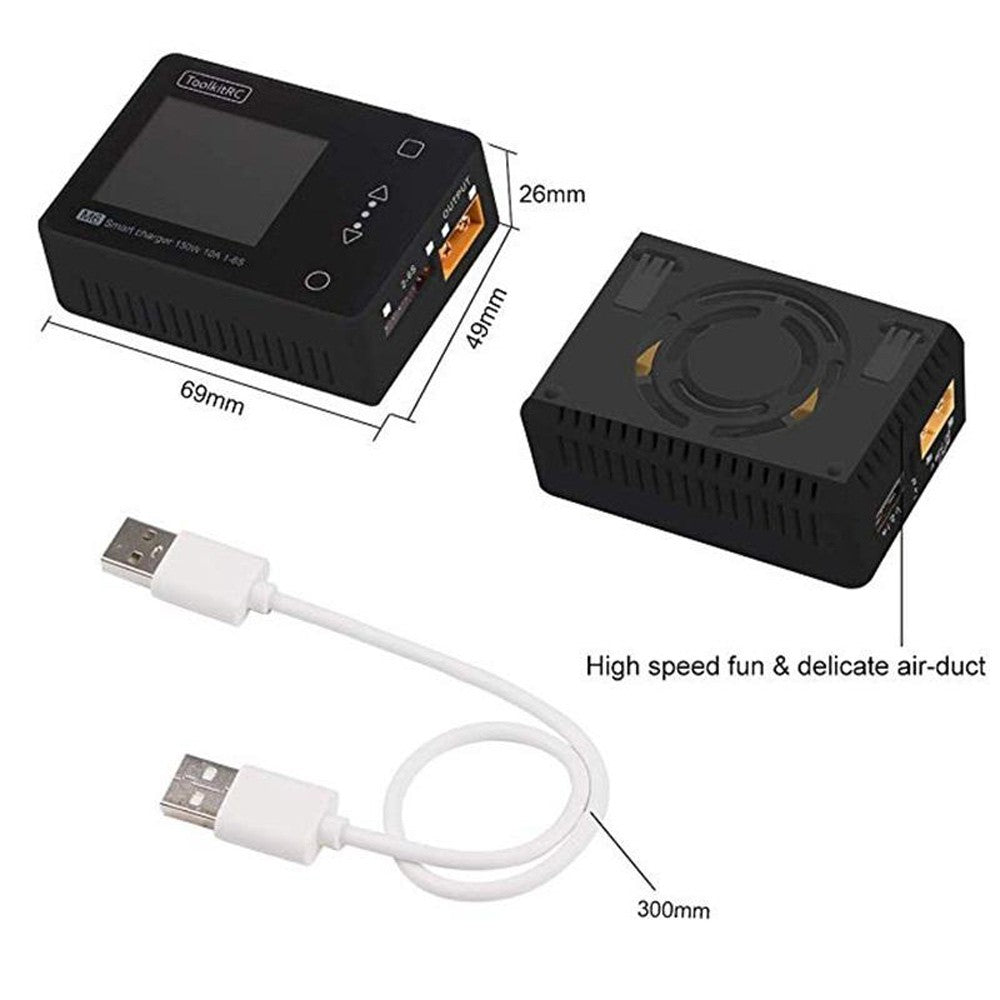

  • Dimensions: 68x49x26mm
  • Weight: 80g
  • LCD: 1.8inch TFT RGB, 160x128 Pixel

Measurement

  • PWM: 880-2200us @ 20-400Hz
  • PPM: 880-2200us*8CH @ 20-50Hz
  • SBUS: 880-2200us*16CH @ 20-100Hz
  • Voltage: 1.0-5.0V @ 1-6S
  • IR: 10-99mR @ 1-6S

Output

  • PWM: 500-2500us @ 20-1000Hz
  • PPM: 880-2200us*8CH @ 50Hz
  • SBUS: 880-2200us*16CH @ 74Hz
  • Power: 1-10A @ 1-28V Mode:CC+CV

User Manual & Firmware

IMPORTANT! PLEASE NOTE: This charger does not have an AC power supply, so will not plug into the wall. You will need to purchase AC/DC power supply seperately. Can also be used with a lipo, car or truck battery for input power.

Error Codes

  1. over current
  2. overvoltage
  3. over temperature
  4. timeout
  5. battery is invalid
  6. input low
  7. input is too high
  8. balance is complete
  9. is not connected to the balance port
  10. not connected to the main port
  11. timeout
  12. types do not match
  13. cells error
  14. battery needs to be balanced
  15. This mode is not rechargeable
