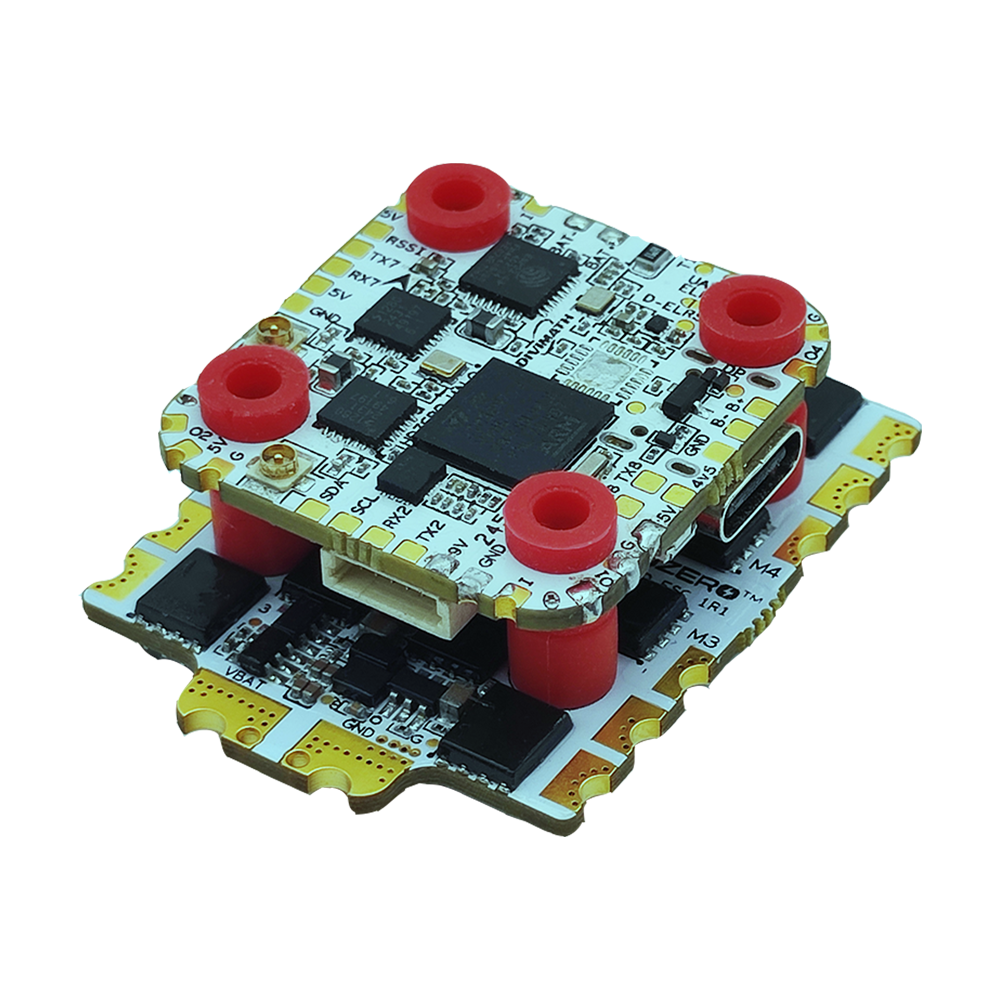

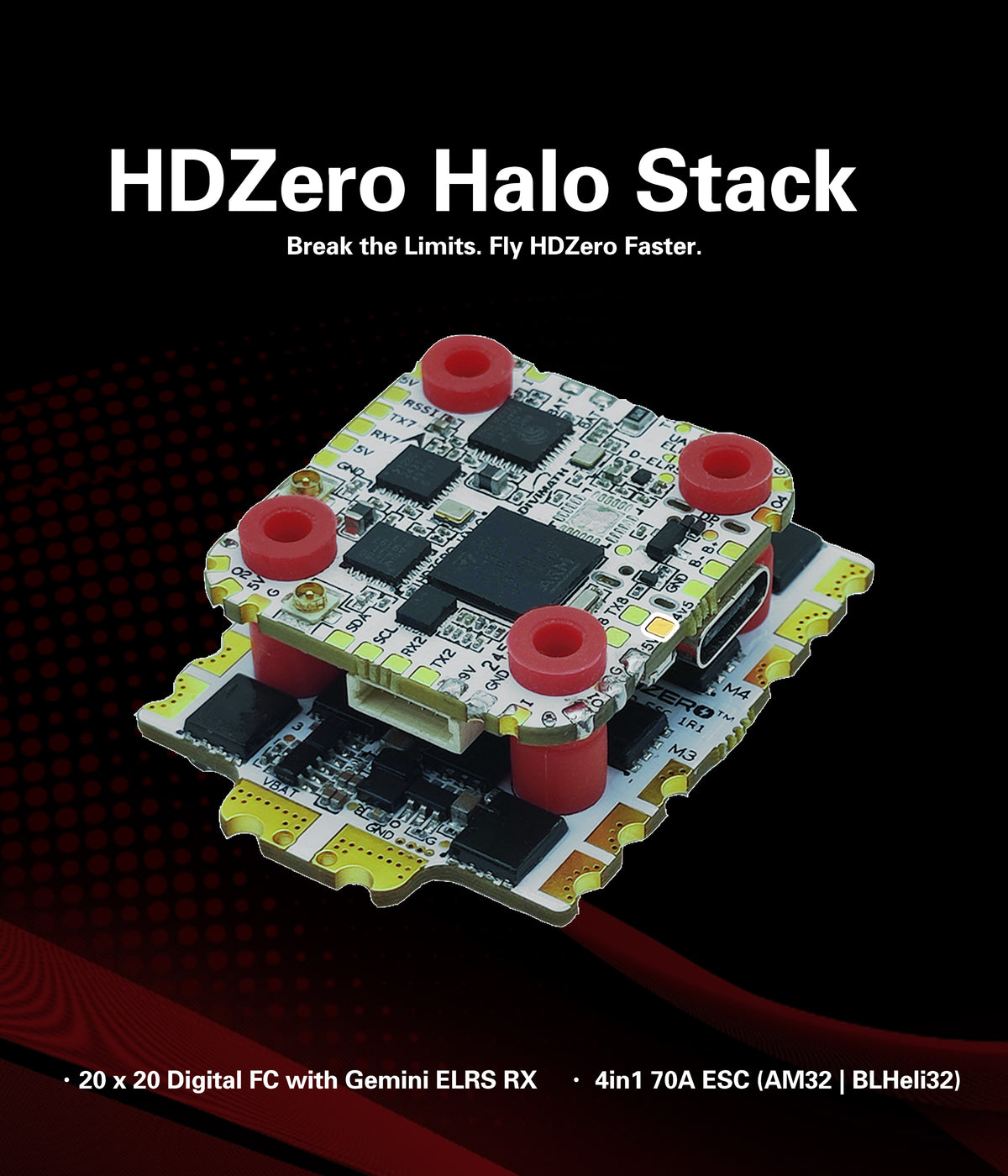

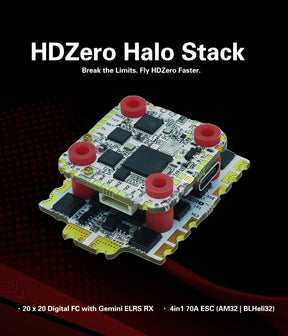

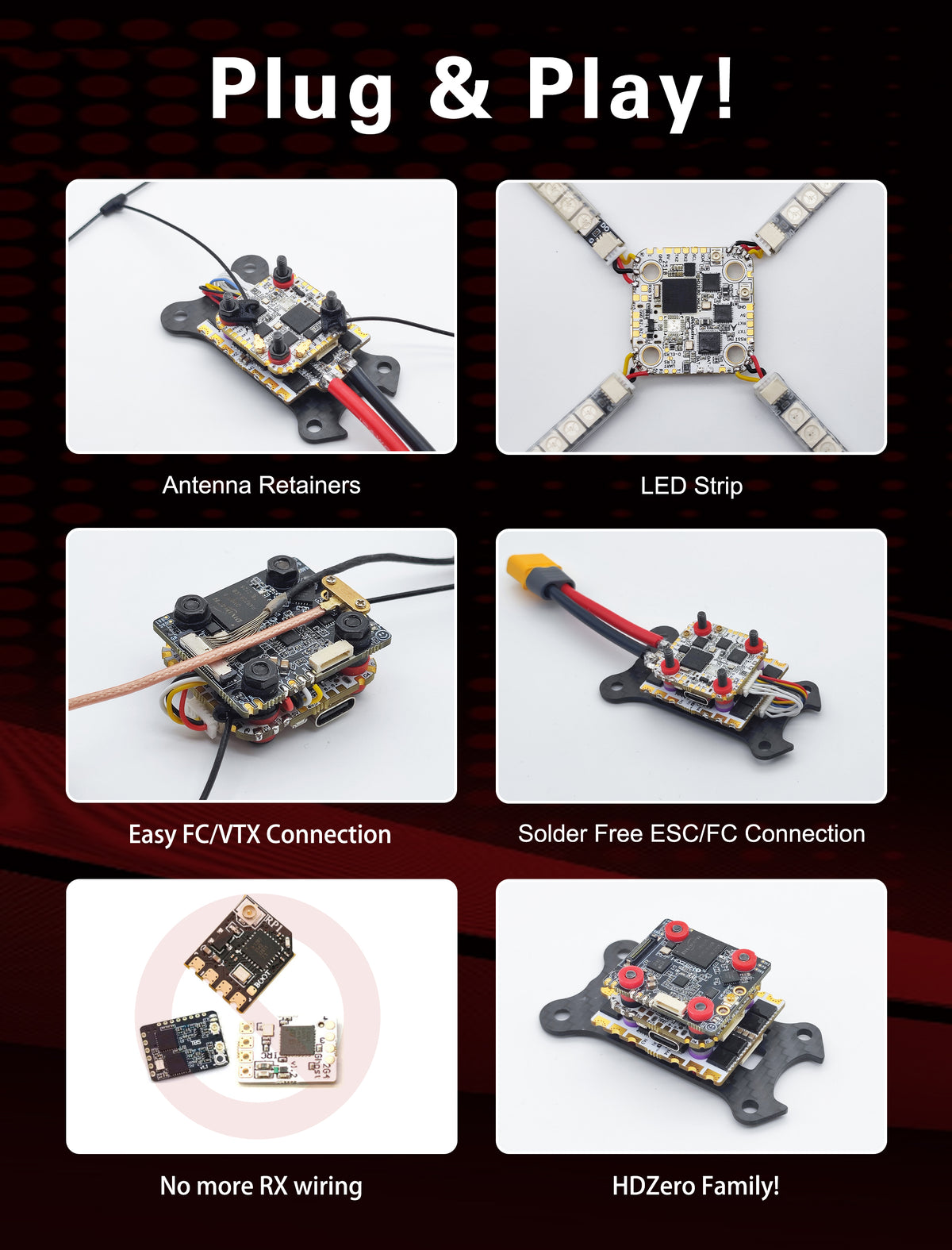

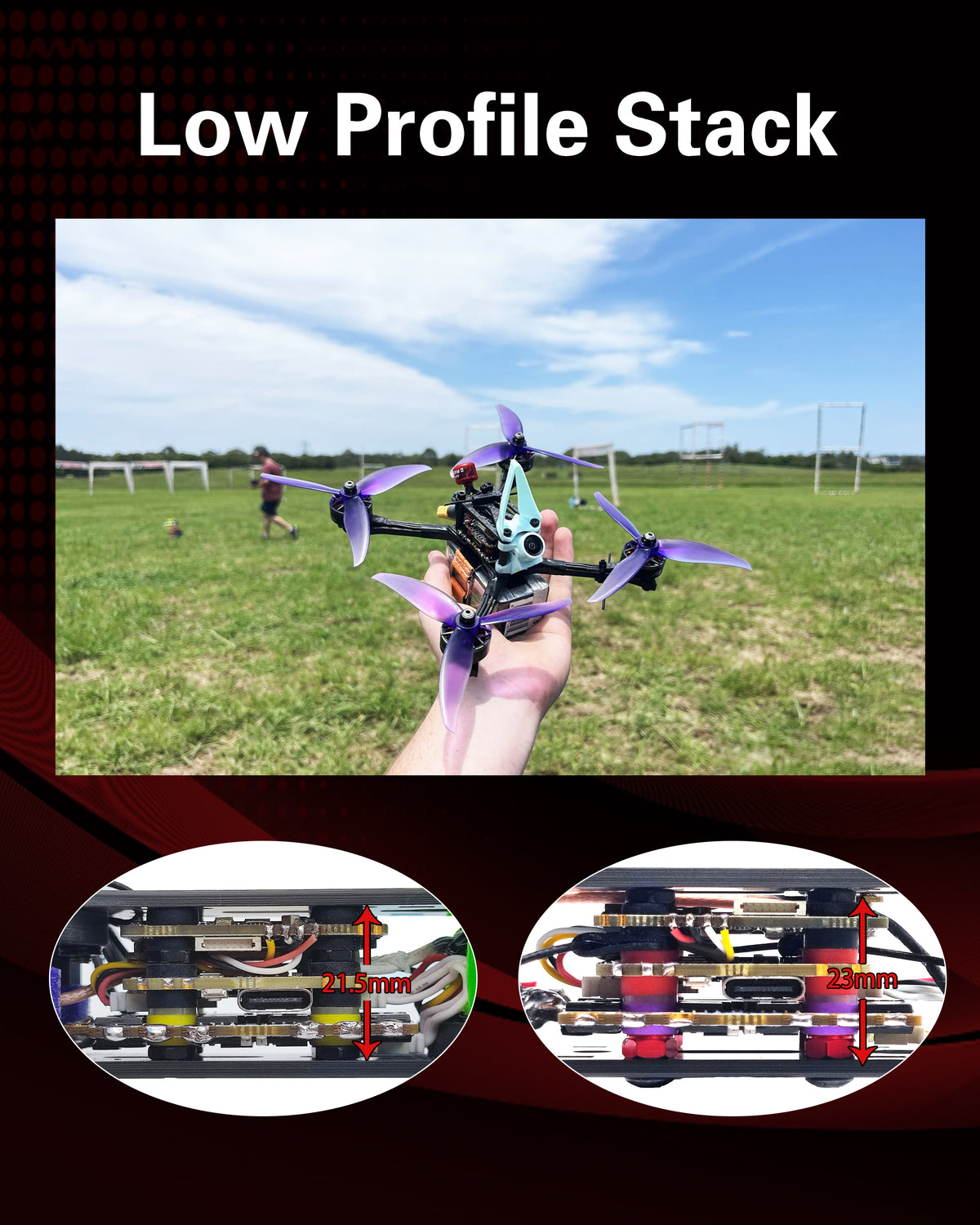

HDZero Halo Flight Controller and 4in1 70A ESC

The HDZero Halo Stack features the Halo Flight Controller paired with the Halo ESC. It has 4 variations:

Halo Flight Controller (MPU6000) + Halo ESC (AM32)
Halo Flight Controller (ICM42688) + Halo ESC (AM32)
Halo Flight Controller (MPU6000) + Halo ESC (BLHeLi32)
Halo Flight Controller (ICM42688) + Halo ESC (BLHeLi32)

Building a complete HDZero digital FPV system? Connect the Halo Stack to a compatible HDZero VTX and camera, then view the video feed through the HDZero FPV Goggles 2.

Specifications.

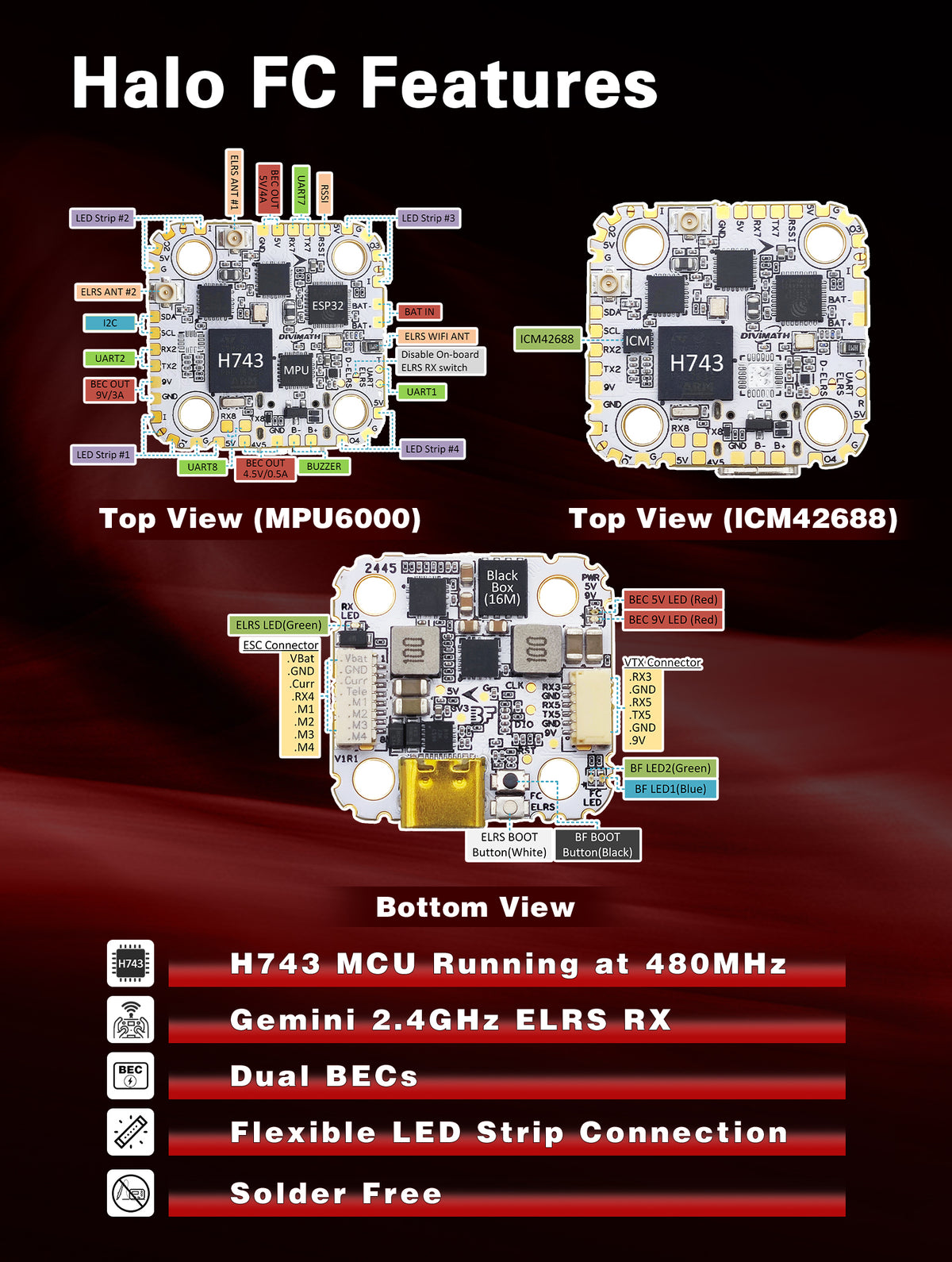

Flight Controller

• Model HDZero Halo Flight Controller
• CPU STM32H743 (480MHz)
• Gyro MPU6000 or ICM42688
• BEC output DC 5V/4A DC 9V/3A DC 4.5V/0.5A
• Black Box 16MB Flash memory
• I2C Pads Yes
• UART Pads TX2/RX2, TX7/RX7, TX8/RX8
• ESC Telemetry RX4
• VTX MSP UART TX5/RX5
• DJI HDL RX3
• Buzzer Pads Yes
• LED Strip Parallel or Serial
• USB Type-C
• Analog OSD No
• FC Firmware Betaflight: HDZERO_HALO

ELRS Receiver

• Chip Set ESP32 + 2x SX1280
• FC UART TX1/RX1
• Gemini RX Yes
• RF Frequency 2.4GHz
• Max TX RF Power 10mW
• Antenna Interface 2xU.FL
• ELRS Firmware HDZero Halo FC 2.4G Gemini RX

Dimensions

• Power Supply3S ~ 8S
• Size 29x30.5mm with 20x20 M4 mounting holes
• Weight 5.6g
• Dedicated sockets for ESC, HDZero and other Digital VTX’s

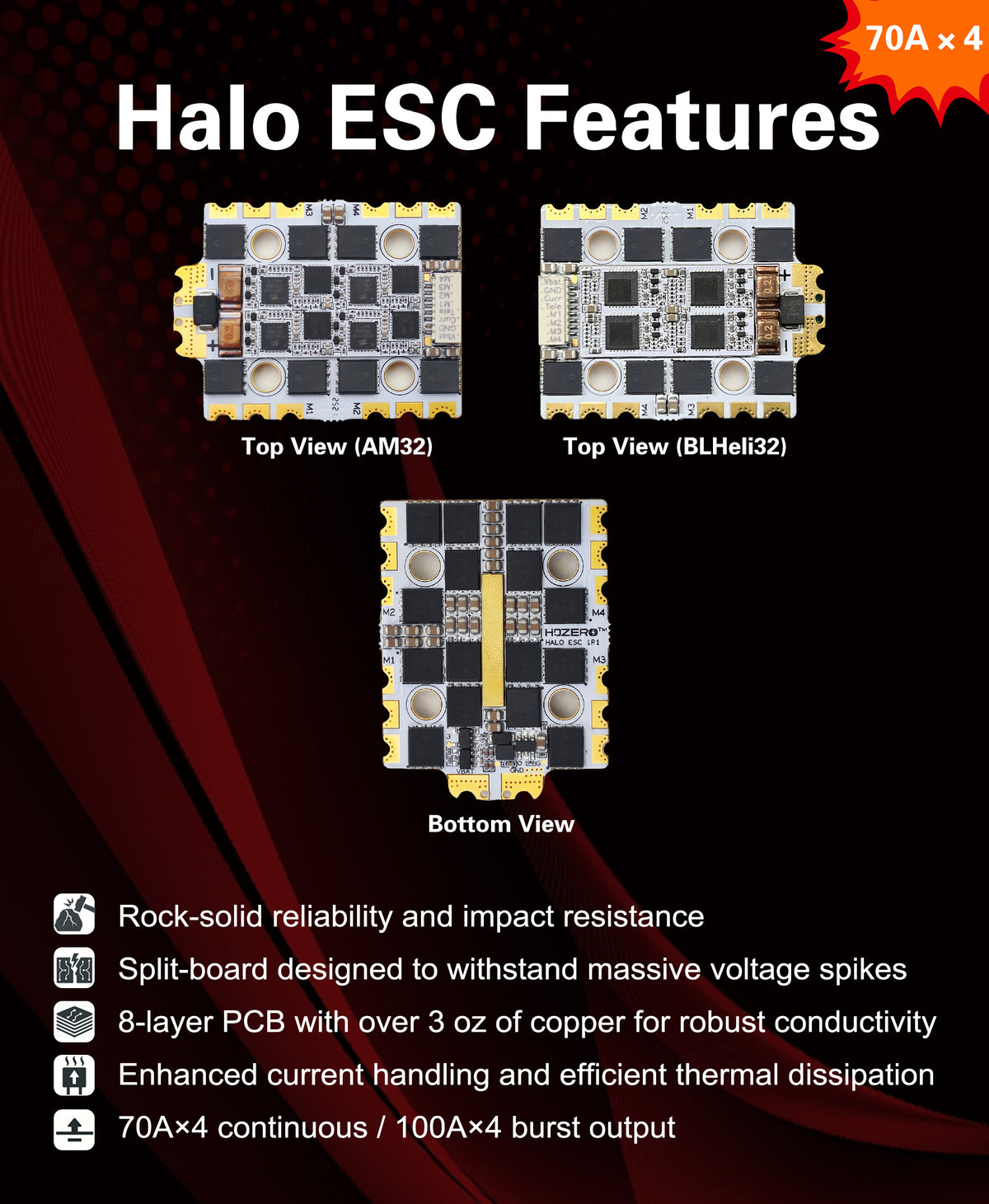

Halo ESC

Specifications.

• Model HDZero Halo 4in1 70A ESC

• CPU AT32F421 (120MHz)

• Firmware BLHeli 32.10 AM32 2.18

• Target: HDZ_ESC_1R0_F421

• Input Voltage DC 9V – 40V (3S – 8S)

• Telemetry Supported

• Input signal Dshot 150/300/600/1200, MultiShot, OneShot

• Output Voltage VBAT (to power the FC)

• Max Current Over 70Ax4 (Continuous) / 100Ax4 (Burst)

• Current Sensor Scale = 400, offset = 0

• Dual-sided solder pads YES

• Dimension 33x43mm

• Mounting 20x20mm, Φ4mm/M6

• Weight 13.4g

Includes

• 1x HDZero Halo FC
• 1x HDZero Halo ESC
• 1x ESC cable (8-pin SH1.0, 30mm)
• 1x XT60 cable (70mm,12AWG)
• 1x 35V/1000uf capacitor
• 9x Rubber grommet (4.5mm height)
• 6x Rubber grommet (6.6mm height)
• 5x Nylon washer (M3 1.0mm thick)
• 5x 304 Steel nuts (M3 2.3mm thick)
• 4x 12.9 Carbon steel screws (M3 25mm length)
• 1x ELRS T-sharp short antenna (40mm)
• 1x ELRS T-sharp long antenna (90mm)
• 2x ELRS Antenna retainers
