TRUERC X²-AIR 5.8 MK II Pair for Walksnail Goggles X

TrueRCSKU: X2-AIR-GOGX-PAIR-LHCP

Polarization: LHCP
Option: X²-AIR Pair Only
Precio:
Precio de venta$117

Impuestos incluidos Gastos de envío calculados en la caja

Stock:
Disponibles (2 unidades), listas para ser enviadas

Descripción

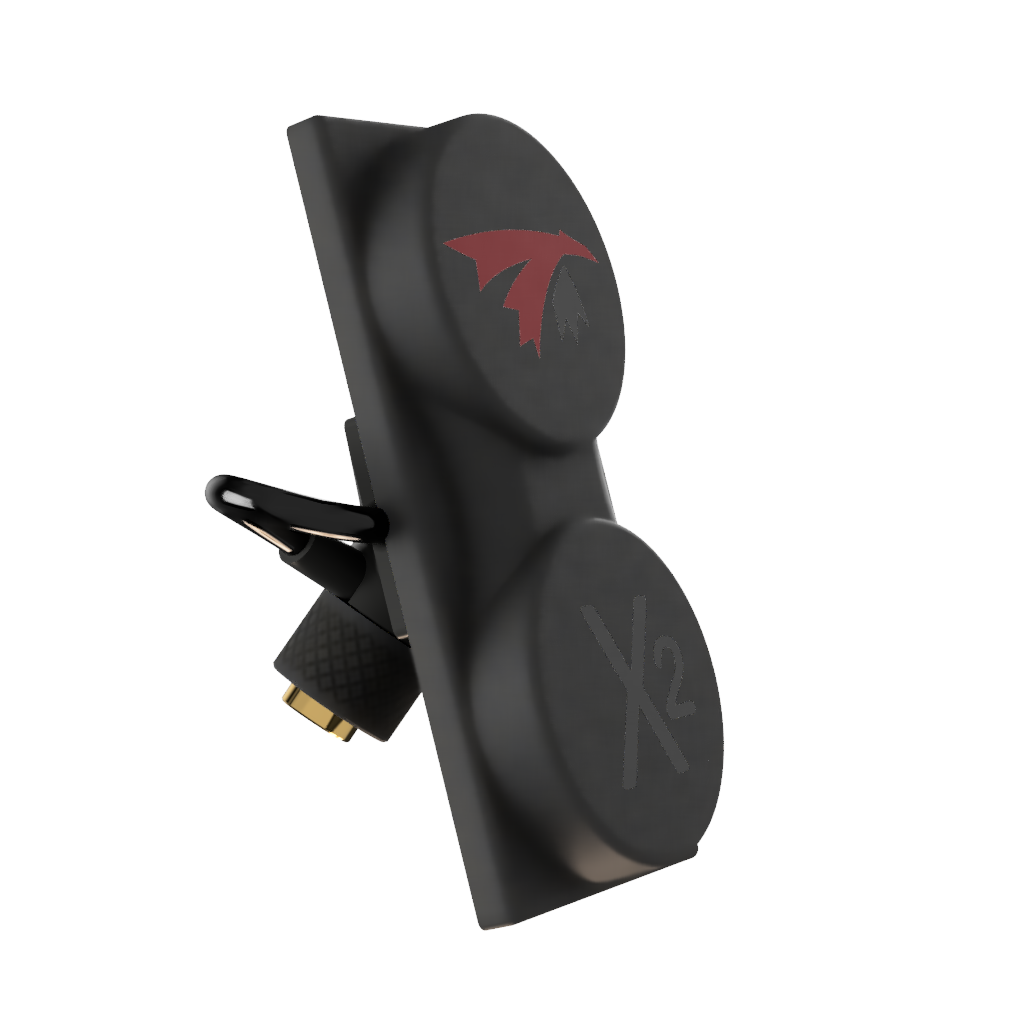

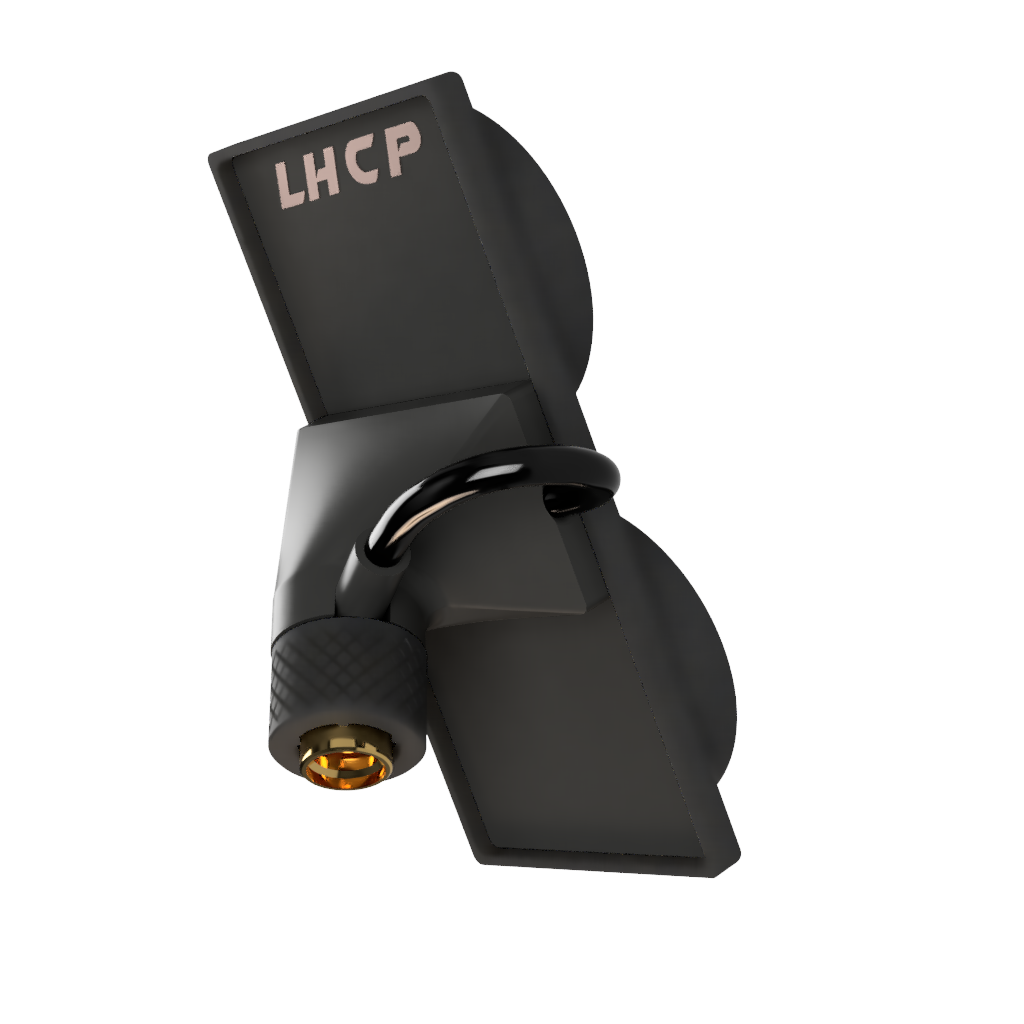

Our high efficiency X²-AIR MK II with direct angled RP-SMA connectors for installing on the Walksnail avatar HD goggles X. Simply screw on the custom angled RP-SMA connectors on the top ports of the goggles. Great 13dBic gain combined with a healthy flyable beam width of 150 deg, yield an amazing long range performances. Fill the remaining ports with singularity stubby and you got the antennas full house.

Custom made RP-SMA connectors, direct fit for your goggles.

As with all other components of X-AIR antennas, the custom RP-SMA connector is made to fit your Walksnail avatar HD goggles X without adapter and make sure they end up facing forward with little uptilt for good measure.

Paired them with our ever popular singularity stubby.

A pair of singularity stubby antennas can be included as a combo for the ultimate in performances and convenience!



Features

  • Circularly Polarized
  • Mount direct on Walksnail avatar or Fat Shark dominator
  • Sector type beam shape (widest on horizontal)
  • High 13 dBic for unsurpassed long range and signal penetration
  • Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
  • Super wide 150 degree Sector type beam (widest on horizontal)
  • Custom RP-SMA connectors with compound angle to have the X²-air antenna face forward



Specs

  • Bandwidth: 5.1GHz-7.0GHz
  • Gain: 13 dBic
  • Polarization: LHCP or RHCP
  • Beam-width Horizontal*: 150deg
  • Beam-width Vertical*: 62deg
  • Hor. beam @-3dB**: 75deg.
  • Vert. beam @-3dB**: 34deg.
  • Connector: Custom knurled RP-SMA
  • Dimension: 72mm x 34mm x 34mm



*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.



Includes:

  • Two X²-air MKII antennas.
  • Two singularity stubby (optional).
