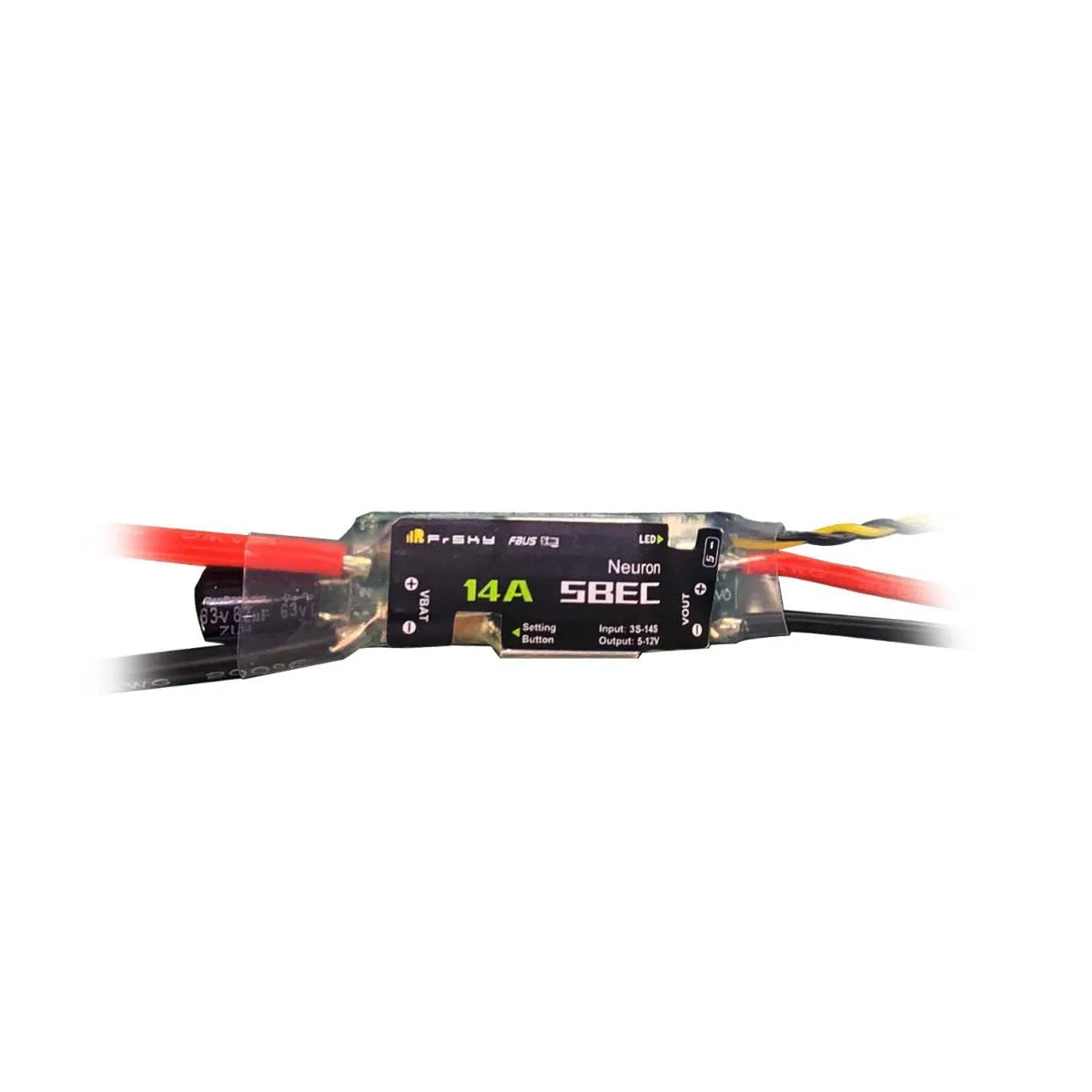

FrSky Neuron 14A SBEC

The Neuron 14A SBEC offers users with a safe and efficient way to power the system with your power source connected. A built-in high-quality BEC unit, its design allows the voltage output port to be configured to supply 5V to 12V either by using the Press setting button on board, or alternatively by Lua script (on ETHOS) to quickly switch between the different voltages. The Neuron 14A SBEC can work under a maximum of 14A current loads, this also benefits from its heat-sink dissipation design.

Features

• Configurable BEC Voltage Outputs
• Multiple Preset Voltage Modes Fast Switching (by Setting Button – 4 Modes: 5.0V / 7.4V / 8.4V / 12V )
• Fin Heat Dissipation Design
• Capable of Working under Maximum 14A Current Loads
• Working Status LED Indicator
• Compatible with FBUS/S.Port protocol

Specifications

• Size: 43.3×15.5×13.5mm (L×W×H)
• Weight: 14.4g
• Adjustable Output Voltage: 5.0~12V
  – Preset voltage modes by using setting button: 5.0V / 7.4V / 8.4V / 12V
  – 0.1V step increment by configuring on ETHOS tool.
• Peak Current: 14A (dependent upon input and output voltage)
• Default Output Voltage Setting (adjustable): 5.0V
