Luminier | SKU:
LUMLEDB
Agotado
47 % de descuento

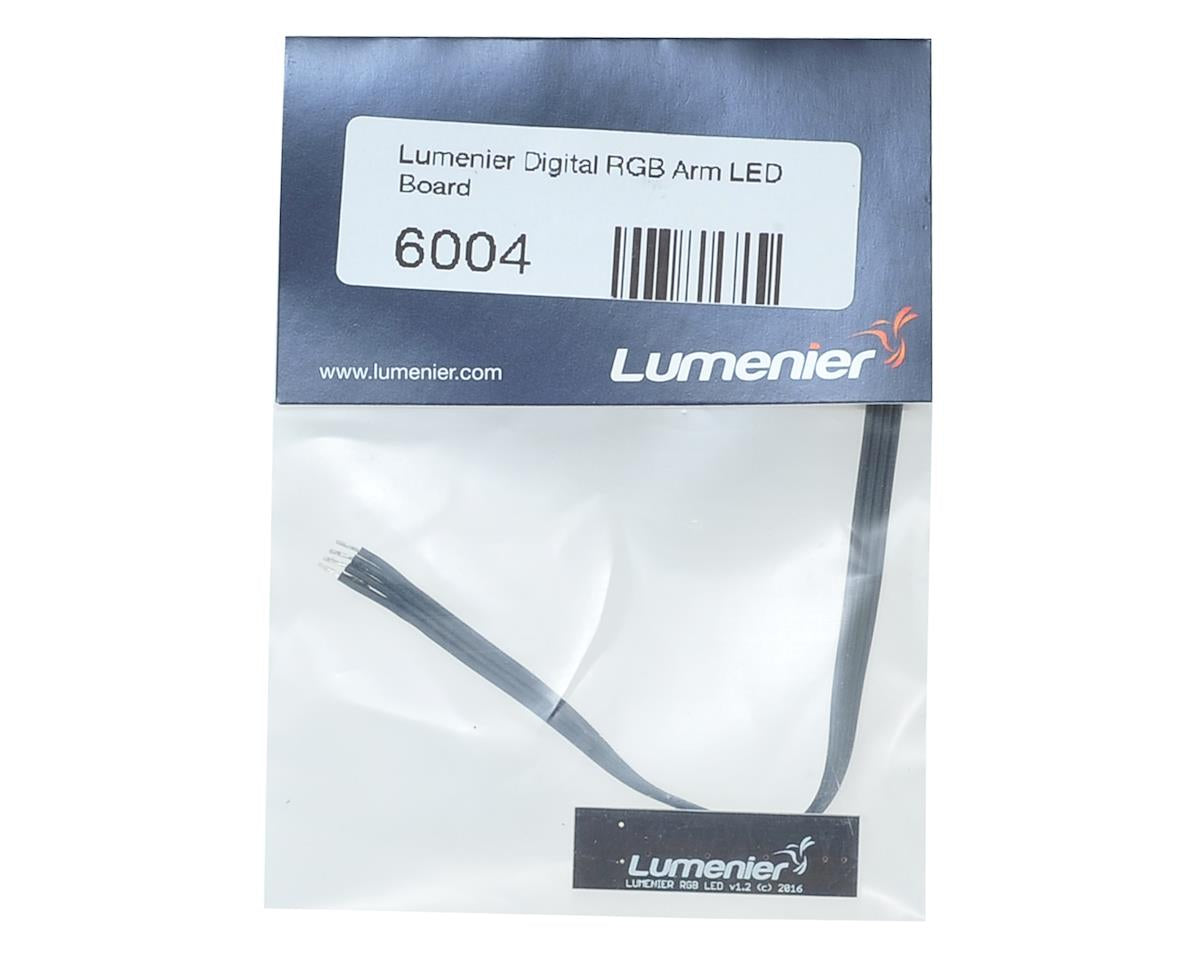

Lumenier Digital RGB Arm LED Board (4 Pack)
Precio de venta
$8.00
Precio normal
$15.00
Precio unitario
Impuestos incluidos.
Los gastos de envío se calcularán al momento de pagar.
Lumenier Digital RGB Arm LED Board (4 Pack) está agotado y se enviará tan pronto como vuelva a estar disponible.
Luminier | SKU:
LUMLEDB
Precio de venta
$8.00
Precio normal
$15.00
Precio unitario
Impuestos incluidos.
Los gastos de envío se calcularán al momento de pagar.
Lumenier Digital RGB Arm LED Board (4 Pack) está agotado y se enviará tan pronto como vuelva a estar disponible.
Descripción
Descripción

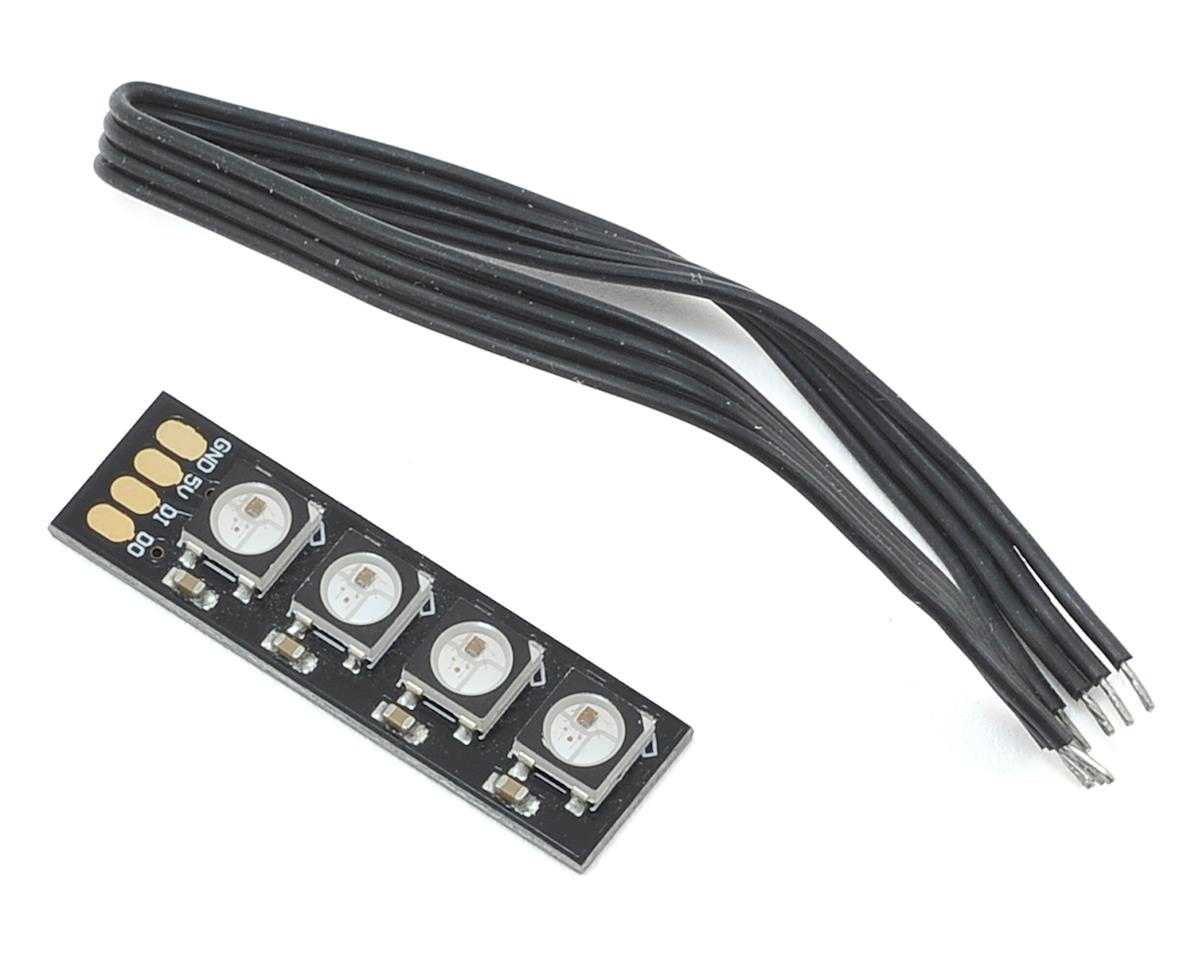

The Lumenier Digital RBG Arm LED board is a universal addressible array of RBG LEDs. The board has 4 super bright RGB LEDs installed that can work directly with the Lumenier RGB LED Tail or to a flight controller with Cleanflight LED control software. The LEDs need 5v, ground and a signal source in order to work.
The Layout of the PCB board keeps wiring clean and neat with input and output pads on the same end of the board. This way each arm on your aircraft can have a LED board with the wiring pointing to the middle.
Specifications:
The Layout of the PCB board keeps wiring clean and neat with input and output pads on the same end of the board. This way each arm on your aircraft can have a LED board with the wiring pointing to the middle.
Specifications:
- Length: 32mm
- Width: 10mm
- Weight: 1g
- Input Voltage: 5v (over 5v will burn the LEDs)
- Current Draw: 60mA to 160mA depending on LED color.
- 1mm thick PCB, 1.75mm including LEDs
- Input and Ouput signal pads on the same end for clean wiring

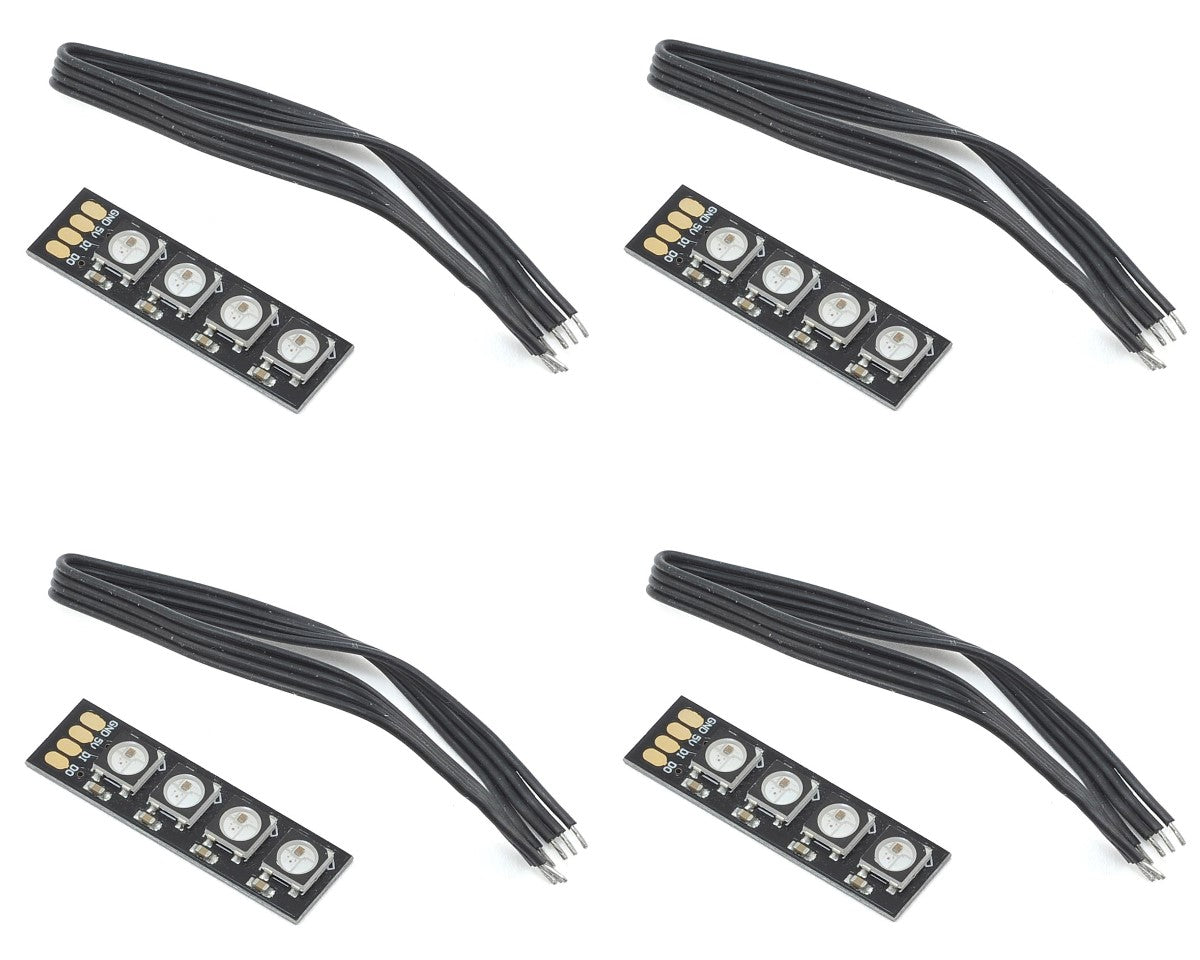

- (4) Lumenier Digital RGB Arm LED boards
