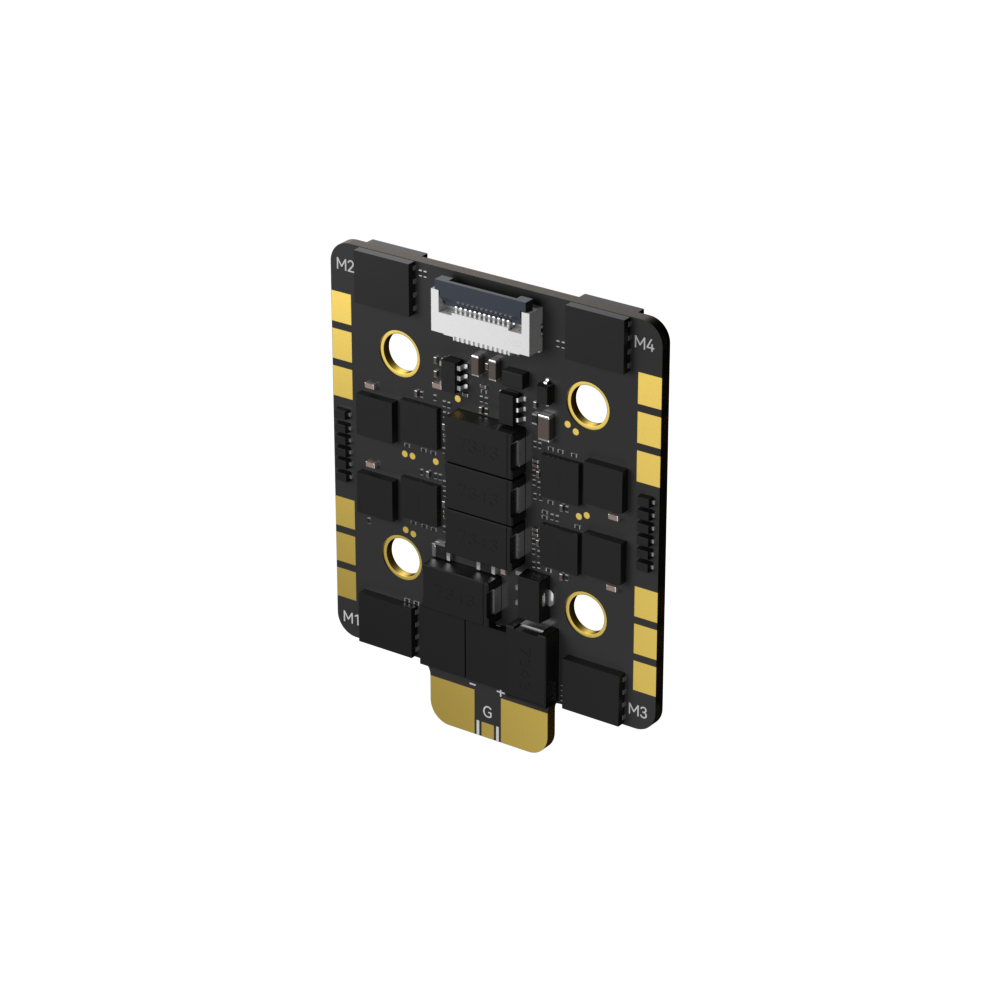

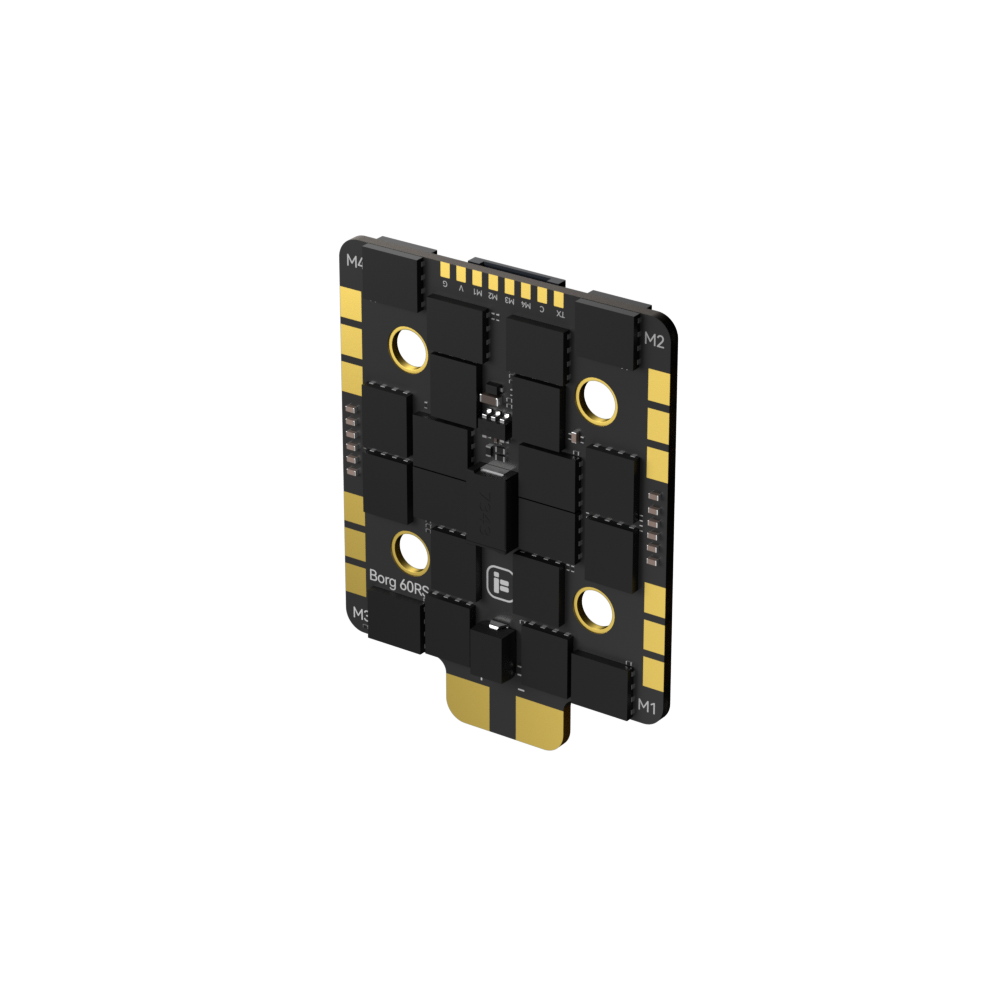

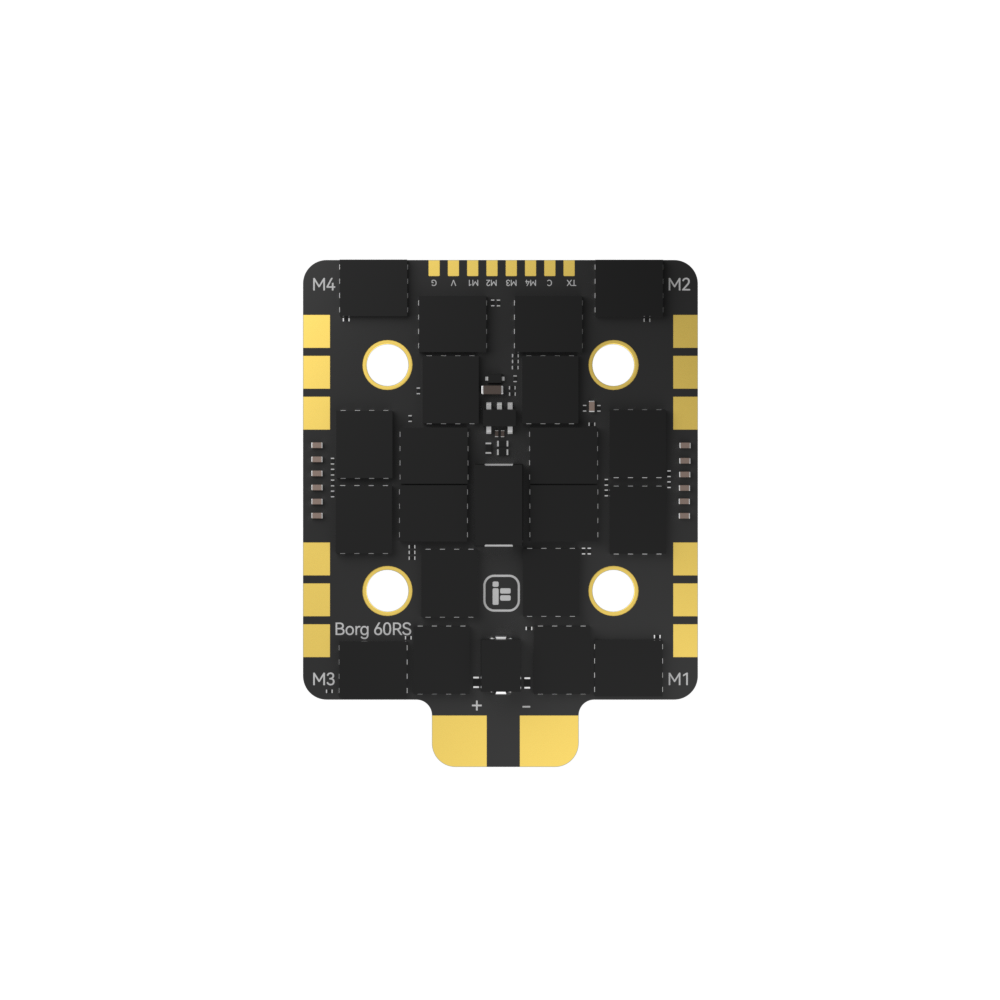

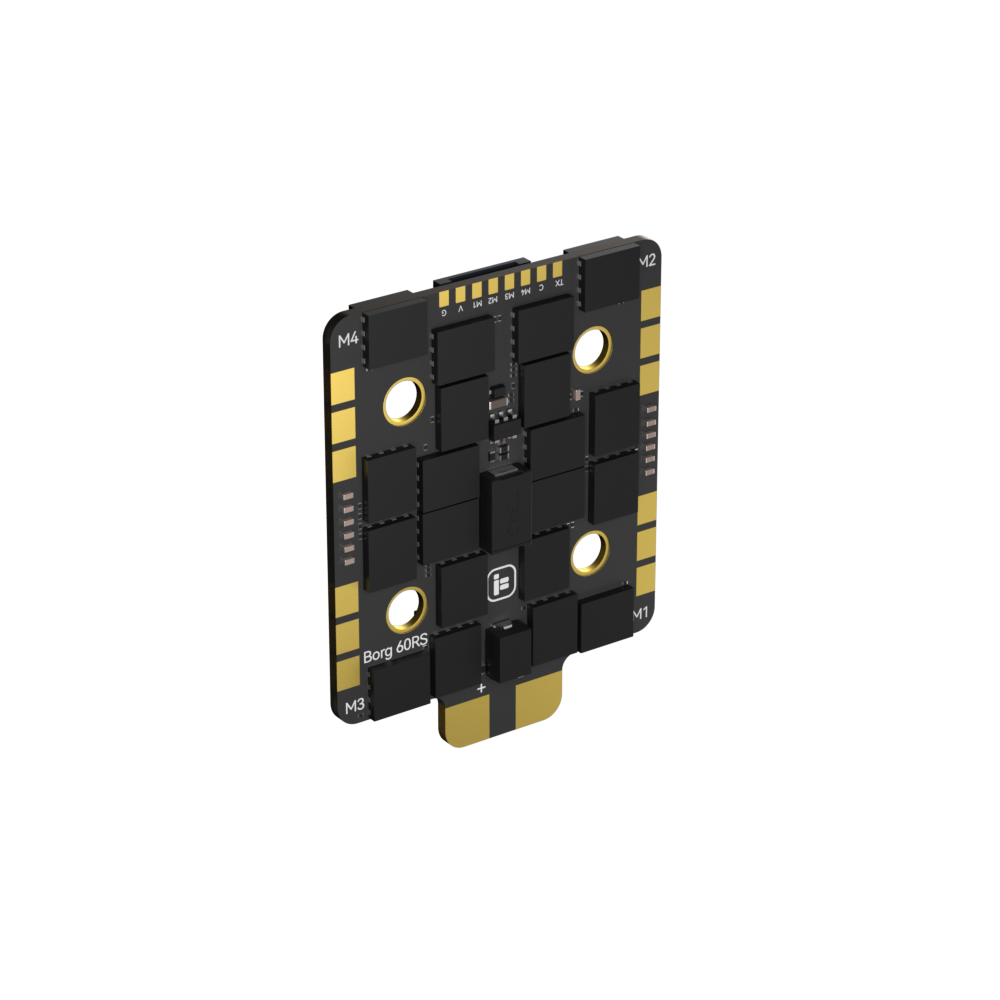

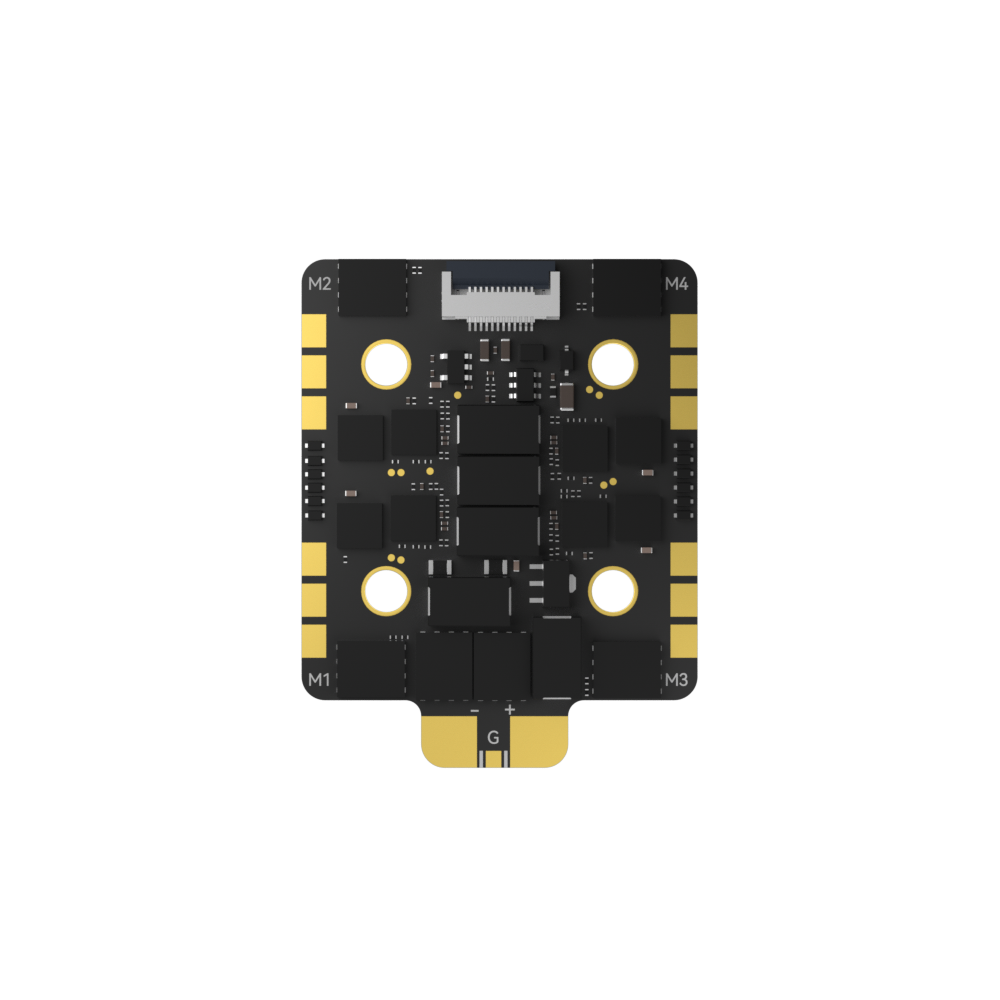

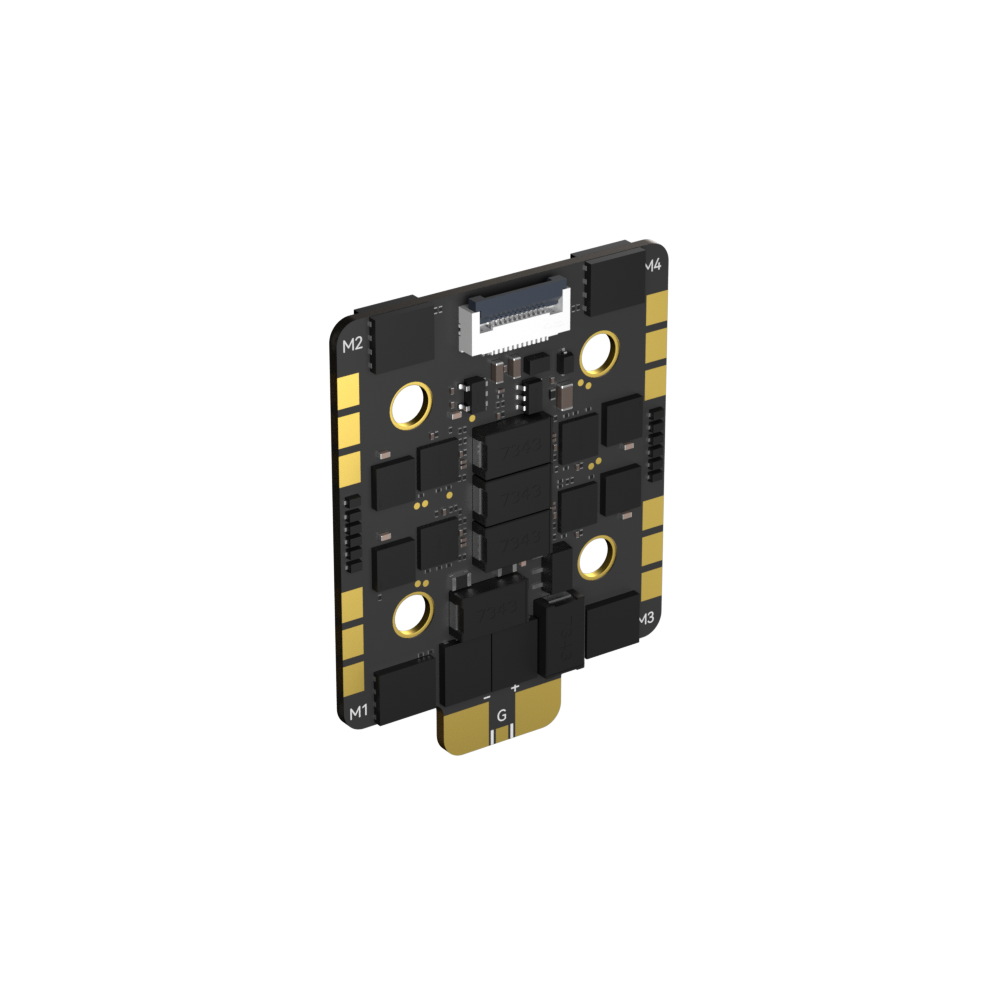

iFlight Borg 60RS 20x20 60A ESC

Introducing the All-New Borg Series – Power Meets Precision!

The new ESCs feature an integrated anti-spark filter, providing protection against voltage spikes that can damage your equipment. Designed with high polymer capacitors, this ESC eliminates the need for external capacitors in 5-inch racing models, simplifying installation and reducing weight. Experience enhanced reliability and performance with this cutting-edge technology, tailored for the demands of competitive racing.

• Support 4- 8S Battery Input for versatile power options.
• 8-Layer 3OZ PCB allows for continuous current handling of 60A, with a peak current of 65A.
• Integrated Anti-Spark Filter protects your equipment from voltage spikes.
• Built-in High Polymer Capacitors eliminate the need for external capacitors in racing models.
• FPC Ribbon Cable Connection ensures a more reliable link between the flight controller and ESC.

• Product Name: Borg 60RS ESC
• Input Voltage: 4-8S; Support LIHV battery
• Max. Continuous Current: 60A
• Max. Burst Current: 65A (10s)
• MCU: STM32G071N
• Driver: FD6288
• Firmware: BL32 (32bit ESC)
• Target: IFLIGHT_BLITZ_G3 32.9
• Current Sensor: No
• BEC: No
• Telemetry: Supported
• Bidirectional DSHOT: Supported
• Dimensions: 45*35mm±1
• Mounting Holes: 20 x20 mm/Φ4mm
• Weight: 9.5g±1
• Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

• 1 x Borg 60RS ESC
• 1 x Cables set
• 4 x silicon grommets

Wiring Diagram
