If you're building your first FPV drone, you'll quickly come across the term ESC.
But what exactly does it do?
The Electronic Speed Controller (ESC) is responsible for controlling the speed, direction and power delivered to each motor. Without it, your drone simply wouldn't fly.
Whether you're building a freestyle quad, racing drone or cinematic FPV rig, choosing a quality ESC is critical for performance and reliability.
In this guide, we'll explain how FPV ESCs work, why they're important and what to look for when choosing one.
What Is an ESC?
An Electronic Speed Controller (ESC) is a circuit board that regulates power between the battery and the motors.
The flight controller sends commands to the ESC, which then adjusts the speed of each individual motor hundreds of times every second.
This allows your drone to:
- Hover
- Accelerate
- Brake
- Roll
- Pitch
- Yaw
Every smooth movement in flight relies on the ESC responding accurately and almost instantly.
How Does an ESC Work?
The process happens incredibly quickly.
- You move the sticks on your radio.
- The receiver sends the signal to the flight controller.
- The flight controller calculates the required motor speeds.
- The ESC delivers the correct amount of power to each motor.
- The drone responds instantly.
Modern ESCs update motor outputs thousands of times per second, resulting in precise control and a smooth flying experience.
Why Is the ESC So Important?
The ESC directly affects how your drone feels in the air.
A high-quality ESC provides:
✓ Smooth throttle response
✓ Reliable power delivery
✓ Better motor efficiency
✓ Reduced electrical noise
✓ Greater reliability
Poor-quality ESCs can lead to:
- Desyncs
- Motor stuttering
- Overheating
- Reduced flight performance
- Component failure
For this reason, the ESC is one of the most important parts of any FPV build.
What Does ESC Current Rating Mean?
ESCs are rated by the maximum current they can safely deliver.
For example:
- 35A ESC
- 45A ESC
- 55A ESC
- 65A ESC
A higher current rating allows the ESC to handle more powerful motors and larger propellers without overheating.
For modern 5-inch freestyle builds, a 55A ESC provides excellent headroom for both 4S and 6S batteries.
4-in-1 ESC vs Individual ESCs
There are two common ESC configurations.
4-in-1 ESC
One circuit board controls all four motors.
Benefits include:
- Cleaner builds
- Lower weight
- Easier installation
- Reduced wiring
This has become the standard for modern FPV drones.
Individual ESCs
Each motor has its own ESC mounted on the arm.
Benefits include:
- Easy replacement after crashes
- Popular on very large aircraft
For most pilots, a 4-in-1 ESC is the preferred choice.
Why the SpeedyBee F405 V5 Is a Great Choice

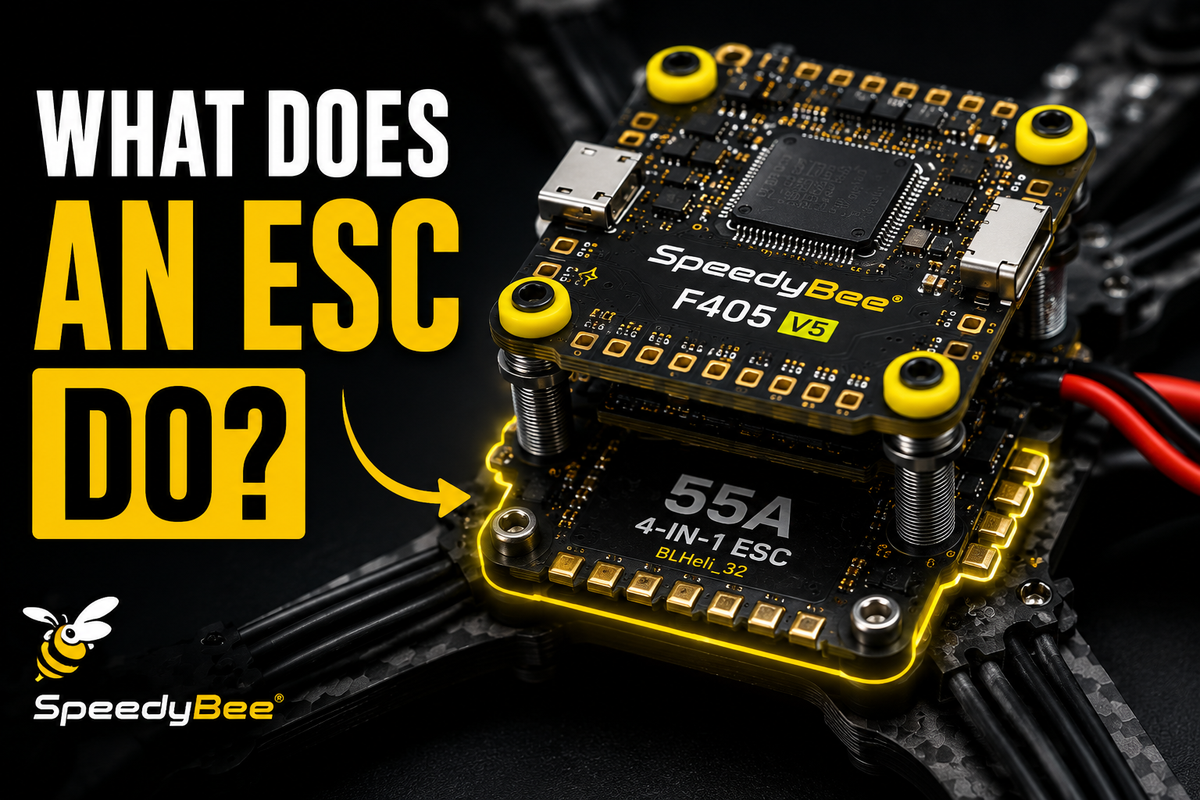

The SpeedyBee F405 V5 OX32 55A Stack combines a modern F405 flight controller with a powerful 55A 4-in-1 ESC.
Key features include:
- 55A continuous current
- BLHeli_32 firmware
- USB-C connectivity
- Bluetooth configuration
- Betaflight compatibility
- Support for both 4S and 6S batteries
The integrated stack design makes installation straightforward while delivering excellent reliability for beginner and experienced pilots alike.
Choosing the Right ESC
When selecting an ESC, consider:
Current Rating
Choose an ESC that comfortably exceeds the expected current draw of your motors.
Battery Voltage
Ensure compatibility with:
- 4S
- 6S
- Higher voltages where applicable
ESC Firmware Explained
The hardware inside an ESC is only part of the story. The firmware running on it determines how the motors respond, how settings are configured, and which tuning features are available.
Today you'll commonly come across four firmware options:
BLHeli_S
A long-standing 8-bit firmware found on many entry-level and older ESCs. It's reliable, but development has largely stopped.
Bluejay
An open-source replacement for BLHeli_S that adds modern features such as bidirectional DShot, improved motor performance and ongoing community support. It's a popular upgrade for compatible 8-bit ESCs.
BLHeli32
A 32-bit firmware that introduced advanced features and excellent performance for freestyle and racing drones. While many ESCs still ship with BLHeli32, it is no longer actively maintained or receiving firmware updates, so many manufacturers are now moving to newer alternatives.
AM32 / OX32
Modern open-source 32-bit firmware designed for today's FPV drones. These projects continue to evolve with active development, improved tuning options and support for the latest ESC hardware.
ESC Firmware Compared
|
Firmware |
Bit |
Status |
Best For |
|
BLHeli_S |
8-bit |
Legacy |
Older builds |
|
Bluejay |
8-bit |
Active |
Upgrading BLHeli_S ESCs |
|
BLHeli32 |
32-bit |
No longer actively maintained |
Existing 32-bit ESCs |
|
OX32 |
32-bit |
Active |
Modern freestyle & racing builds |
There isn't one "best" ESC firmware. Many existing FPV drones still fly perfectly on BLHeli32, while Bluejay has become the preferred choice for many BLHeli_S ESCs. For newer 32-bit ESCs, open-source firmware such as OX32 and AM32 is becoming increasingly popular thanks to ongoing development and modern features.
How do you configure an ESC?
Most modern ESC settings can be configured using dedicated firmware configurators.
Depending on your ESC firmware, you may use:
- ESC Configurator for Bluejay, BLHeli_S, BLHeli32 and compatible firmware
- Manufacturer-specific configuration tools where required
- Betaflight Configurator for related flight controller settings
For many modern FPV builds, ESC Configurator has become the easiest way to update firmware and adjust ESC settings.
Reference:
https://esc-configurator.com/
Build Quality
Look for:
- High-quality MOSFETs
- Efficient cooling
- Proven reliability
- Strong community support
Common ESC Problems
Most ESC issues result from installation mistakes rather than manufacturing faults.
Common problems include:
- Cold solder joints
- Incorrect motor wiring
- Overheating
- Water damage
- Physical crash damage
- Incorrect battery voltage
Using quality components and taking your time during assembly greatly reduces the chance of failure.
ESC vs Flight Controller
Although they work together, they perform very different roles.
|
Flight Controller |
ESC |
|
Processes pilot inputs |
Controls motor power |
|
Runs Betaflight |
Drives brushless motors |
|
Handles sensors |
Delivers battery current |
|
Controls flight logic |
Controls motor speed |
Think of it this way:
- Flight Controller = Brain
- ESC = Muscles
You need both for the drone to fly properly.
Building Your First FPV Drone
Understanding the ESC is only one part of the build process.
If you're planning your first FPV build, our complete guide explains every major component you'll need, from the frame and motors through to the receiver, VTX and battery.
Check out our article, How to Build Your First FPV Drone, to learn more.
Final Thoughts
The ESC is one of the most critical components in any FPV drone.
It controls how efficiently power reaches the motors, directly influencing throttle response, flight performance and overall reliability.
For most freestyle and beginner FPV builds, a modern 4-in-1 ESC offers the best combination of simplicity, durability and performance.
The SpeedyBee F405 V5 OX32 55A Stack combines a high-performance F405 flight controller with a robust 55A ESC, making it an excellent choice for pilots building their first quad or upgrading an existing setup.
Choosing a reliable ESC from the start will make your drone easier to tune, more dependable in the air and better equipped for future upgrades.
